Power Steering Pump Construction: Components

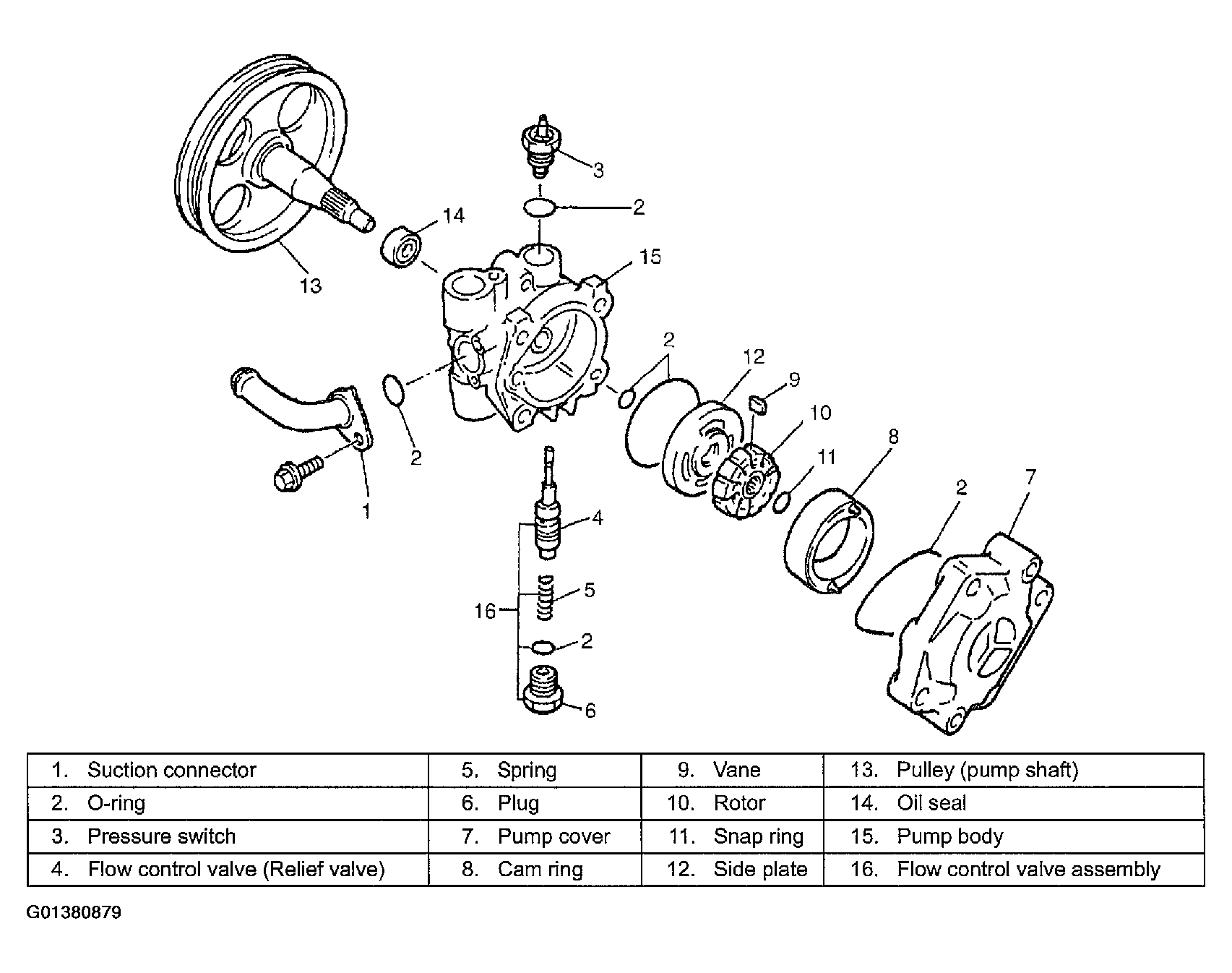

Fig 1: Exploded View Of Power Steering Pump

G01380879

Courtesy of SUZUKI OF AMERICA CORP.
