Cruise Control Actuator Cable

Remove cover from top of cruise control actuator located in engine compartment. Loosen lock nut on cruise control actuator cable. See Fig 1 . Position cruise control actuator lever in fully closed position. Adjust cruise control actuator cable to obtain .040-.080" (1.0-2.0 mm) cable free play. Tighten lock nut. Install cover.

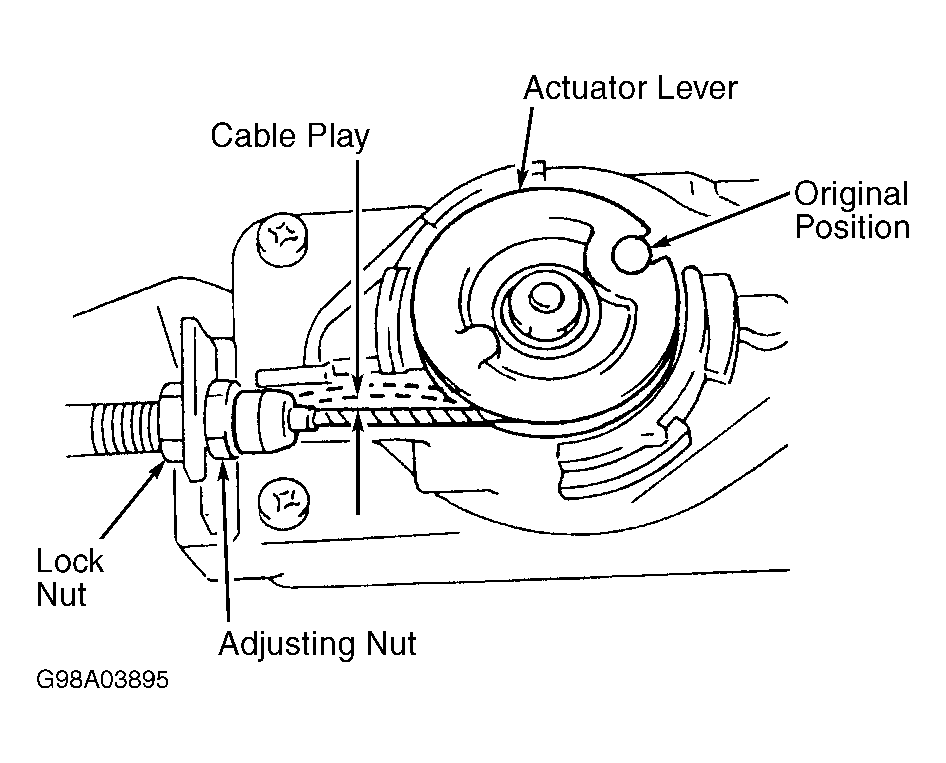

Fig 1: Adjusting Cruise Control Actuator Cable
G98A03895Courtesy of SUZUKI OF AMERICA CORP.
