Under-Hood Fuse/Relay Box
Under-Hood Fuse/Relay Box
NOTE:
Under-hood fuse/relay box is located in right side of engine compartment. See
Fig 1
.

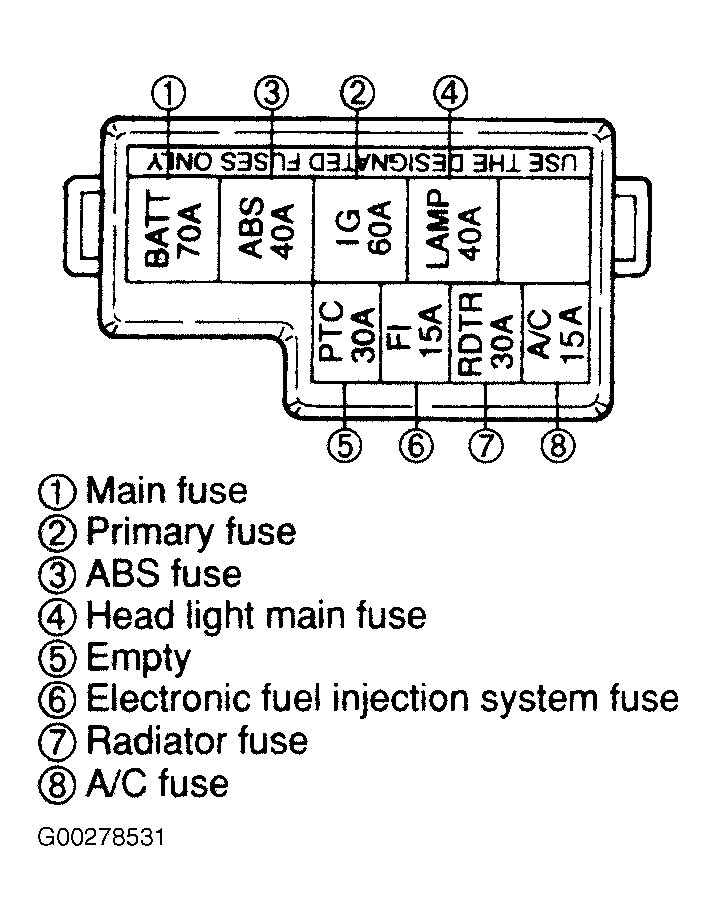

Fig 1: Locating & Identifying Under-Hood Fuse/Relay Box Components
Courtesy of SUZUKI OF AMERICA CORP.
