Vehicle Speed Sensor

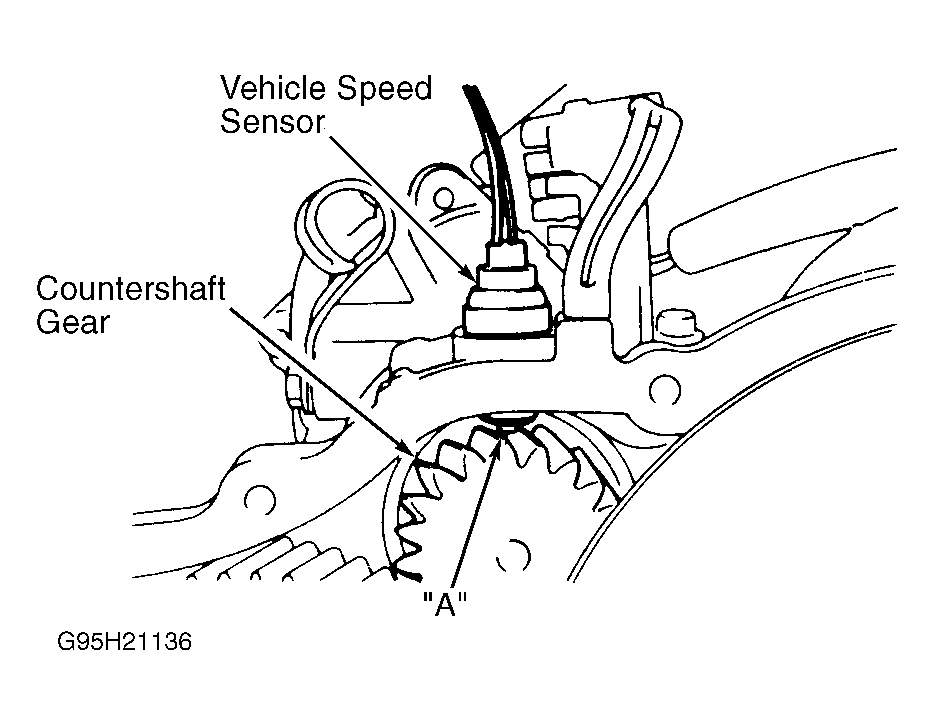

Vehicle Speed Sensor (VSS) is mounted on transaxle and transmits a vehicle speed signal to PCM. See Figure.
