Component Locations

Refer to illustration for component locations. See Fig 1 .

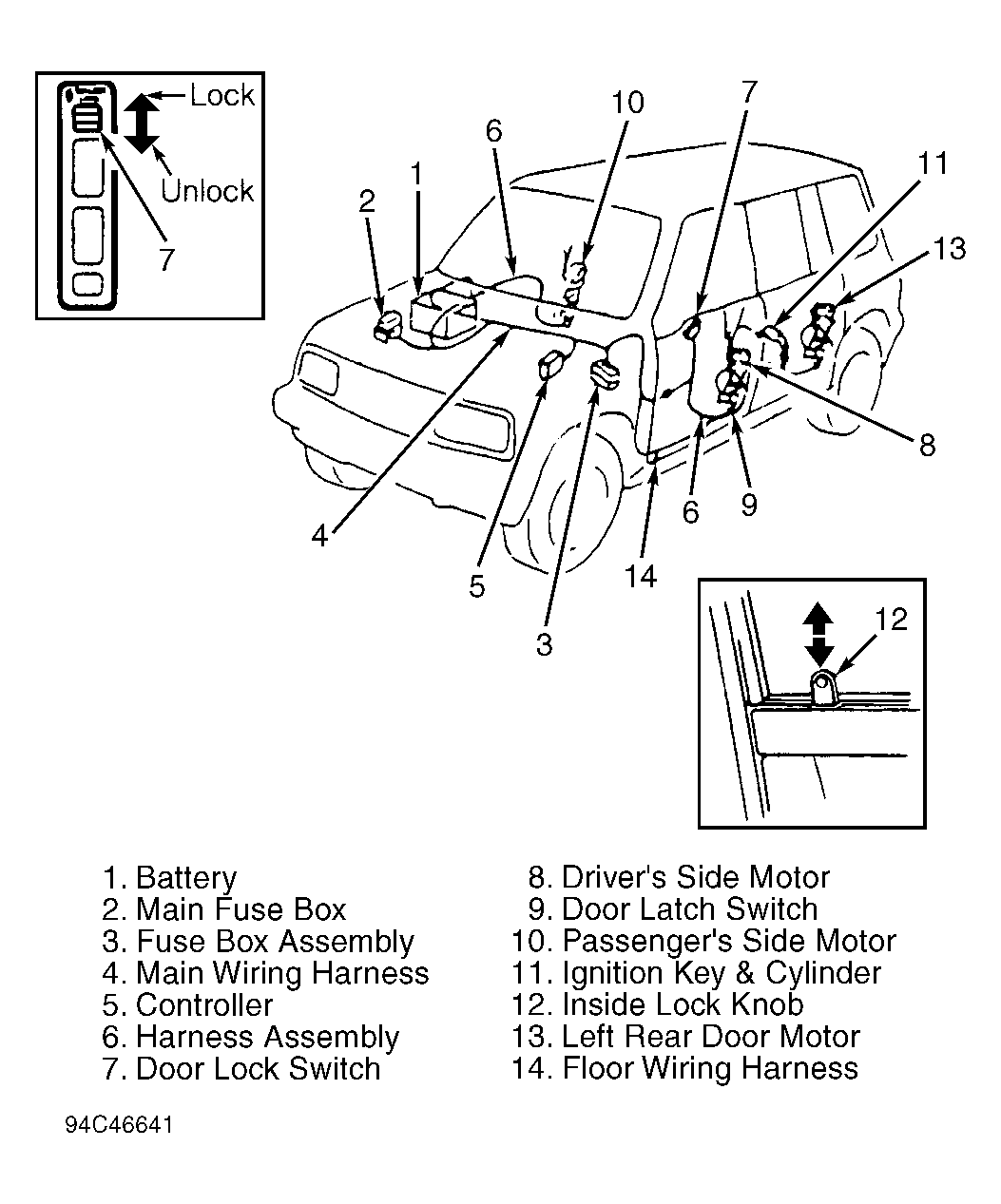

Fig 1: Locating Power Door Lock System Components (Sidekick Shown; Other Models Similar)
G94C46641Courtesy of SUZUKI OF AMERICA CORP.
