UNDERDASH Fuse Panel Identification: Notes

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

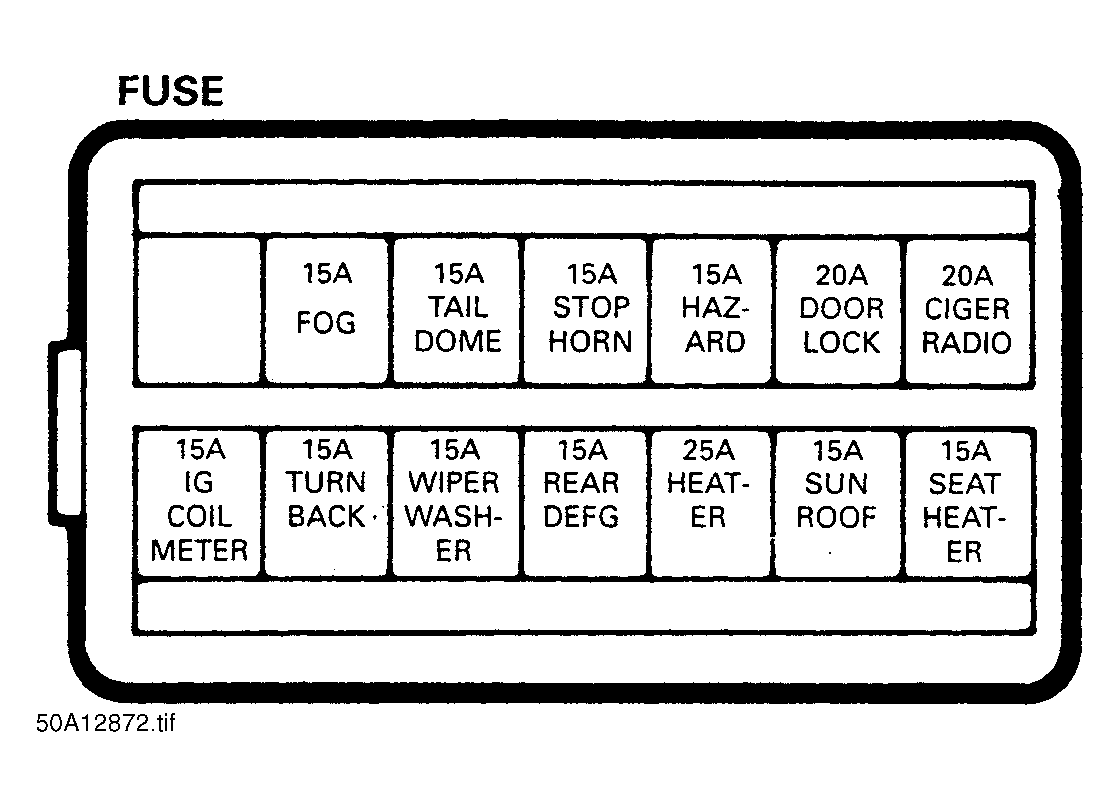

Fig 1: Underdash Fuse Panel
G50A12872Courtesy of SUZUKI MOTORS CORP.
