Sidekick & X-90
- Turn ignition on. If fuel pump is heard for 3 seconds, circuit is in good condition. If fuel pump is not heard, go to next step.CAUTION: Ensure jumper connections are made correctly. Improper connections may result in damage to PCM and wire harness.
- Turn ignition off. Using a fused jumper wire, backprobe Pink/Black wire and Black/White wire terminals at fuel pump relay connector located on side of heater unit inside passenger compartment (behind glove box on Sidekick 1.8L). Turn ignition on. If fuel pump is heard, go to next step. If fuel pump is not heard, check Pink/Black wire or Black/White wire for an open or poor connection. Repair as necessary. If wire and connections are okay, replace fuel pump and retest system.

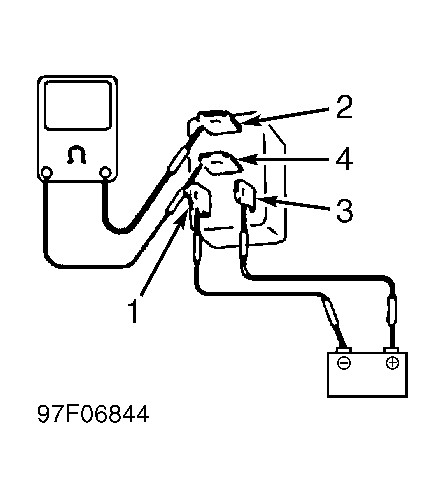

- Turn ignition off. Remove fuel pump relay. Using DVOM, measure resistance between fuel pump relay terminals. See Fig 1
-19. Continuity should not be present between relay terminals "A" and "B". On models produced in Japan, resistance between relay terminals "C" and "D" should be 63-77 ohms at 68°F (20°C). On models produced in Canada, resistance between relay terminals "C" and "D" should be 79-95 ohms at 68°F (20°C). Continuity should be present between relay terminals "A" and "B" as battery voltage and ground are applied to relay terminals "C" and "D". If resistance is as specified, go to next step. If resistance is not as specified, replace fuel pump relay and retest system.NOTE: Manufacture nation can be identified by first 3 digits of VIN code. See A - INTRODUCTION article.
- Check for poor connection or open in Pink wire or Blue/Black wire to fuel pump relay. Repair as necessary. If wire and connections are okay, replace PCM and retest system.
