Door Lock Actuator

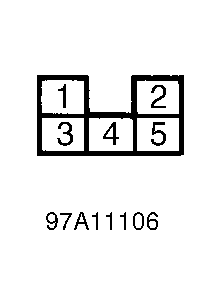

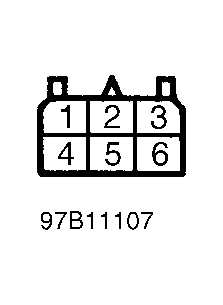

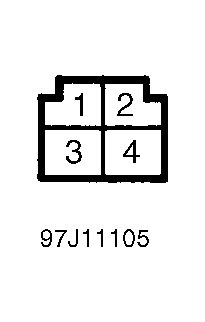

Disconnect appropriate power door lock actuator harness connector. Apply battery voltage across appropriate terminals of door lock actuator terminals. See DOOR LOCK ACTUATOR OPERATION . See Fig 1 , Fig 2 , Fig 3 , Fig 4 or Fig 5 . If door lock actuator does not operate as specified, replace power door lock actuator.
DOOR LOCK ACTUATOR OPERATION
| Positive Voltage Terminal | Negative Voltage Terminal | Lock Position | ||
|---|---|---|---|---|
| 1.8L | ||||
| Front | ||||
| 2 | 3 | Lock | ||
| 3 | 2 | Unlock | ||
| Rear Door | ||||
| 1 | 2 | Lock | ||
| 2 | 1 | Unlock | ||
| Rear Hatch | ||||
| 2 | 1 | Lock | ||
| 1 | 2 | Unlock | ||
| 1.6L - 2-Door | ||||
| Driver's Door | ||||
| 2 | 4 | Lock | ||
| 4 | 2 | Unlock | ||
| Passenger's Door | ||||
| 4 | 2 | Lock | ||
| 2 | 4 | Unlock | ||
| Rear Hatch | ||||
| 4 | 5 | Lock | ||
| 5 | 4 | Unlock | ||
| 1.6L - 4-Door | ||||
| Front Door | ||||
| 2 | 3 | Lock | ||
| 3 | 2 | Unlock | ||
| Rear Door | ||||
| 1 | 2 | Lock | ||
| 2 | 1 | Unlock | ||
| Rear Hatch | ||||
| 4 | 5 | Lock | ||
| 5 | 4 | Unlock | ||
