Intake Manifold: Installation

To install, reverse removal procedure. Use NEW gaskets. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Adjust all control cables and fill cooling system.

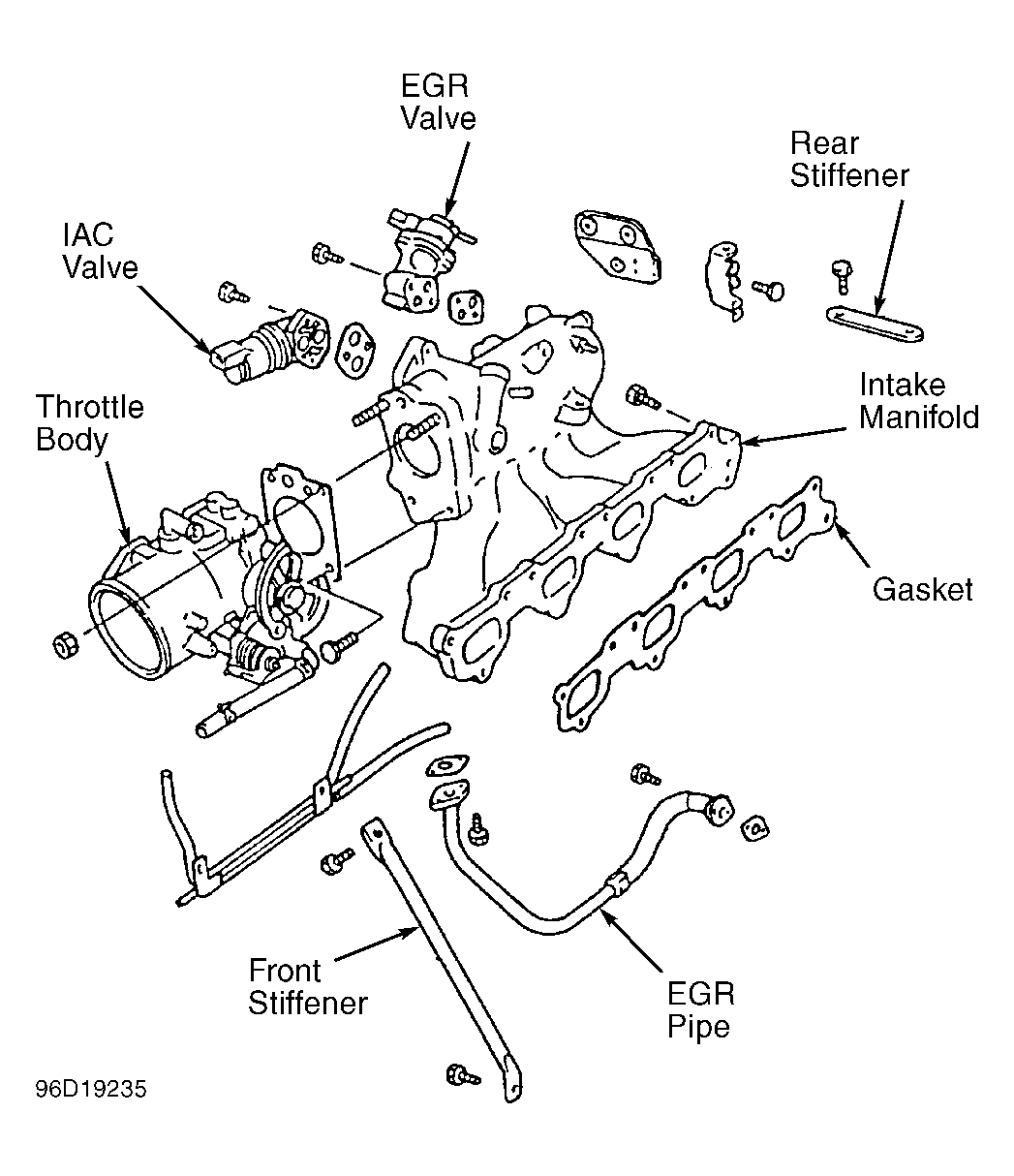

Fig 1: Exploded View Of Intake Manifold
G96D19235Courtesy of SUZUKI OF AMERICA CORP.
