Diagnostic Testing: Notes
NOTE:

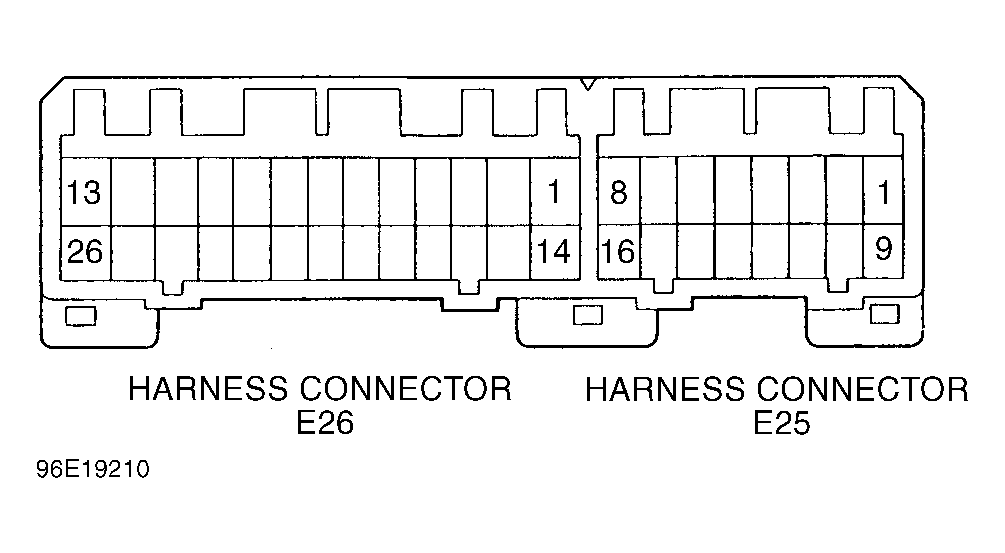

When diagnosing transaxle, ensure all proper steps are taken to eliminate the possibility of a mechanical malfunction. This can save diagnostic time and avoid unnecessary replacement of properly operating components. See SYSTEM DIAGNOSIS under SELF-DIAGNOSTIC SYSTEM . See WIRING DIAGRAMS to aid in component location, wire color and wire terminal identification. Refer to illustration for TCM harness connector and terminal identification. See Figure.
