Code 51 - EGR System Faulty EGR System

NOTE: When repairs and testing are completed, see FINAL CHECK  .

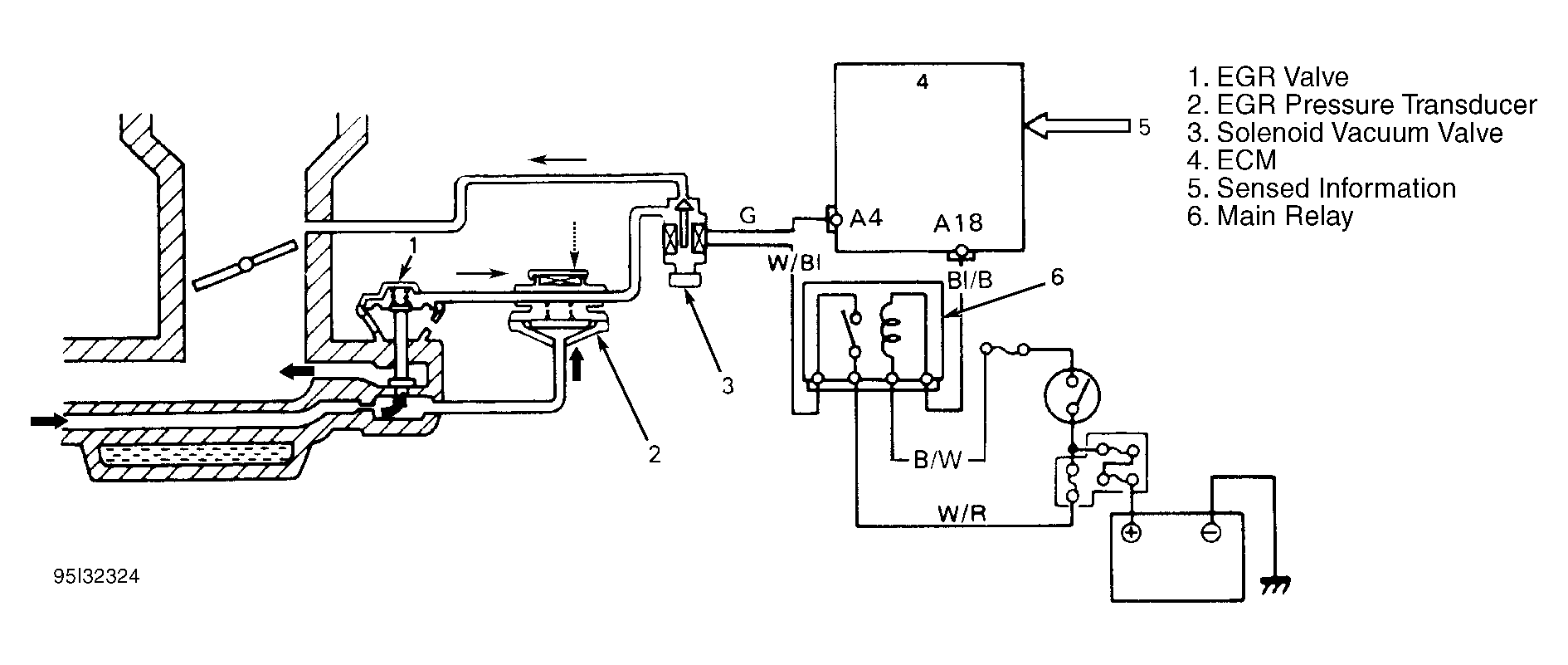

Fig 1: Code 51 - Circuit Diagram
G95I32324Courtesy of SUZUKI OF AMERICA

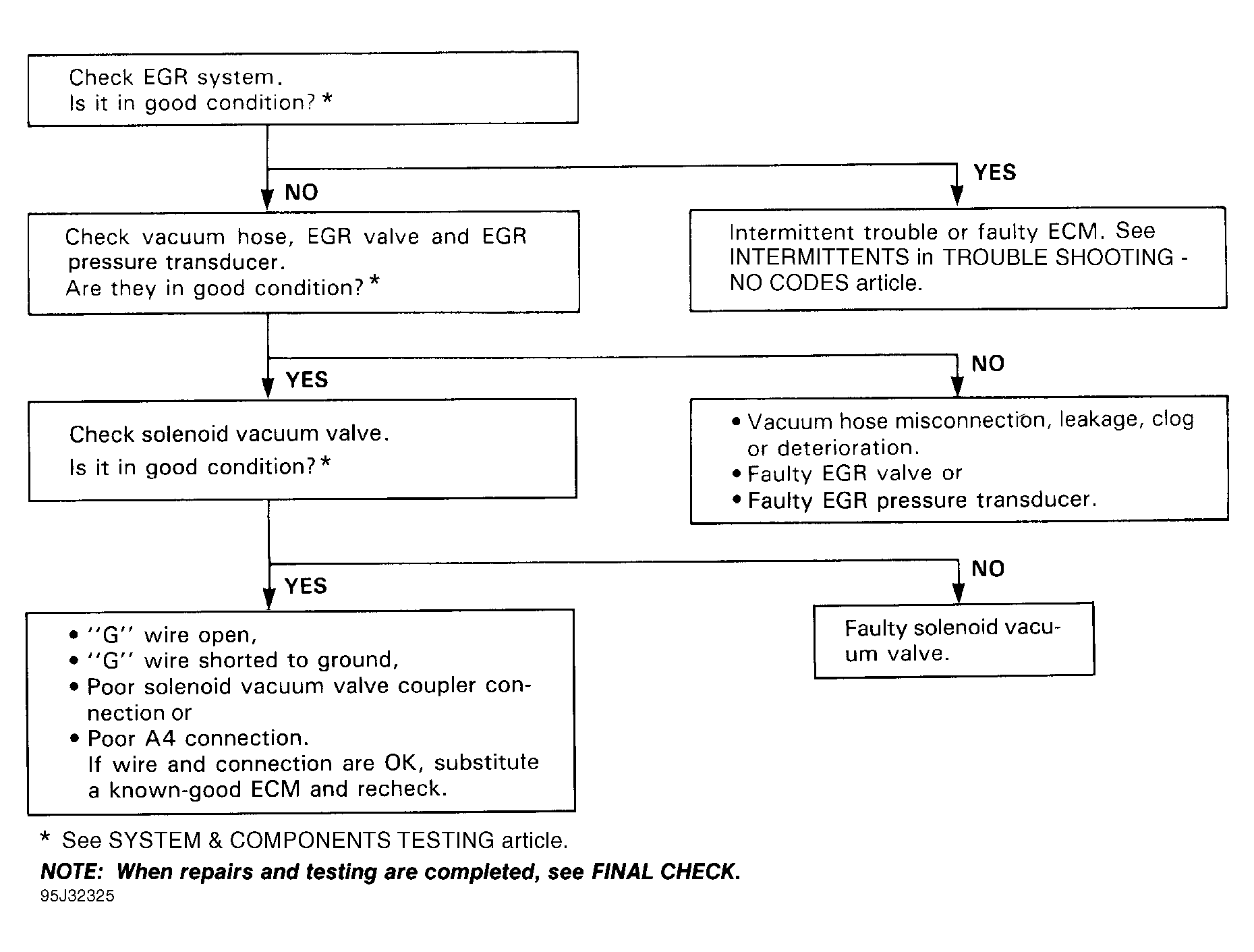

Fig 2: Code 51 - Flow Chart
G95J32325Courtesy of SUZUKI OF AMERICA
