Notes
Fuel Evaporation System: Notes
NOTE:
To identify fuel evaporation system components, see
Fig 1
.

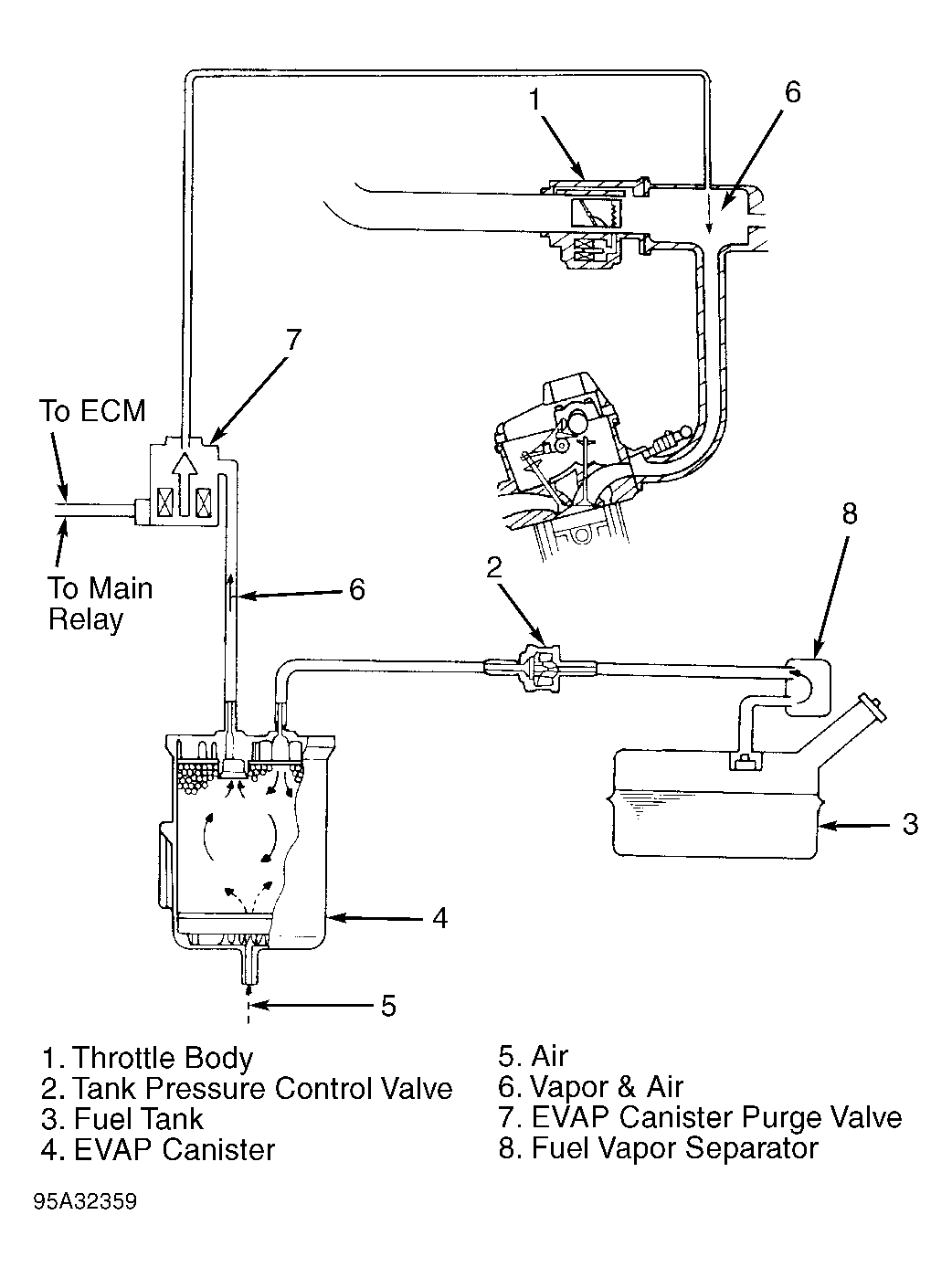

Fig 1: Identifying Fuel Evaporation System Components (Typical)
Courtesy of SUZUKI OF AMERICA CORP.
