Home >> Suzuki >> 1995 >> Sidekick JS, 2D Utility, Automatic, 3L30 >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System - Rear >> Circuit Tests >> Notes

Circuit Tests: Notes

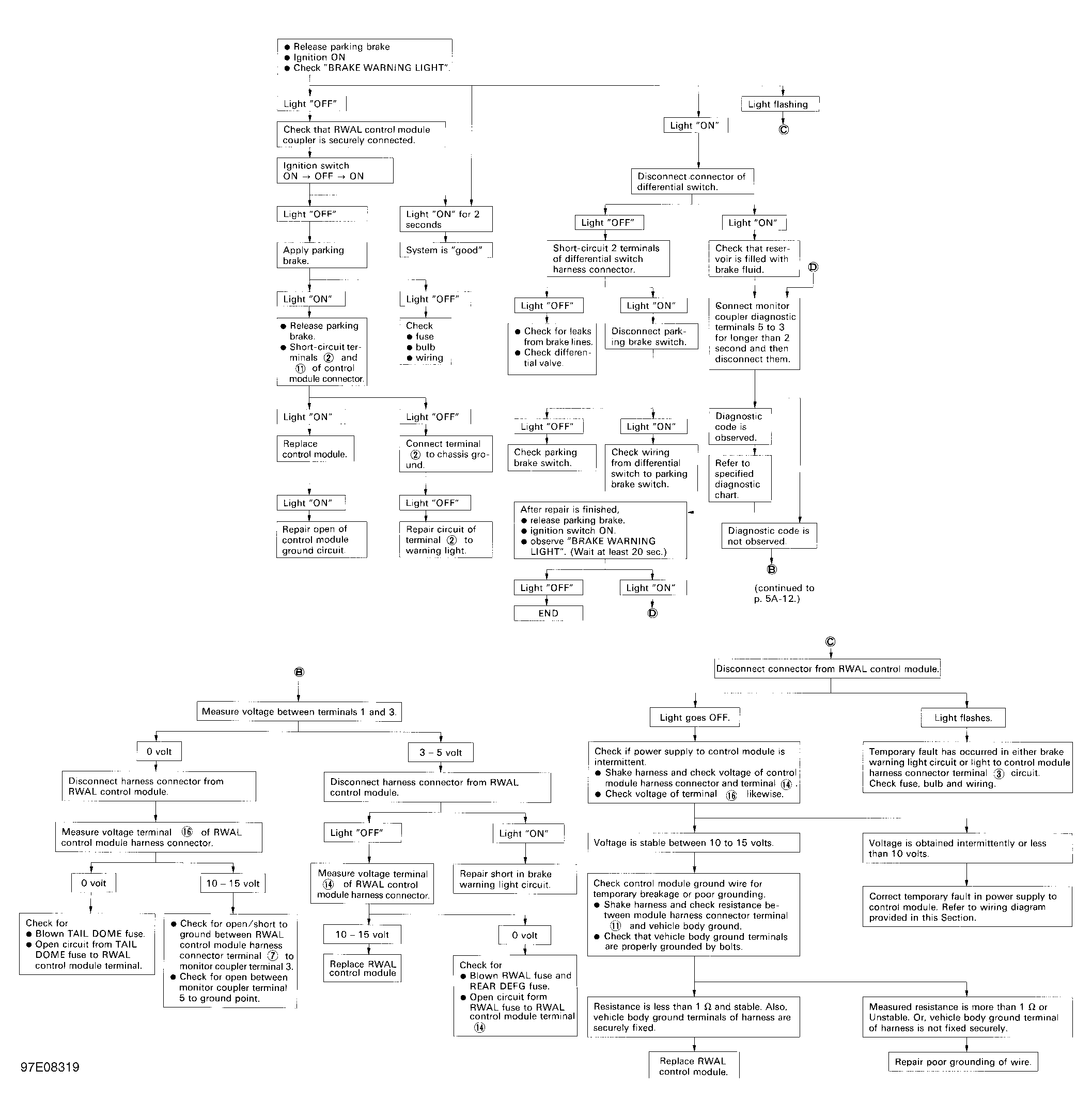

NOTE: Prior to performing DTC test procedures, perform RWAL SYSTEM CHECK under TROUBLE SHOOTING. See Figure.
