Alternator & Regulator: Overhaul

NOTE: For generator overhaul, see Fig 1 .

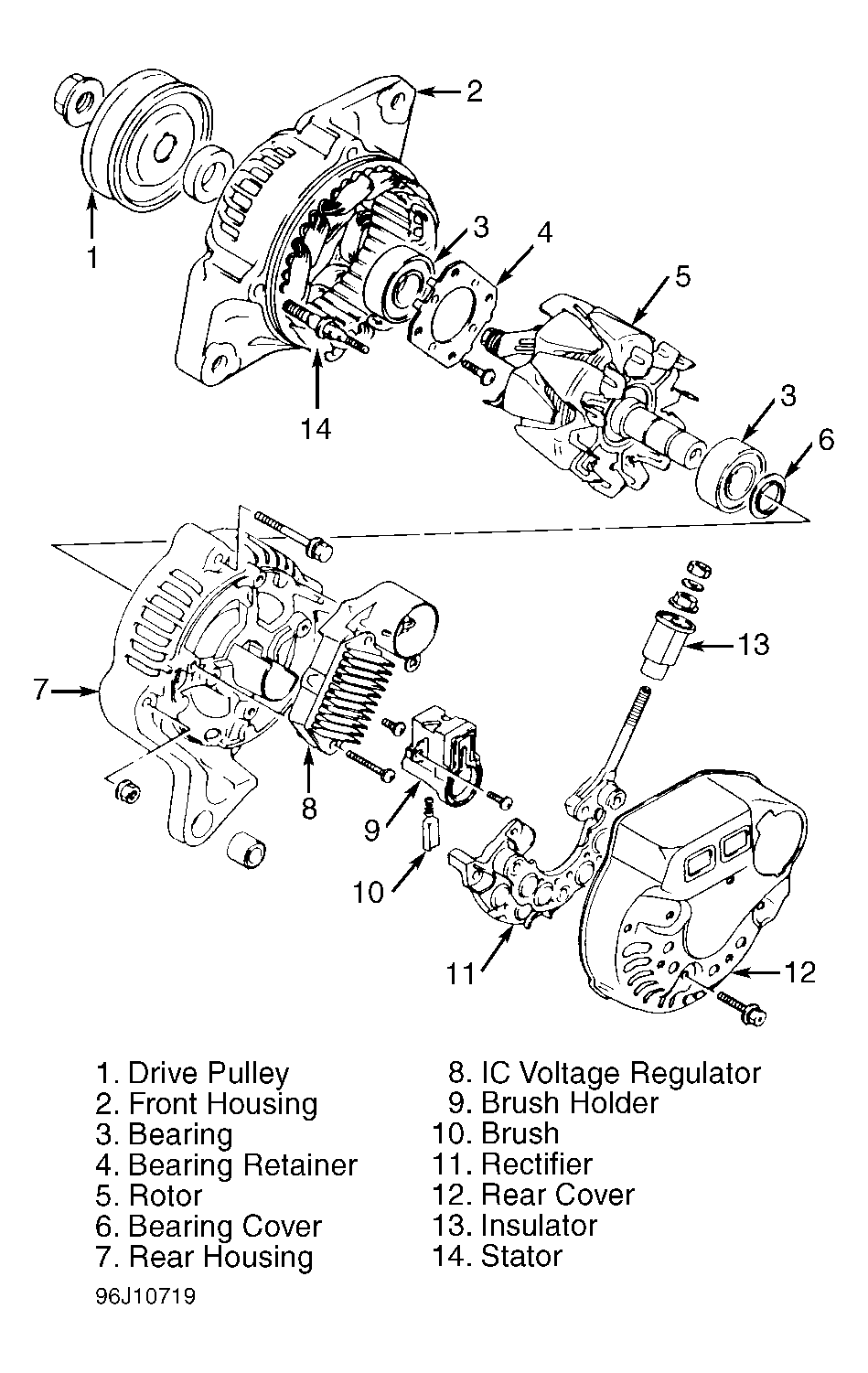

Fig 1: Exploded View Of Generator

G96J10719

Courtesy of SUZUKI OF AMERICA CORP.
