Code 52 - Fuel System Air/Fuel Ratio Feedback Incorrect

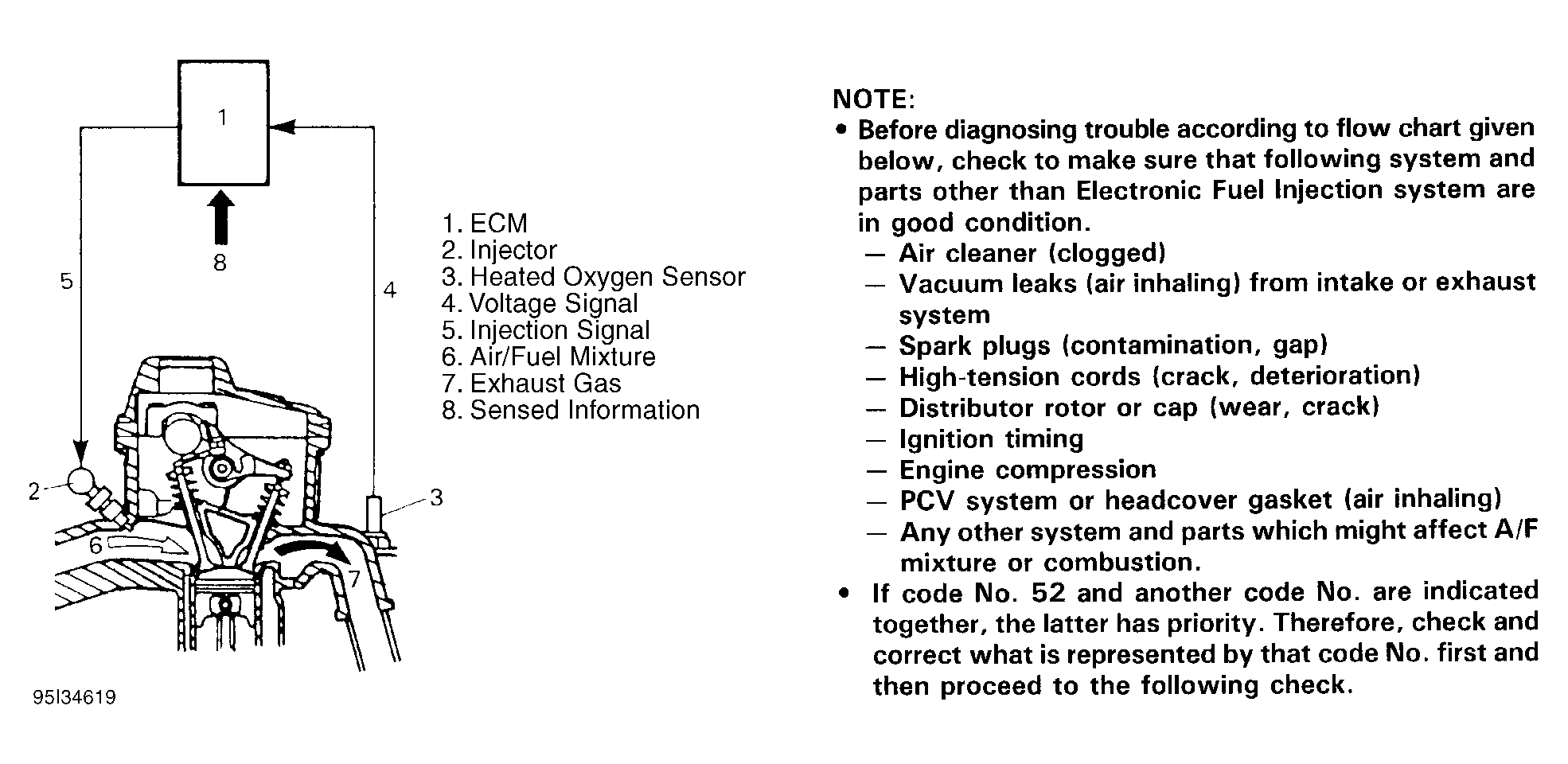

Fig 1: Code 52 - Circuit Diagram

G95I34619

Courtesy of SUZUKI OF AMERICA CORP

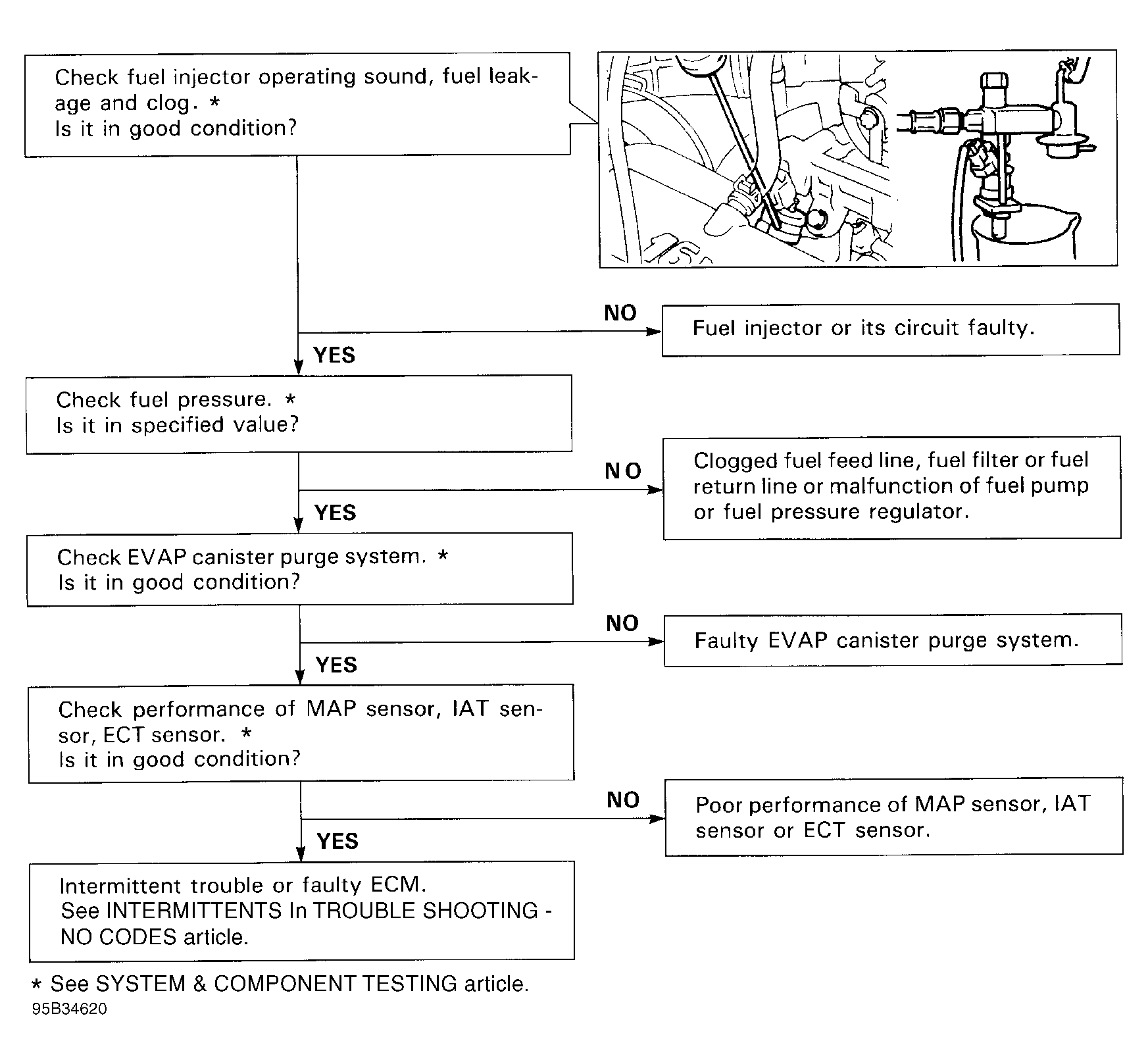

Fig 2: Code 52 - Flow Chart

G95B34620

Courtesy of SUZUKI OF AMERICA CORP
