Code 51 - EGR System Circuit Check, CALIF. Models

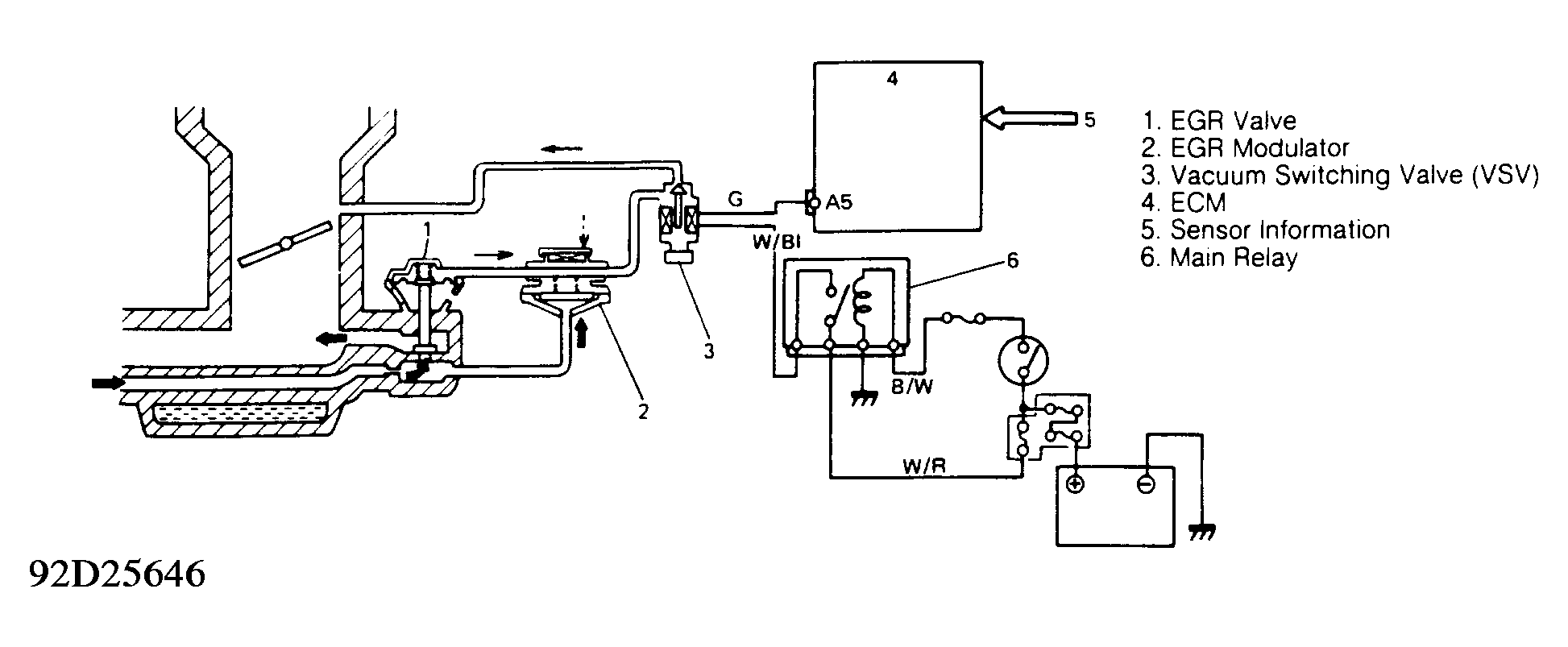

Fig 1: Code 51, Schematic - EGR System Circuit Check, Calif

G92D25646

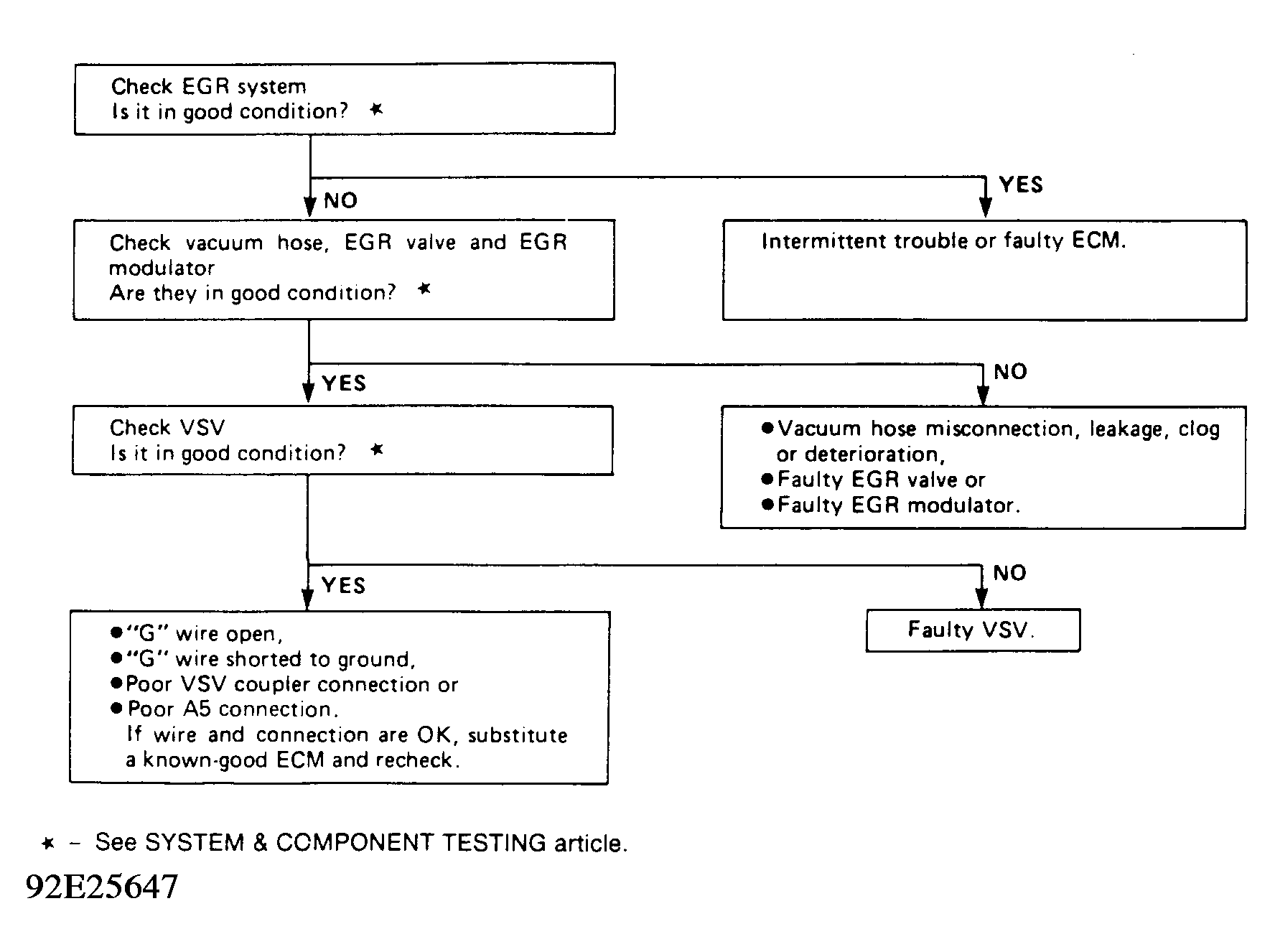

Fig 2: Code 51, Flow Chart - EGR System Circuit Check, Calif

G92E25647
