Code 24 - Speed Sensor Circuit Check

Fig 1: Code 24, Schematic - Speed Sensor Circuit Check

G92J25634

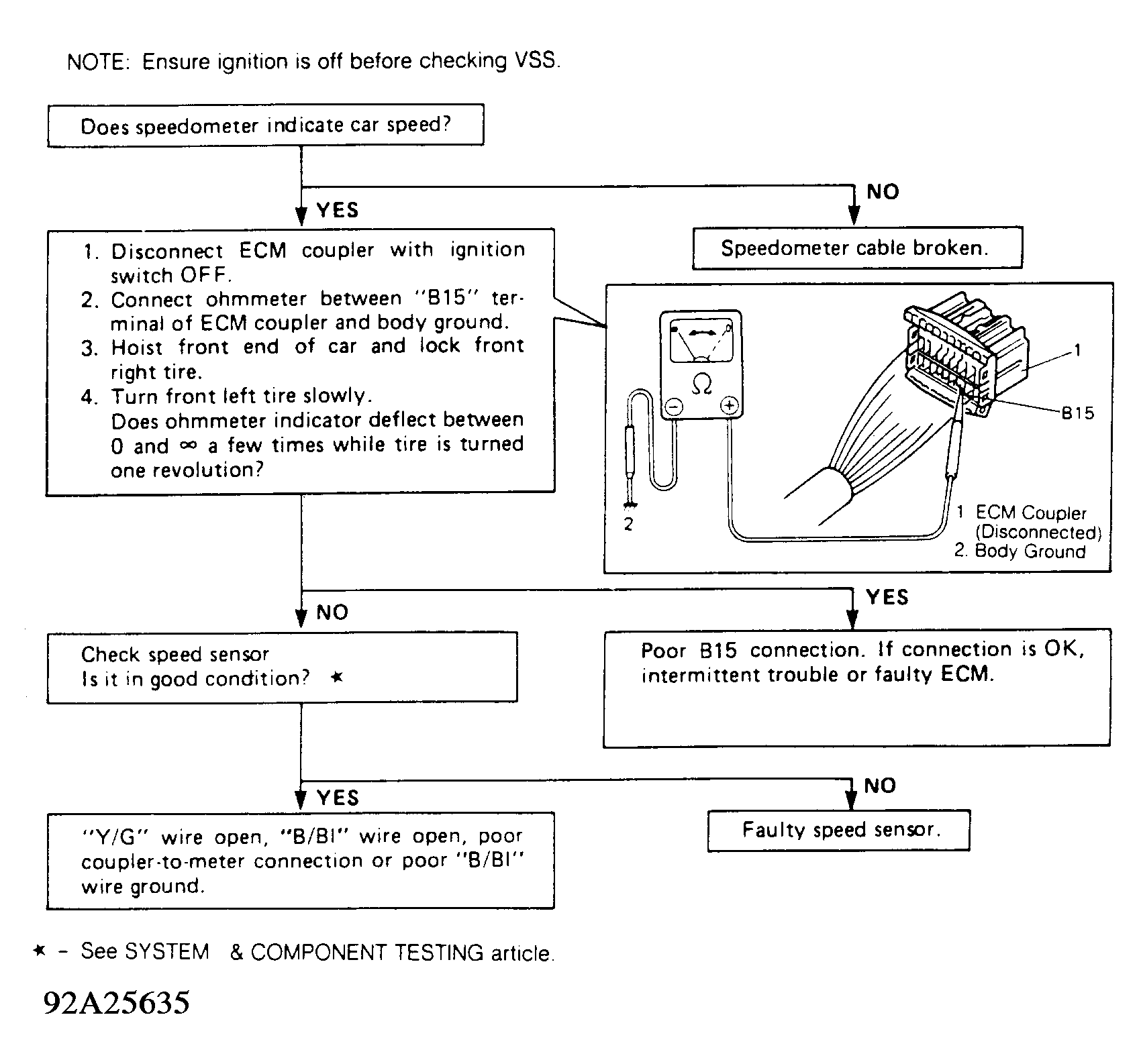

Fig 2: Code 24, Flow Chart - Speed Sensor Circuit Check

G92A25635
