Code 51 - EGR System Circuit Check, CALIF. Models

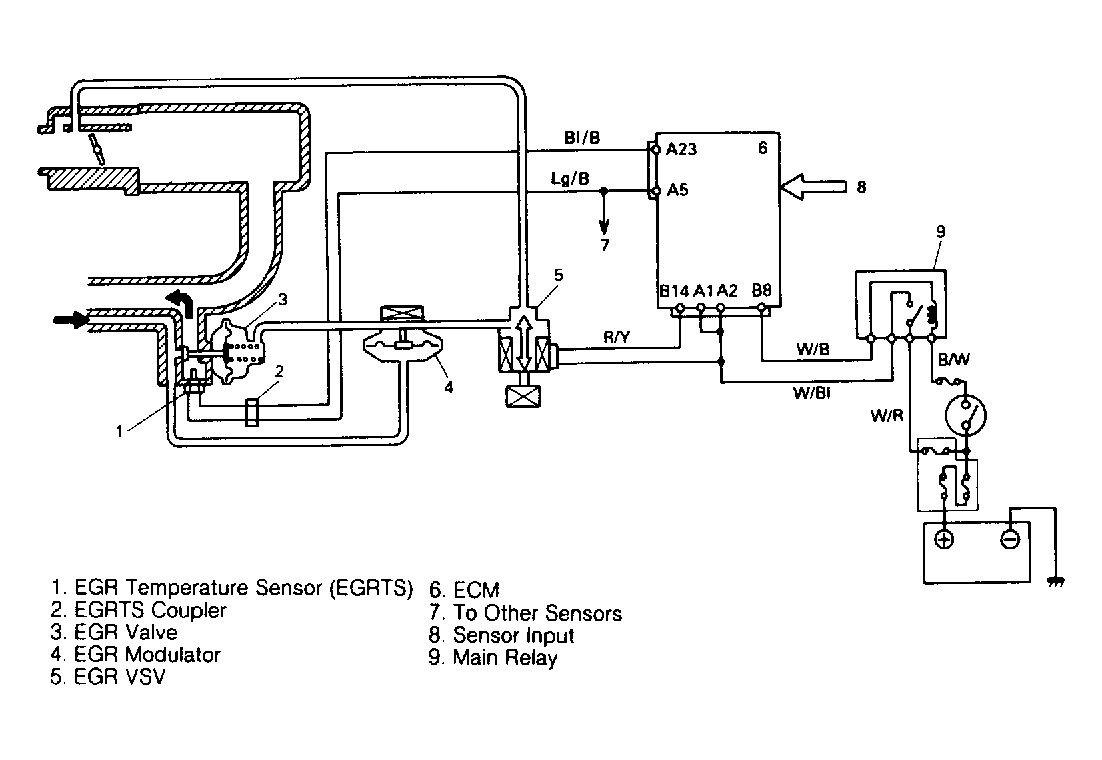

Fig 1: Code 51, Schematic - EGR System Circuit Check (Calif)

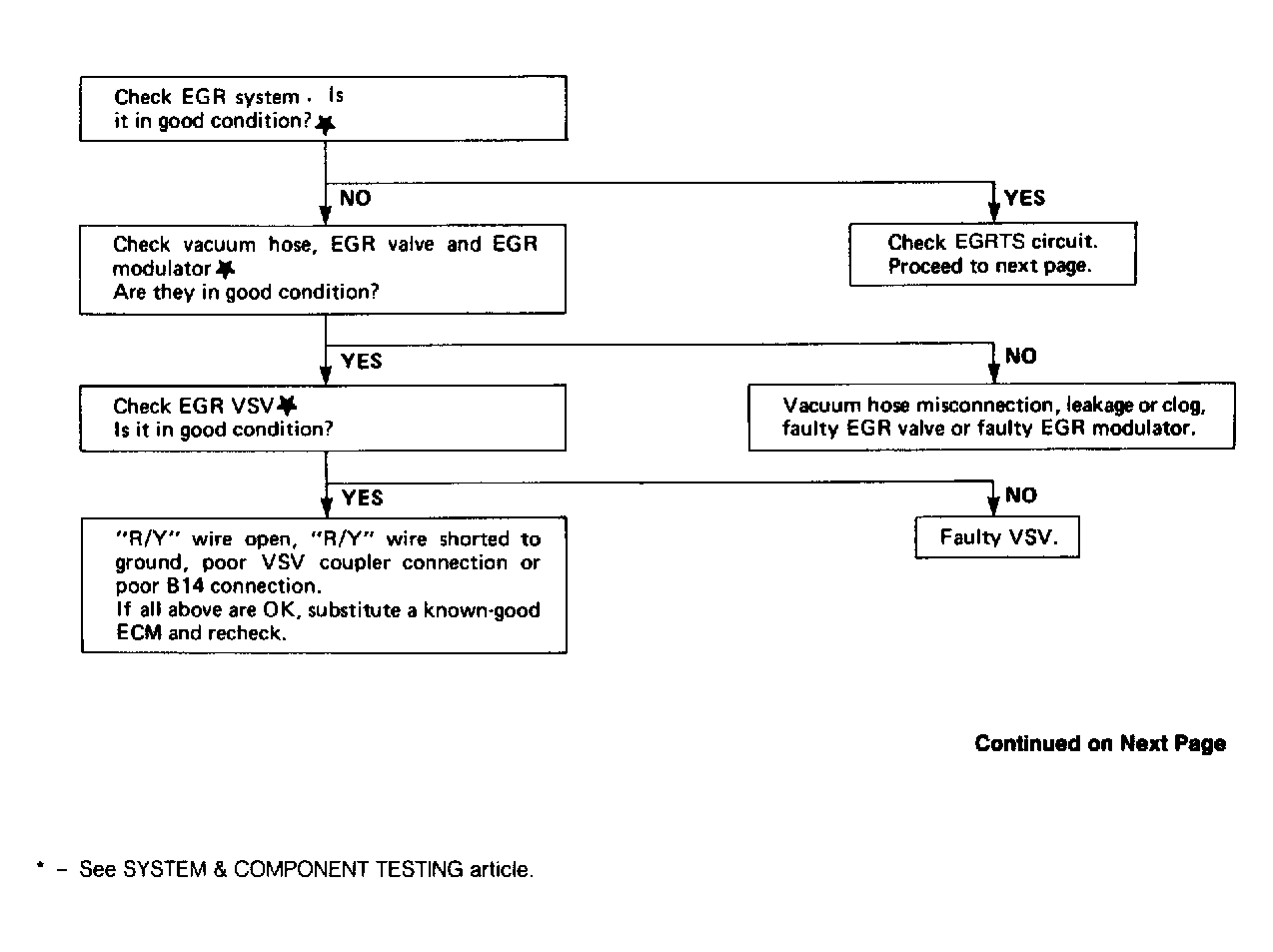

Fig 2: Code 51, Flow Chart (1 of 2) - EGR System Circuit Check (Calif)

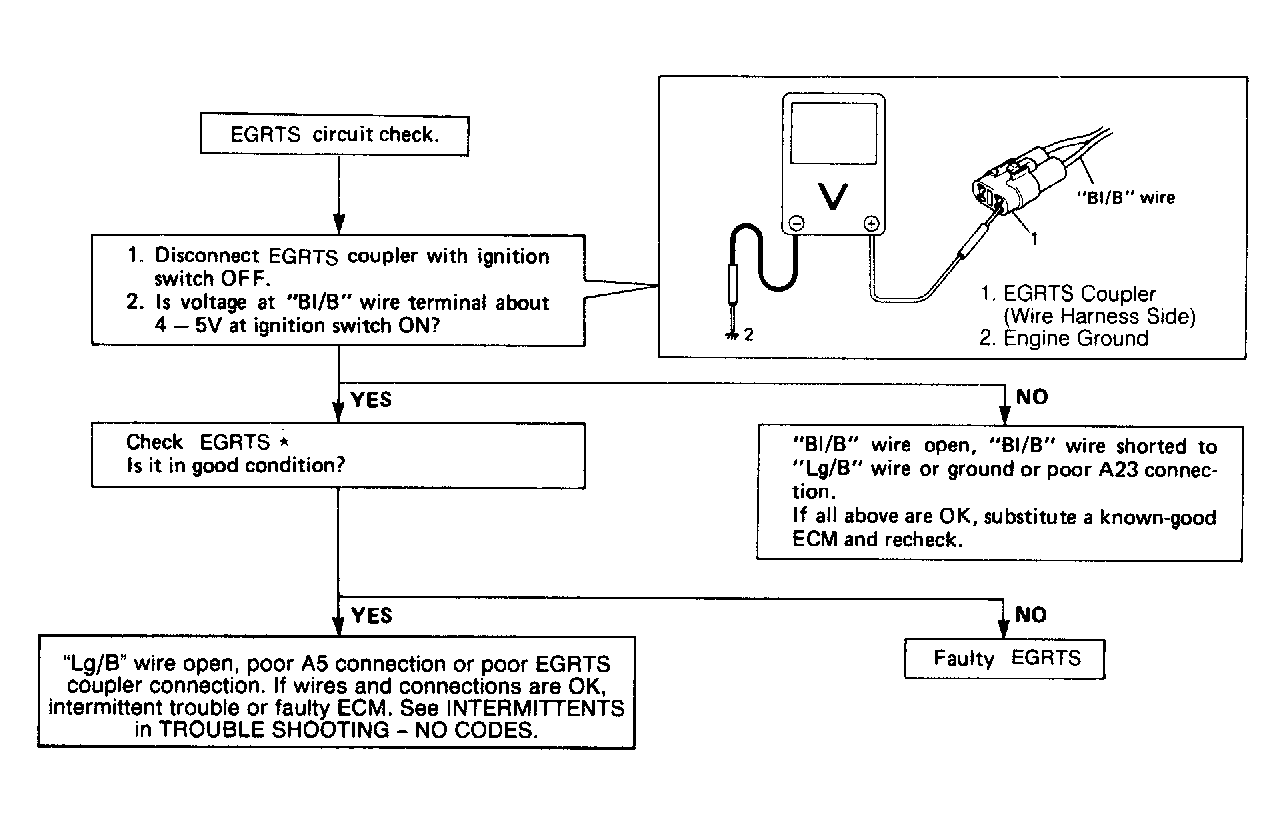

Fig 3: Code 51, Flow Chart (2 of 2) - EGR System Circuit Check (Calif)
