Chart A-1 - ECM Power & Ground Circuit Check (Does Not Start)

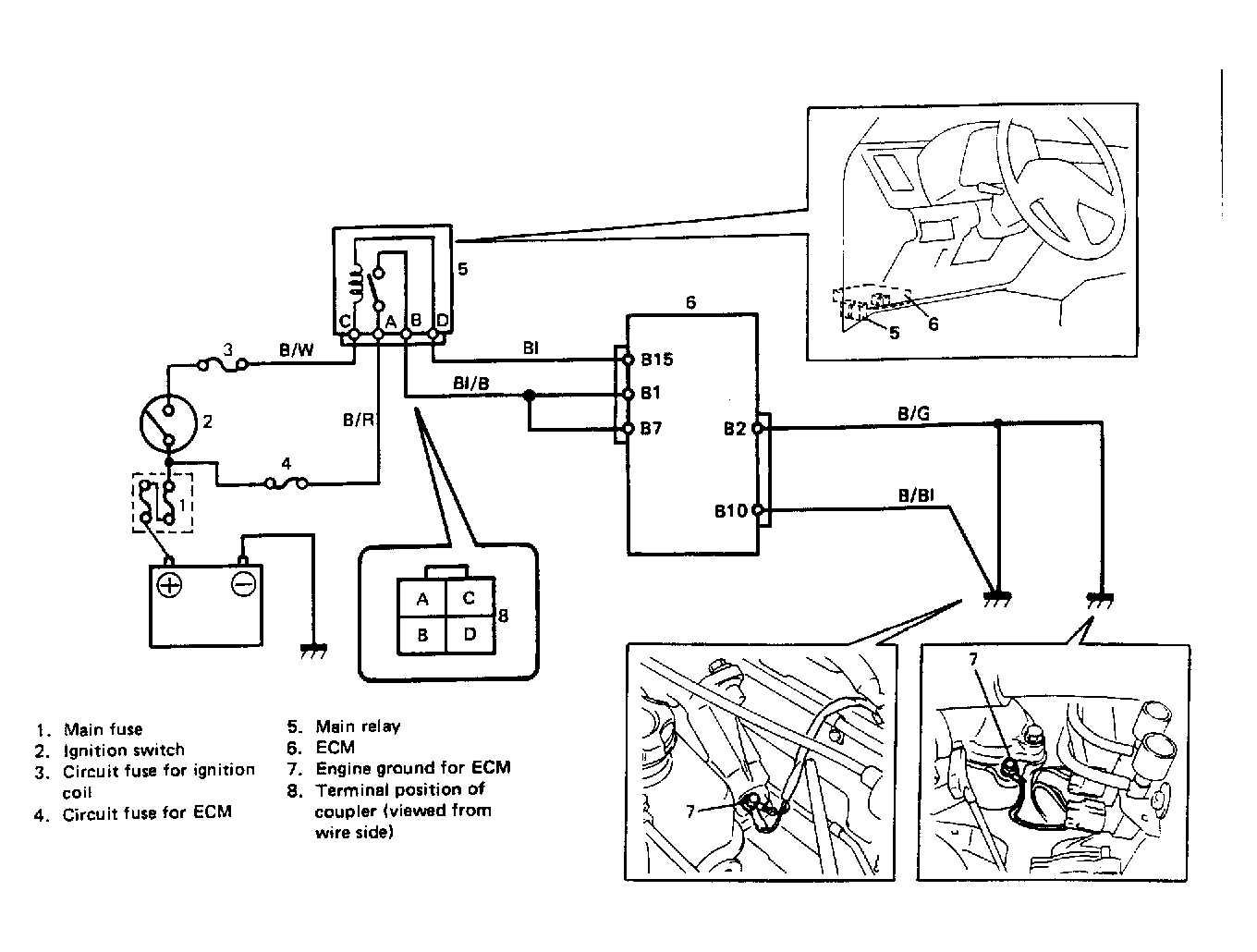

Fig 1: Chart A1, Schematic - ECM Power & Ground Circuit Check (No Start)

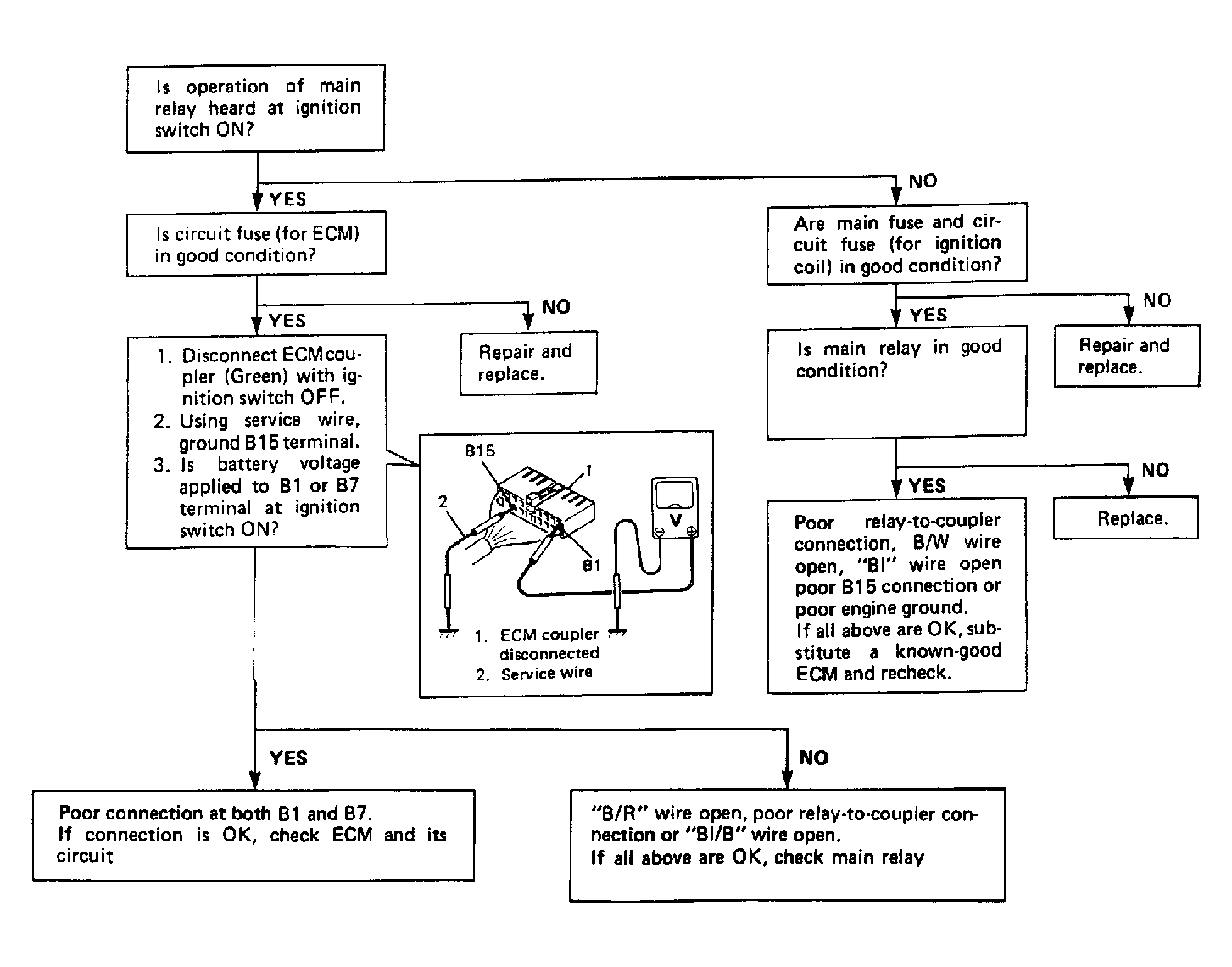

Fig 2: Chart A1, Flow Chart - ECM Power & Ground Circuit Check (No Start)
