Code 25 - IAT Sensor Circuit, High Temperature Indicated

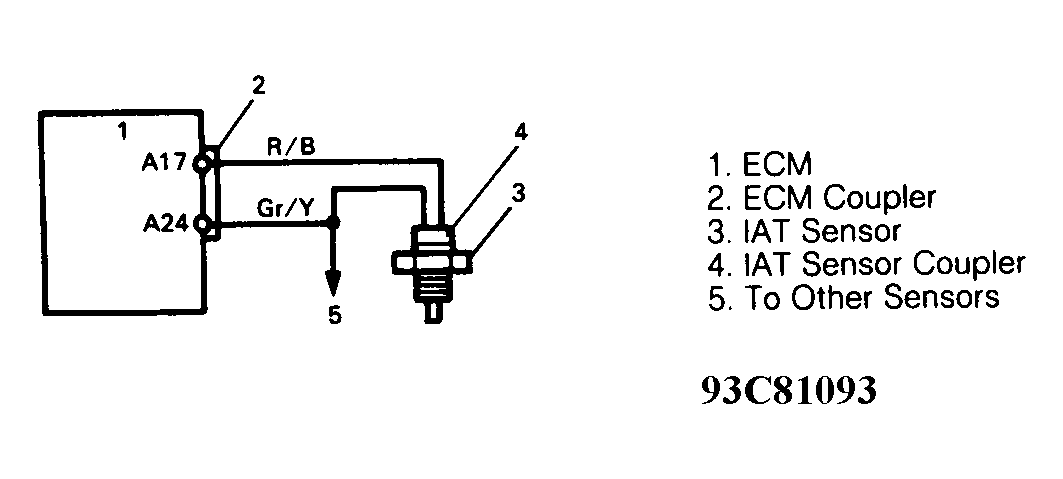

Fig 1: Code 25, Schematic - Air Temperature Sensor Circuit High

G93C81093

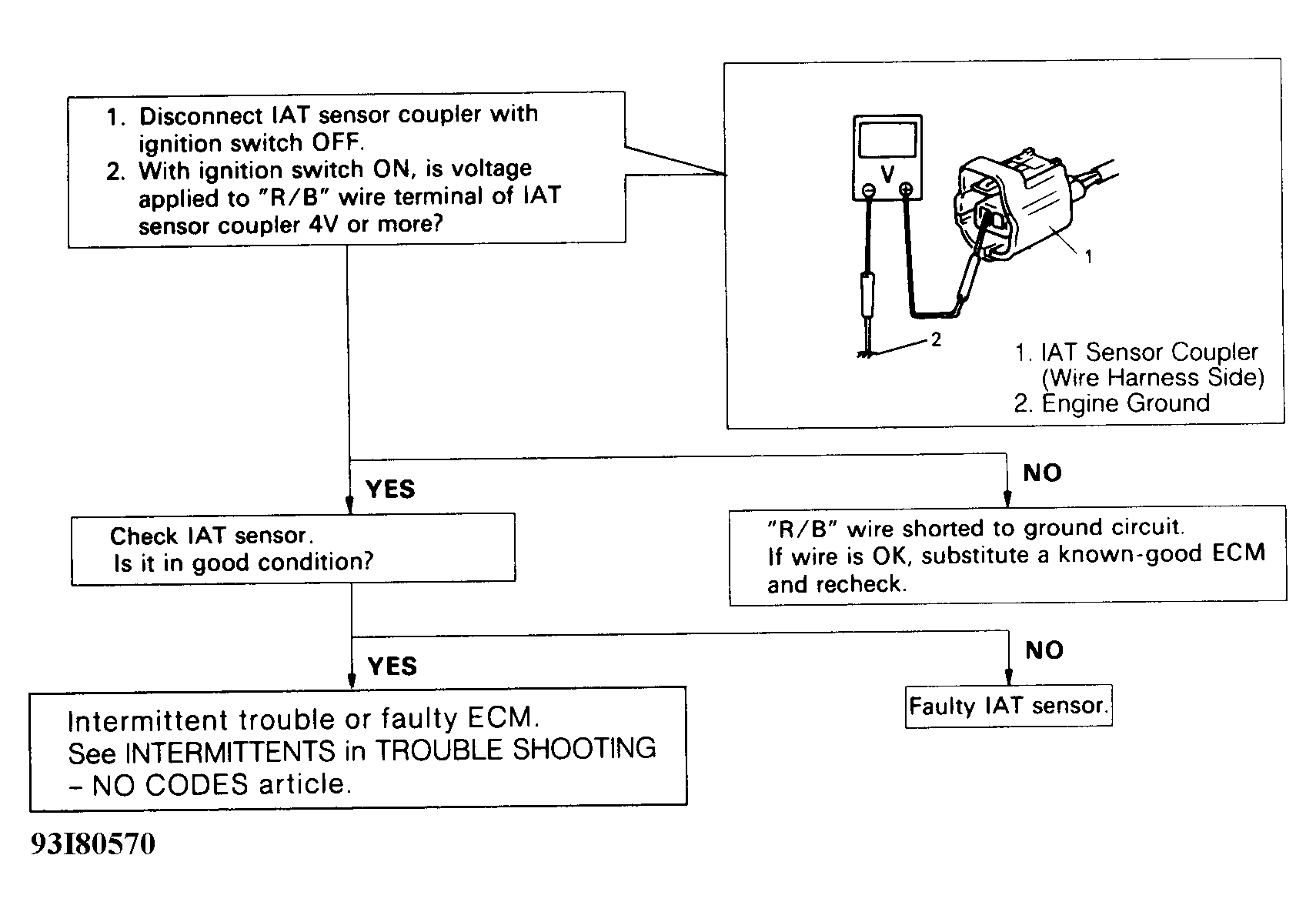

Fig 2: Code 25, Flow Chart - Air Temperature Sensor Circuit High

G93I80570
