Steering Column: Inspection

See Fig 1 -2 for column damage measurements. If measurements are not within specification, replace steering column.

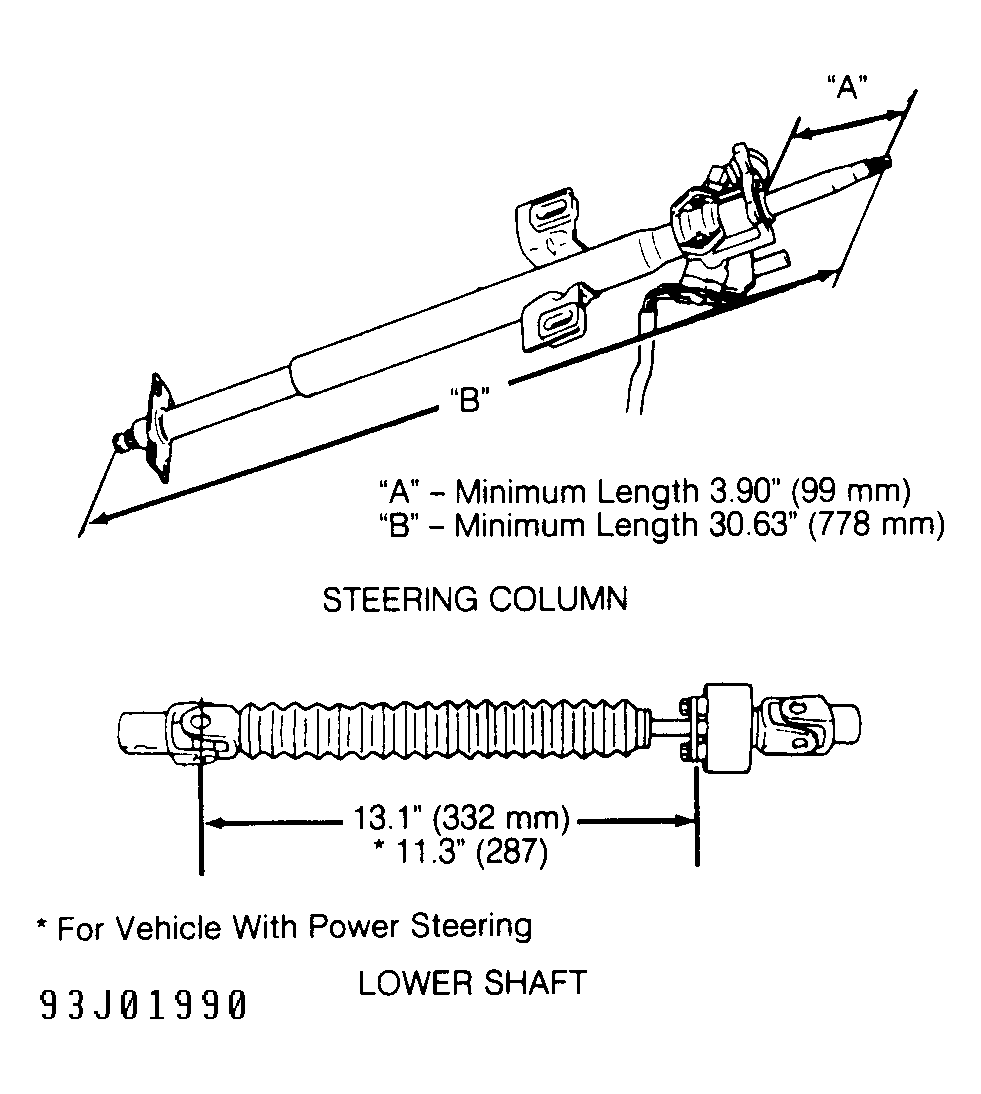

Fig 1: Measuring Steering Shaft & Column

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Measuring Steering Column Bracket Capsules

Courtesy of SUZUKI OF AMERICA CORP.
