Code 24 - Speed Sensor Circuit Check (SOHC)

Fig 1: Code 24 Schematic, Speed Sensor Circuit (SOHC)

Courtesy of SUZUKI OF AMERICA CORP.

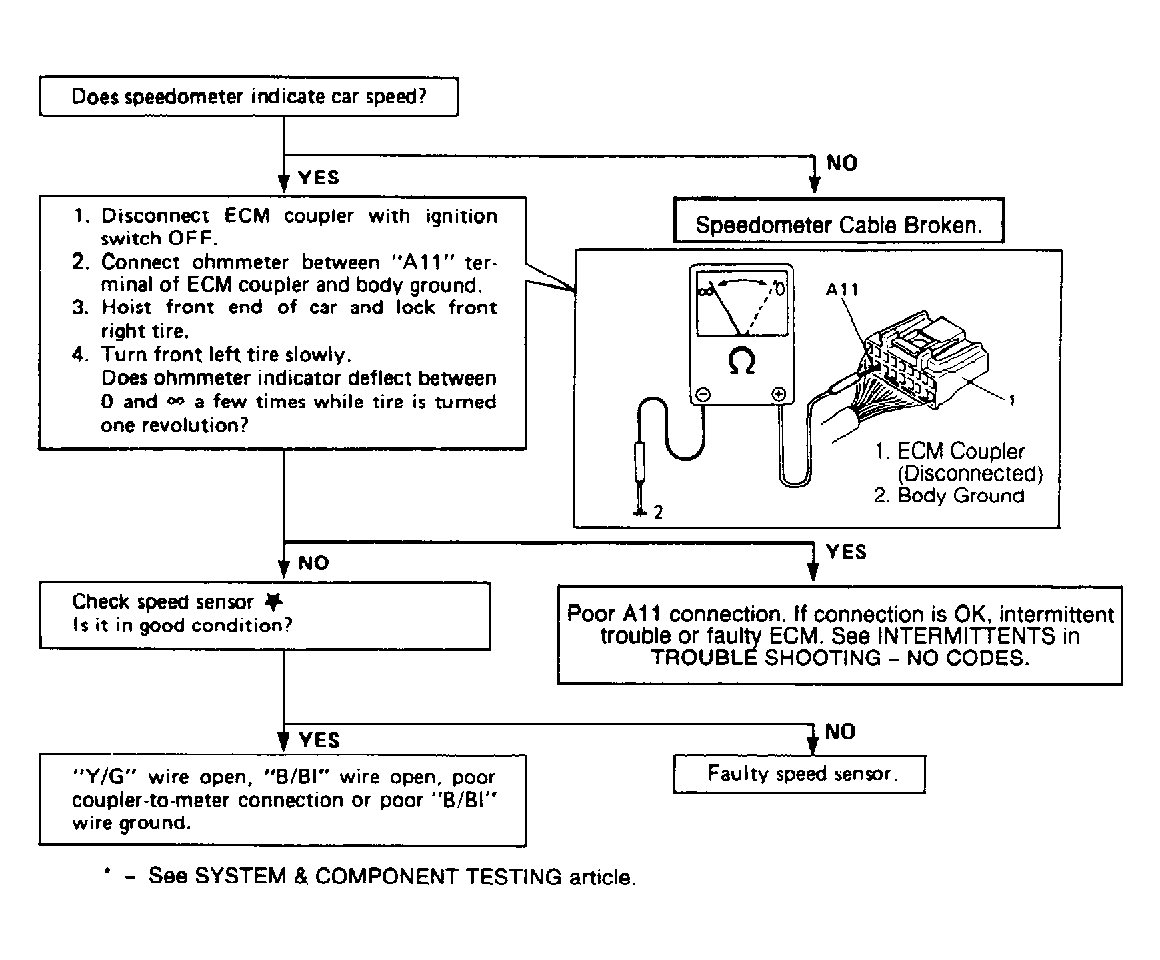

Fig 2: Code 24 Flow Chart, Speed Sensor Circuit (SOHC)

Courtesy of SUZUKI OF AMERICA CORP.
