Code 14 - Coolant Temperature Sensor (Cts) Indication Low

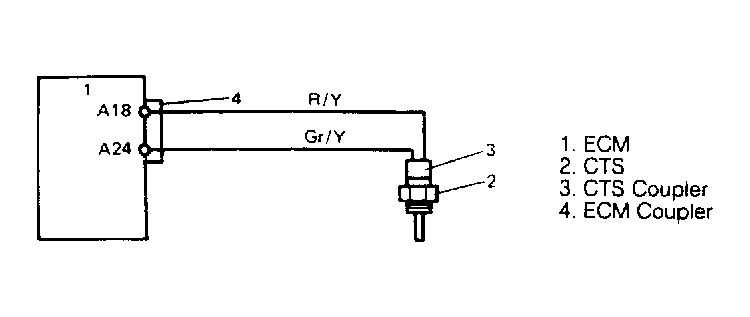

Fig 1: Code 14 Schematic, CTS Sensor-Indication Low

Courtesy of SUZUKI OF AMERICA CORP.

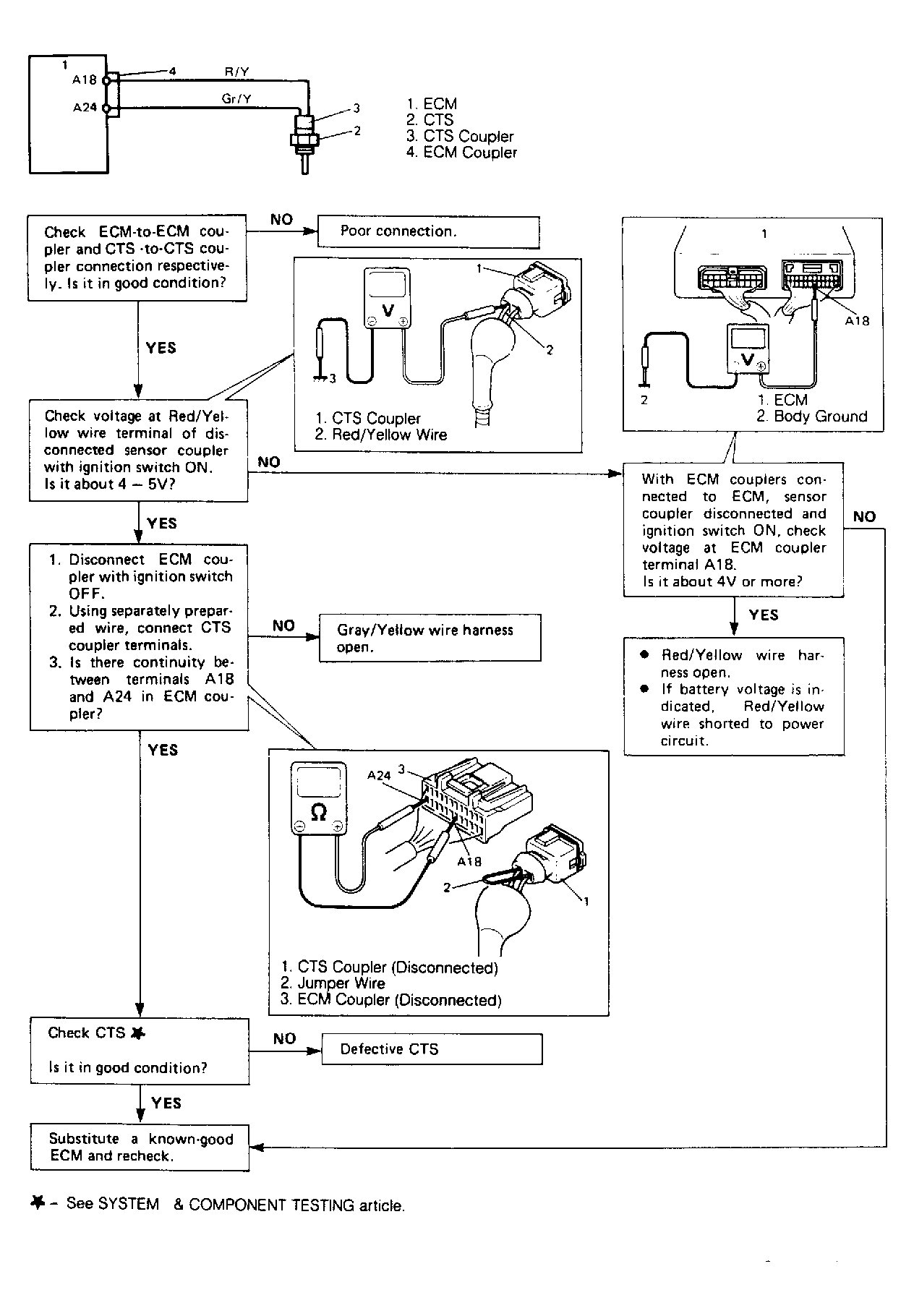

Fig 2: Code 14 Flow Chart, CTS Sensor-Indication Low

Courtesy of SUZUKI OF AMERICA CORP.
