Code 21 - Throttle Position Sensor Circuit Indication High

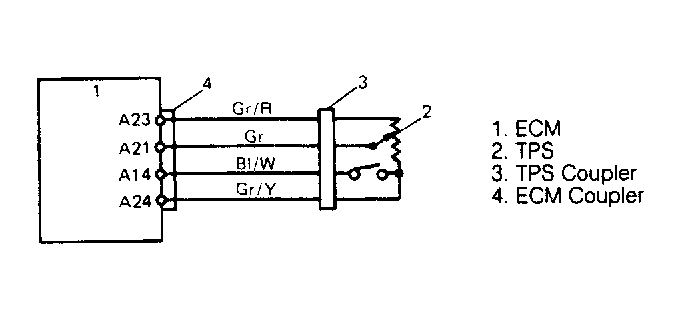

Fig 1: Code 21 Schematic, TPS Sensor Ckt.-Indication High

Courtesy of SUZUKI OF AMERICA CORP.

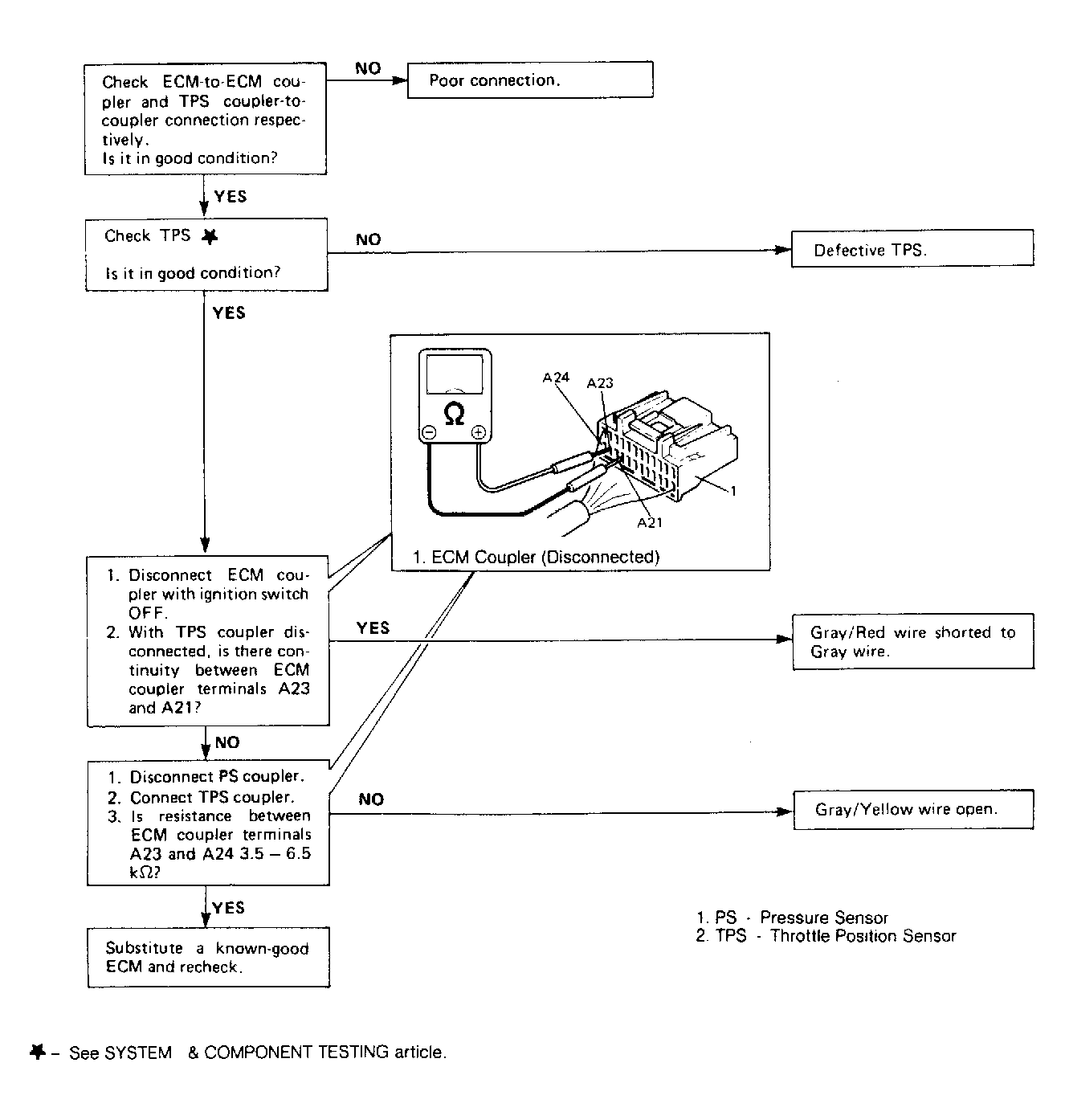

Fig 2: Code 21 Flow Chart, TPS Sensor Ckt.-Indication High

Courtesy of SUZUKI OF AMERICA CORP.
