Bench Testing: Rectifier

  1. Using an ohmmeter, check for continuity between ground and "B" terminal. Connect one lead of ohmmeter to "B" terminal and other to ground. Swap leads and recheck for continuity. See Fig 1 or Figure .

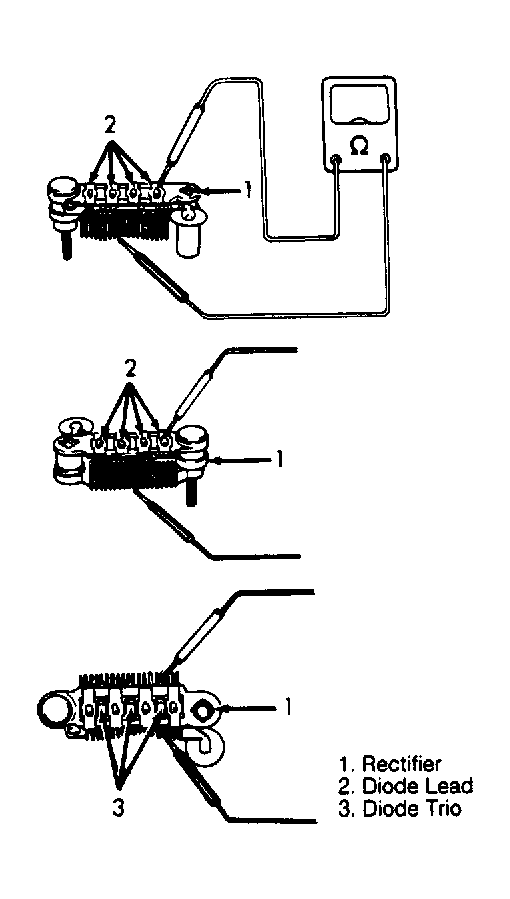

Fig 1: Testing Rectifier Diode Continuity (Samurai & Swift)
G104896Courtesy of SUZUKI OF AMERICA CORP.
