Wiper/Washer Switch

Disconnect wiper/washer switch. Using an ohmmeter, check continuity across switch terminals. SeeFig 1 -Fig 4 .

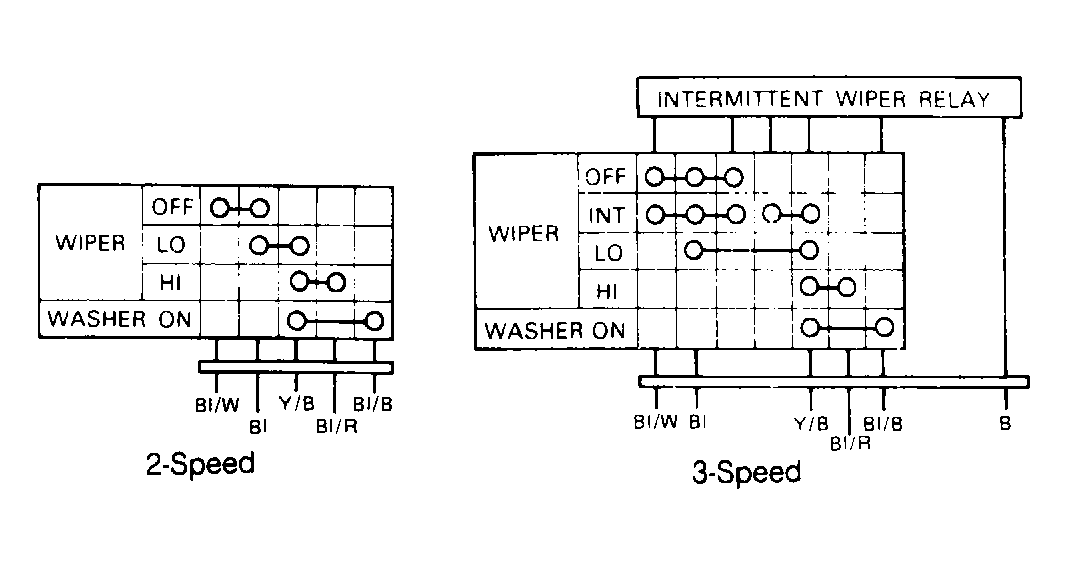

Fig 1: Testing Front Wiper Switch (Samurai)

Courtesy of SUZUKI OF AMERICA CORP.

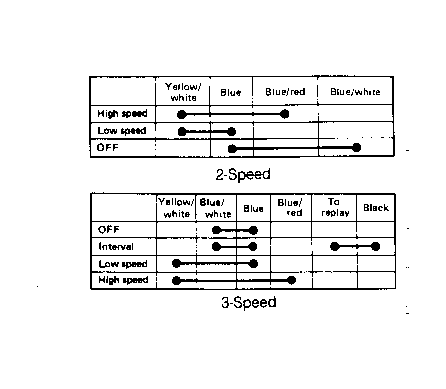

Fig 2: Testing Front Wiper/Washer Switch (Sidekick)

Courtesy of SUZUKI OF AMERICA CORP.

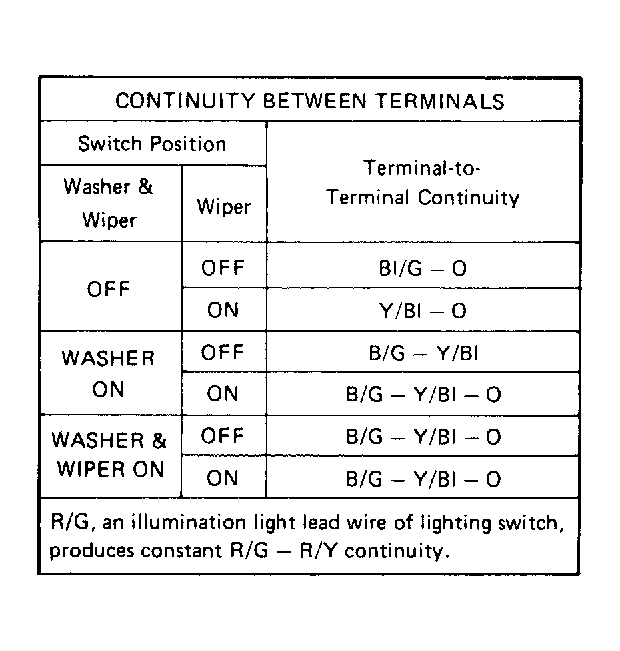

Fig 3: Testing Front Wiper/Washer Switch (Swift)

Courtesy of SUZUKI OF AMERICA CORP.

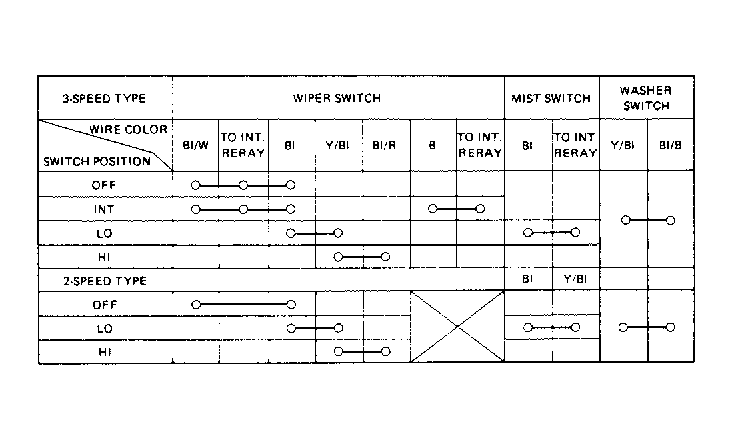

Fig 4: Testing Rear Wiper/Washer Switch (Swift & Sidekick)

Courtesy of SUZUKI OF AMERICA CORP.
