Code 25 - Air Temperature Sensor (ATS) Circuit Indication High

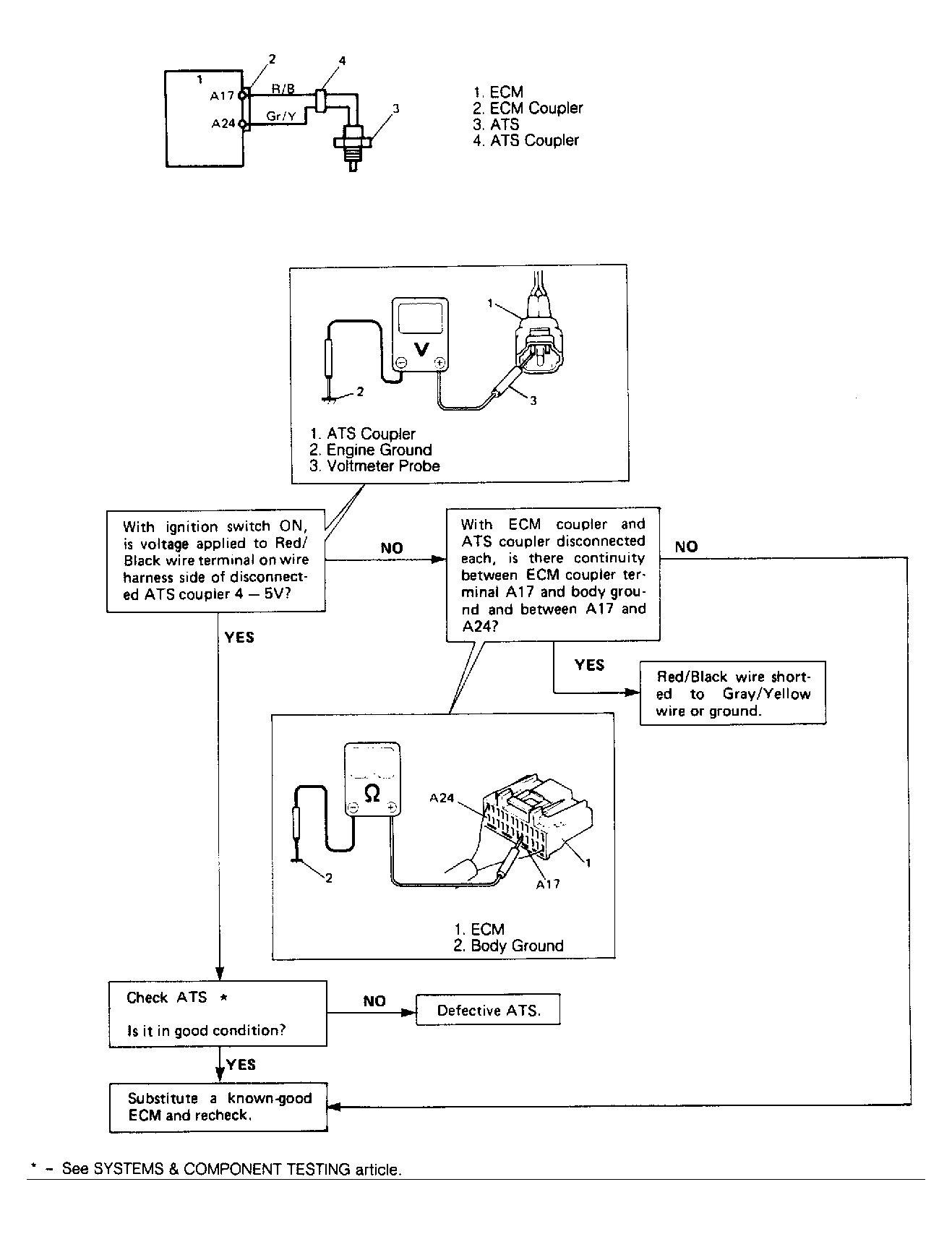

Fig 1: Code 25 Circuit Diagram & Flow Chart

G119597

Courtesy of SUZUKI OF AMERICA CORP.
