Code 23 - Air Temperature Sensor (ATS) Circuit Indication Low

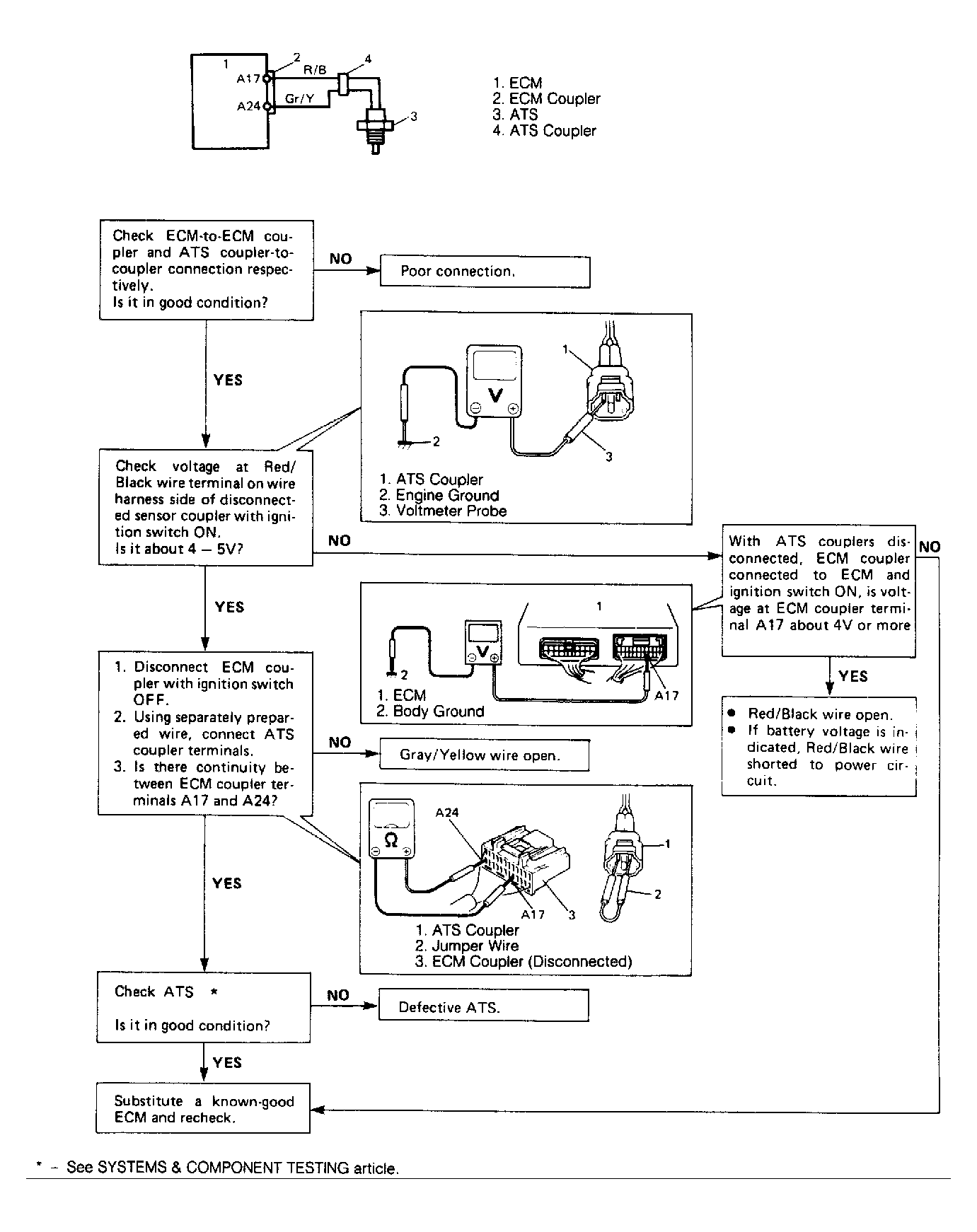

Fig 1: Code 23 Circuit Diagram & Flow Chart

G119596

Courtesy of SUZUKI OF AMERICA CORP.
