Code 44 - Idle Switch Circuit Open Or MISADJUSTED

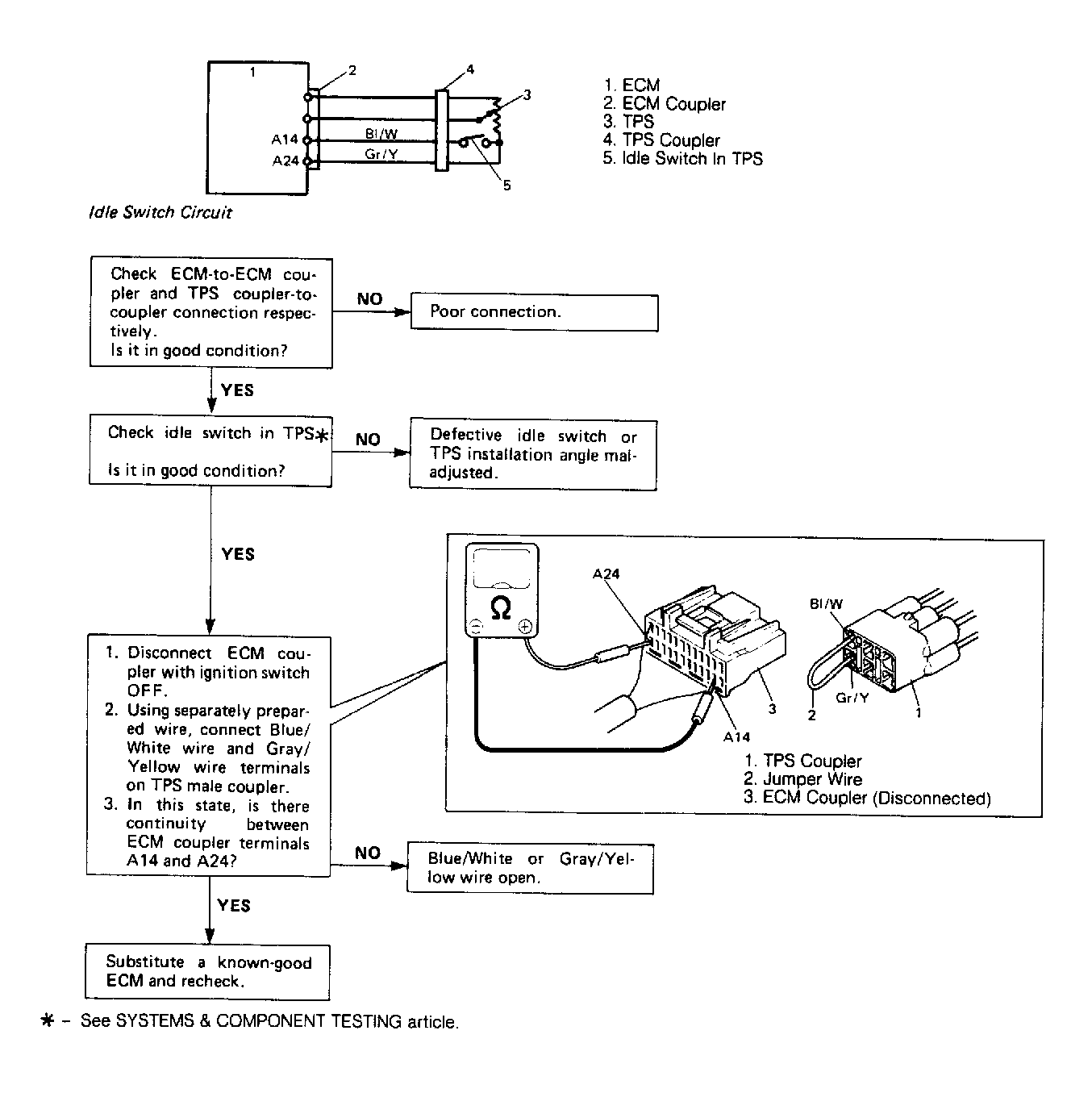

Fig 1: Code 44 Circuit Diagram & Flow Chart

G119603

Courtesy of SUZUKI OF AMERICA CORP.
