Code 42 - Gear Position (5TH Switch) Circuit Grounded (M/T)

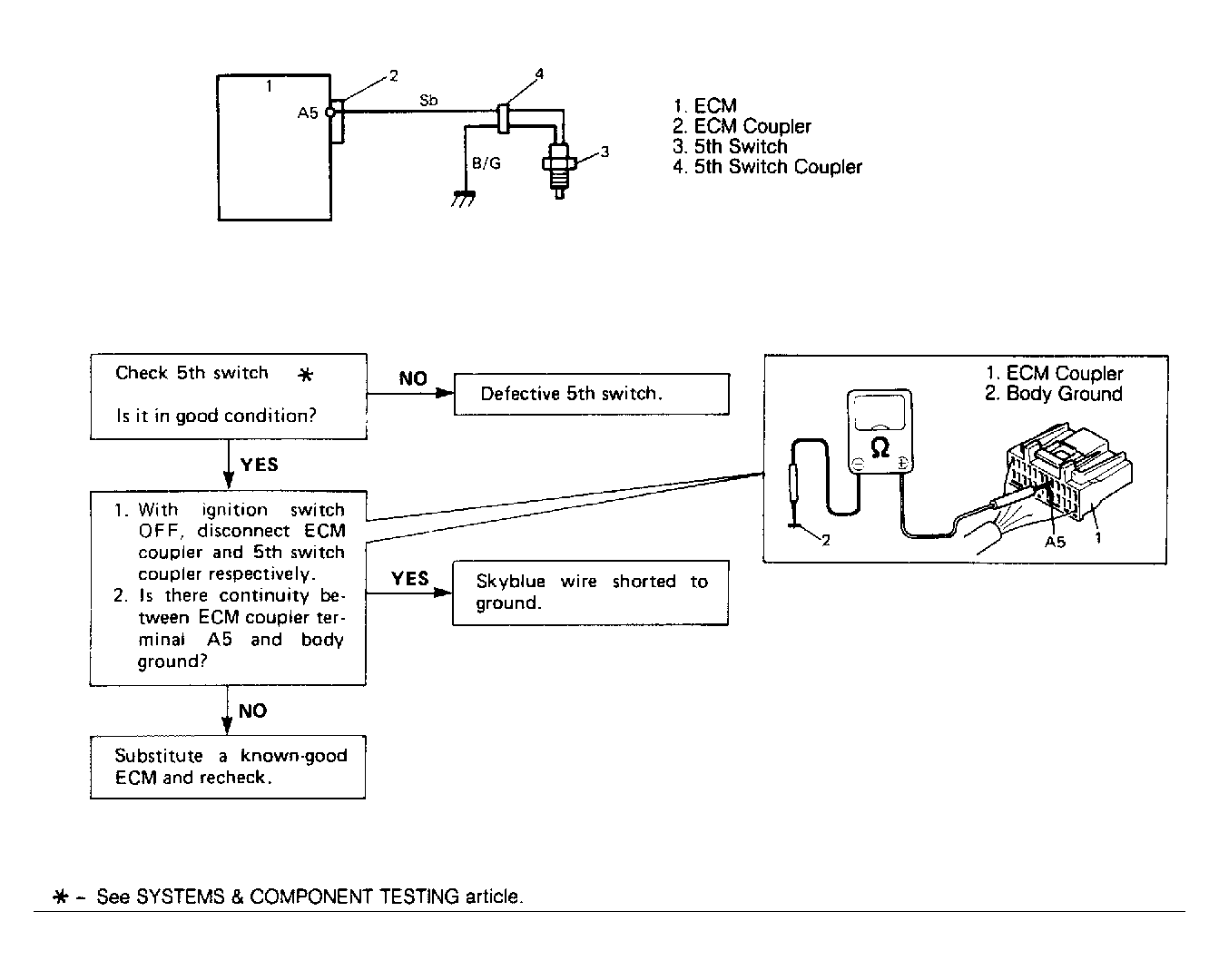

Fig 1: Code 42 Circuit Diagram & Flow Chart

G119601

Courtesy of SUZUKI OF AMERICA CORP.
