Fuse Panel Identification (1990-93): Notes

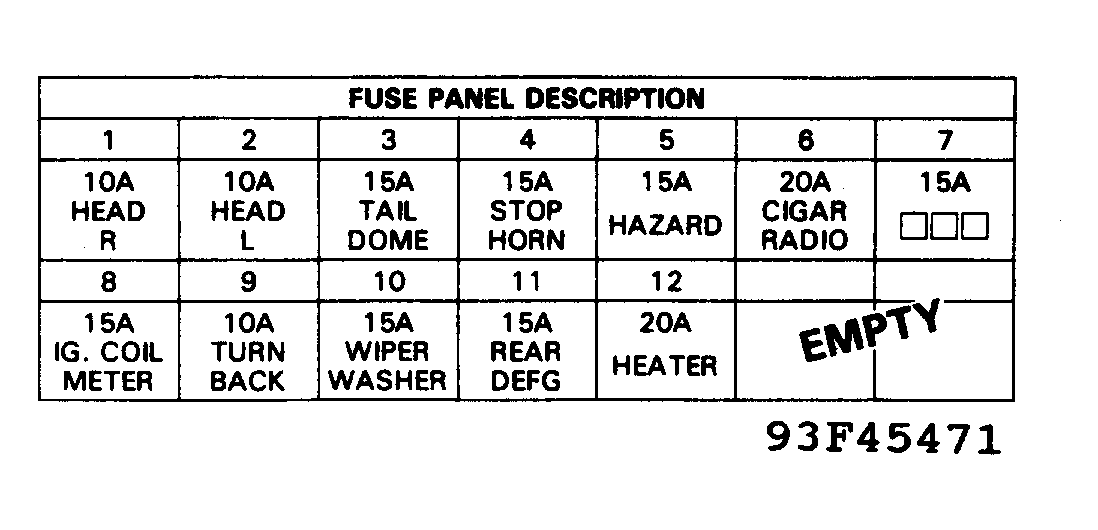

Fig 1: Fuse Panel Identification (1990-93)

G93F45471

Courtesy of SUZUKI OF AMERICA CORP.
