Power Moding Schematics

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

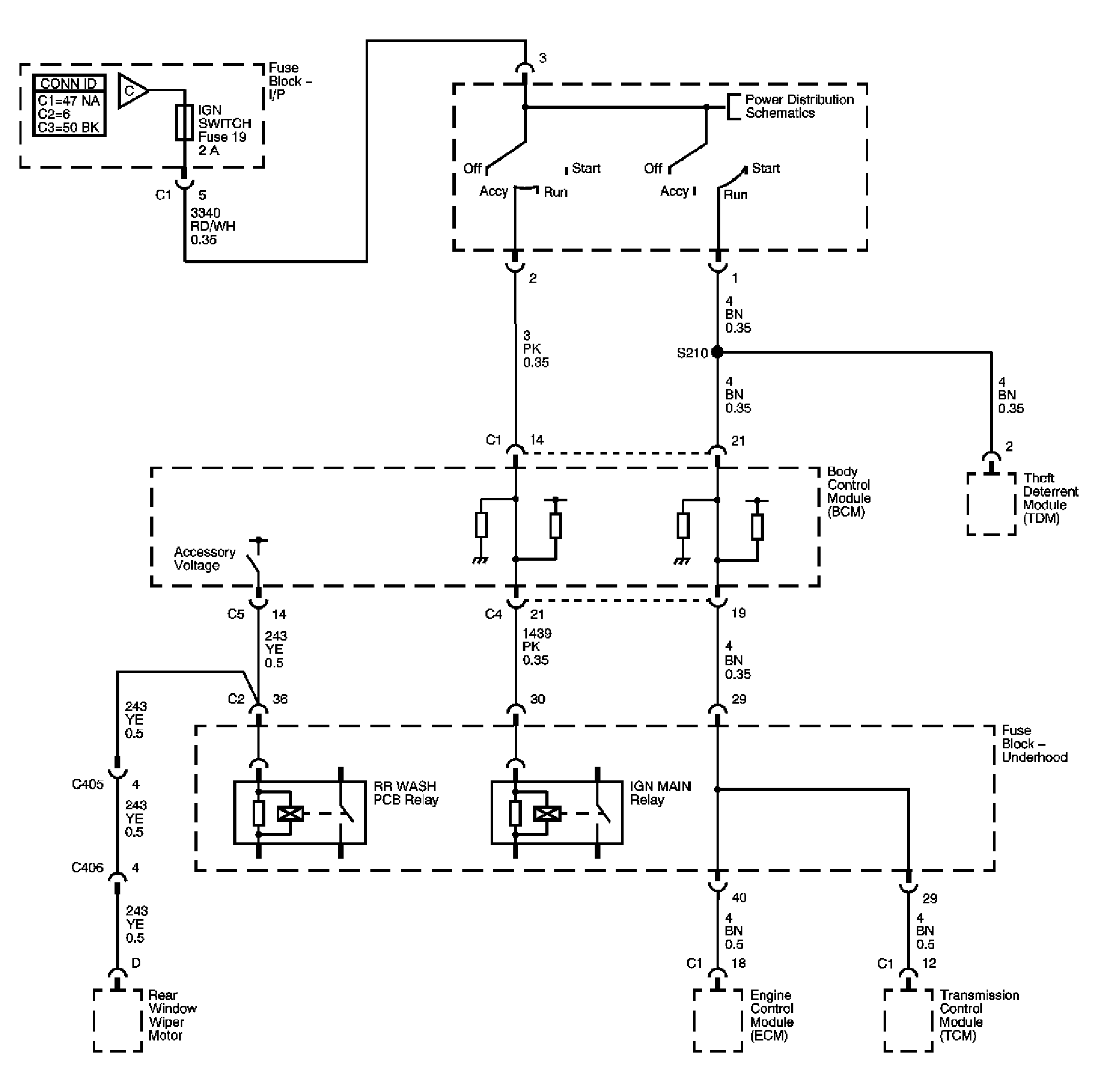

Fig 1: Power Moding Schematic
GM1843660Courtesy of GENERAL MOTORS CORP.
