Power Distribution Schematics

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

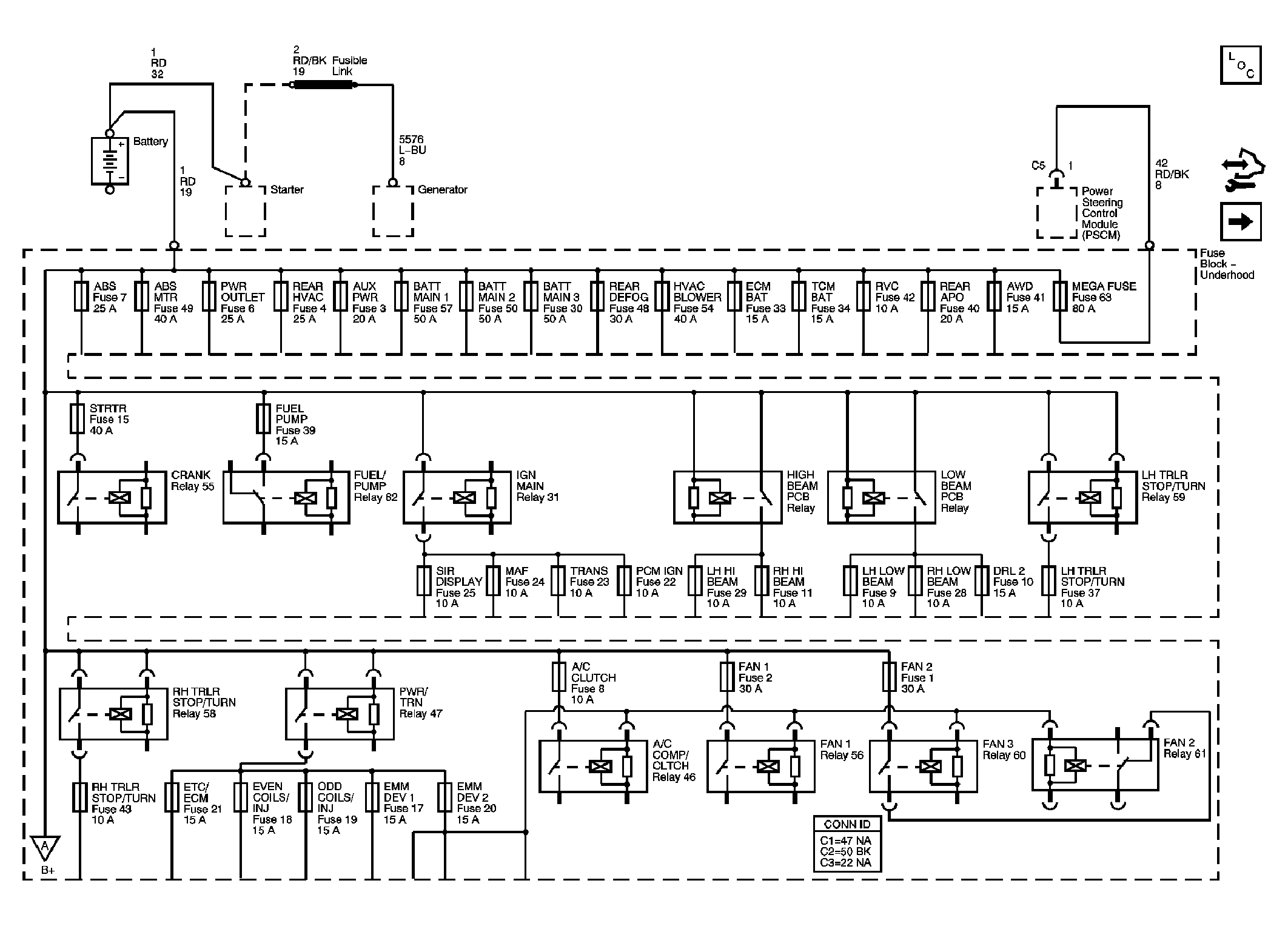

Fig 1: B+ BUS Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

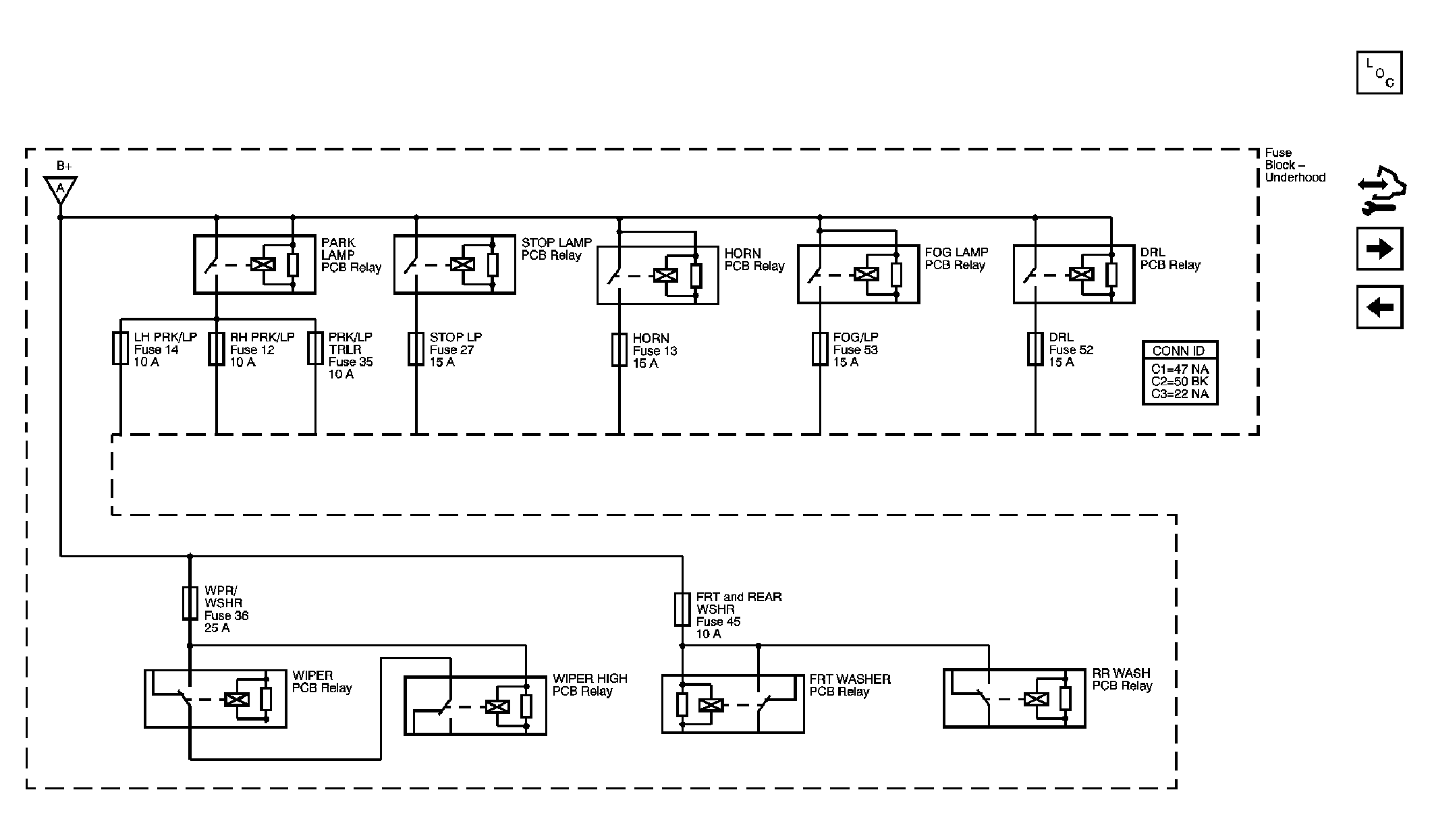

Fig 2: B+ BUS Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

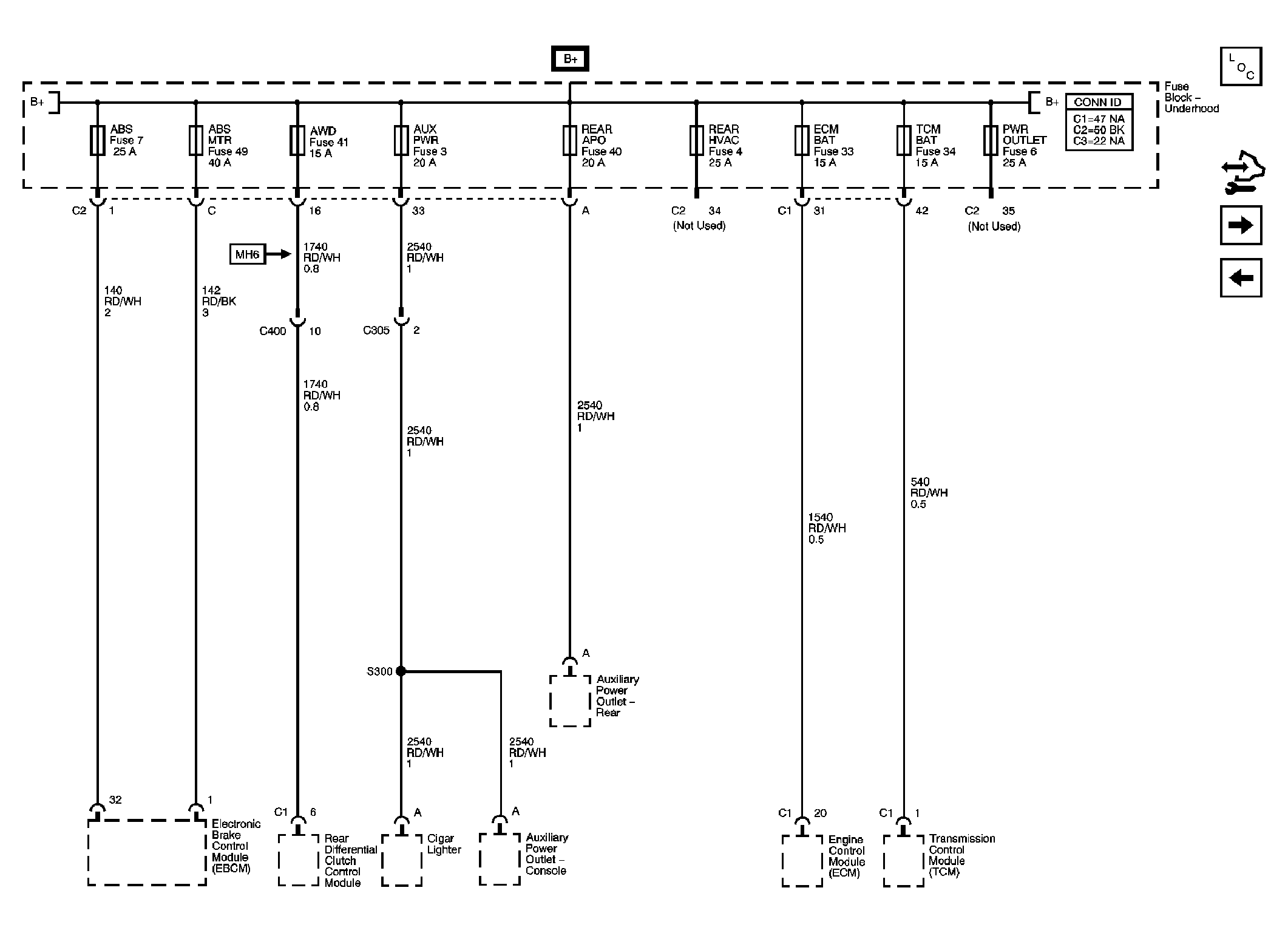

Fig 3: ABS, ABS MTR, AUX PWR, AWD, ECMBAT, PWR OUTLET, REAR APO, REAR HVAC and TCM BAT Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

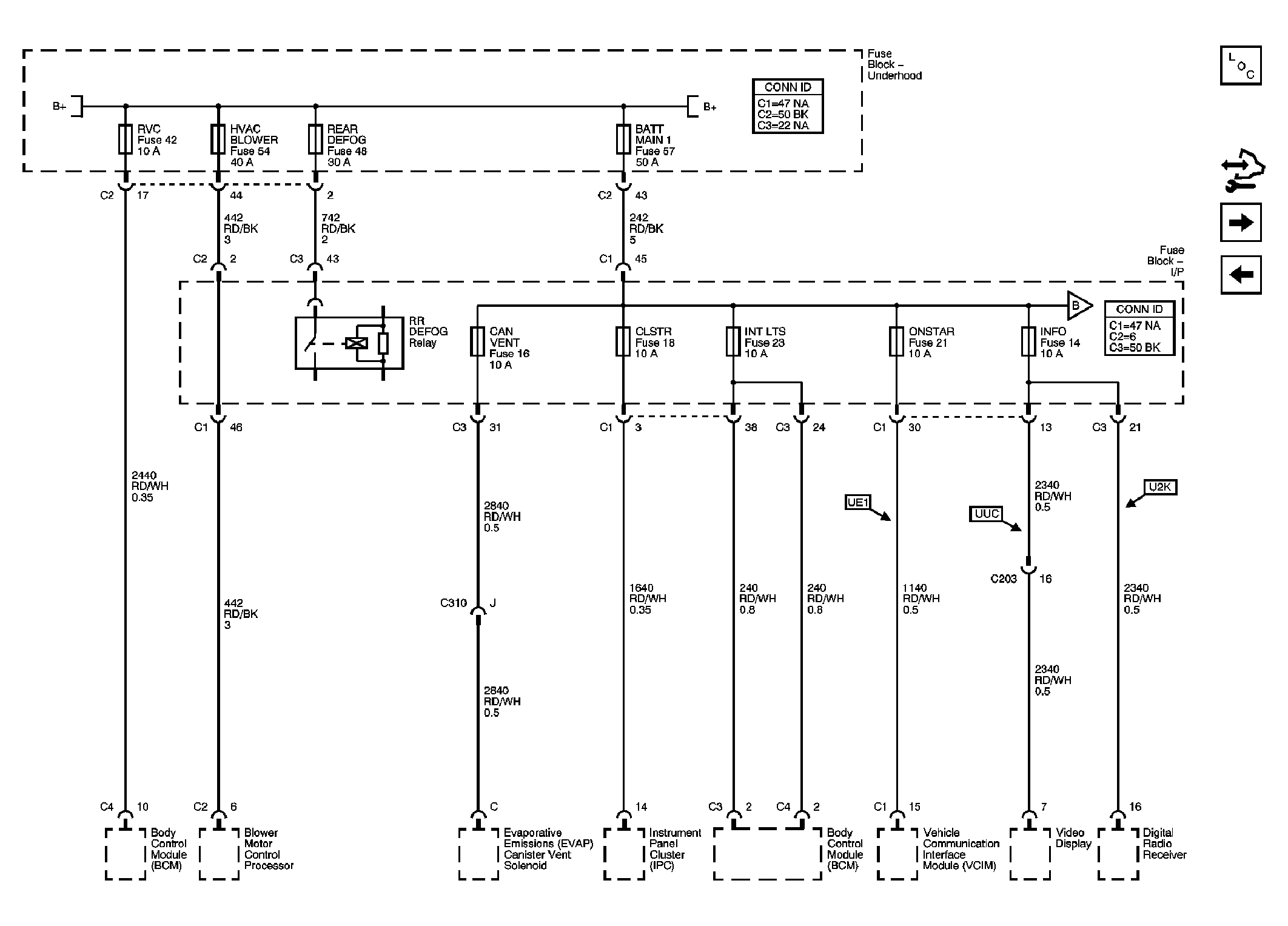

Fig 4: BATT MAIN 1, CAN VENT, CLSTR, HVAC BLOWER, INFO, INT LTS, ONSTAR, REAR DEFOG and RVC Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

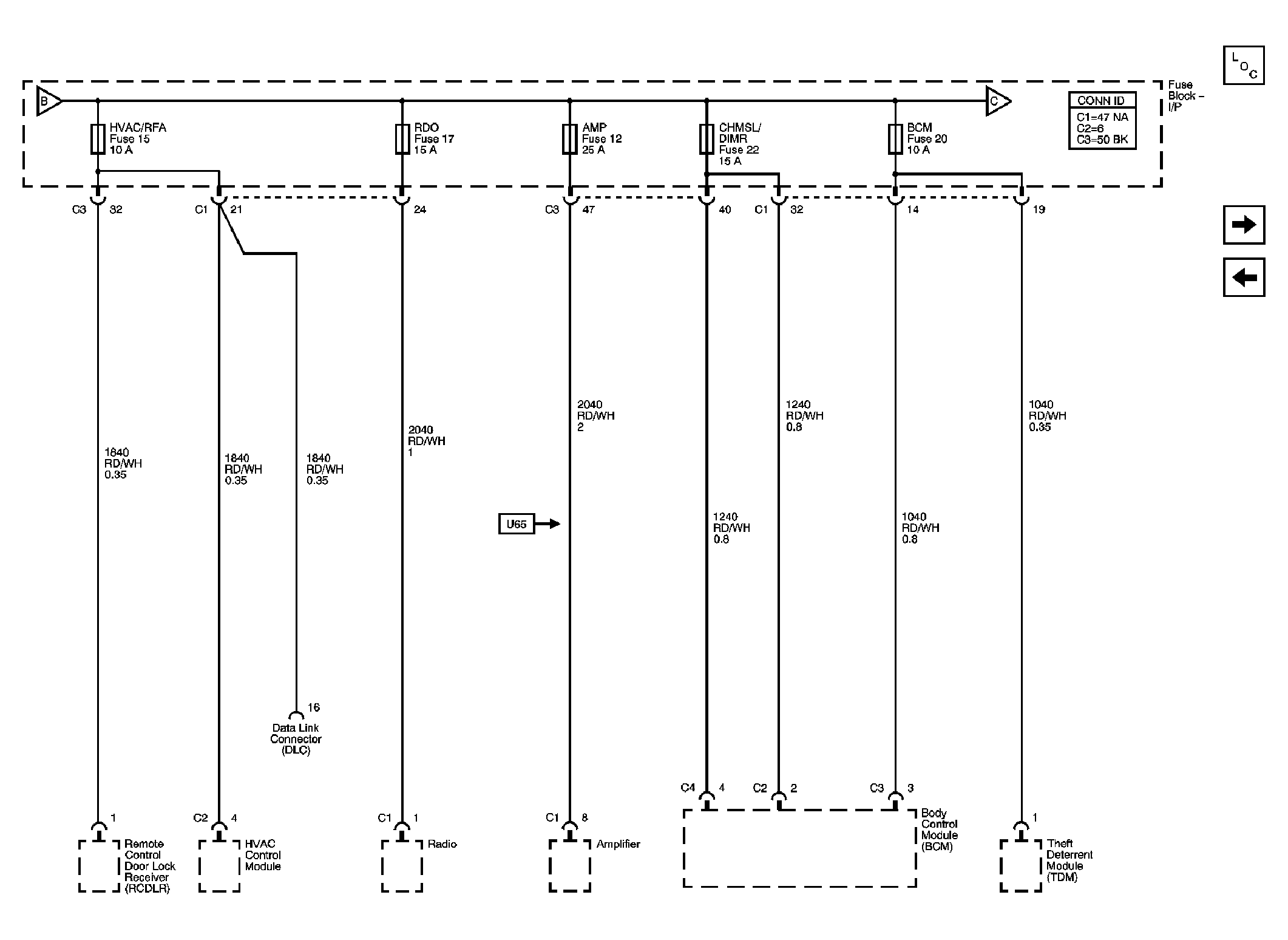

Fig 5: AMP, BCM, CHMSL/DIMR, HVAC/RFA and RDO Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

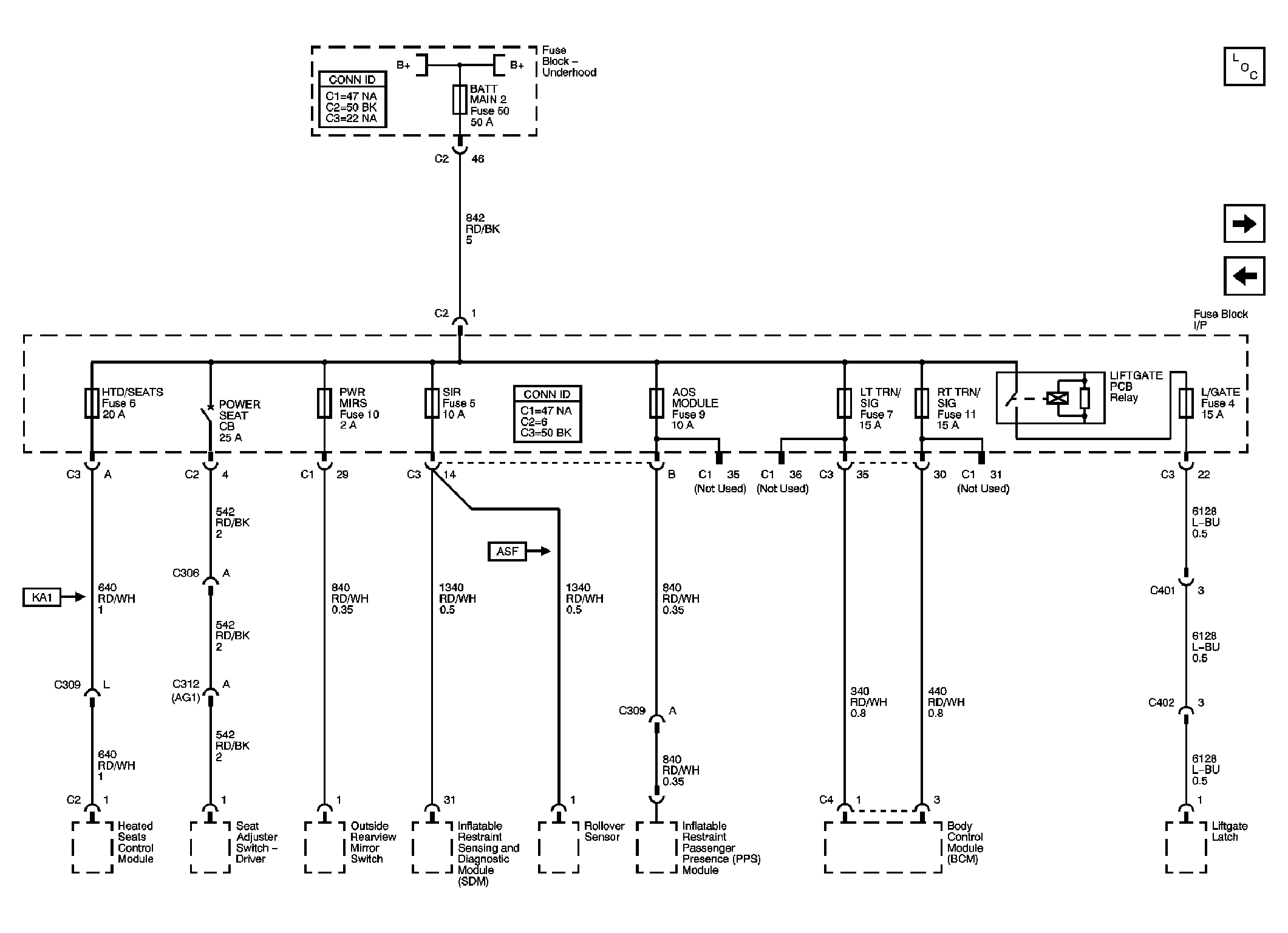

Fig 6: AOS MODULE, BATT MAIN 2, HTD/SEATS, L/GATE, LT TRN/SIG, PWR MIRS, RT TRN/SIG and SIR Fuses and POWER SEATS Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.

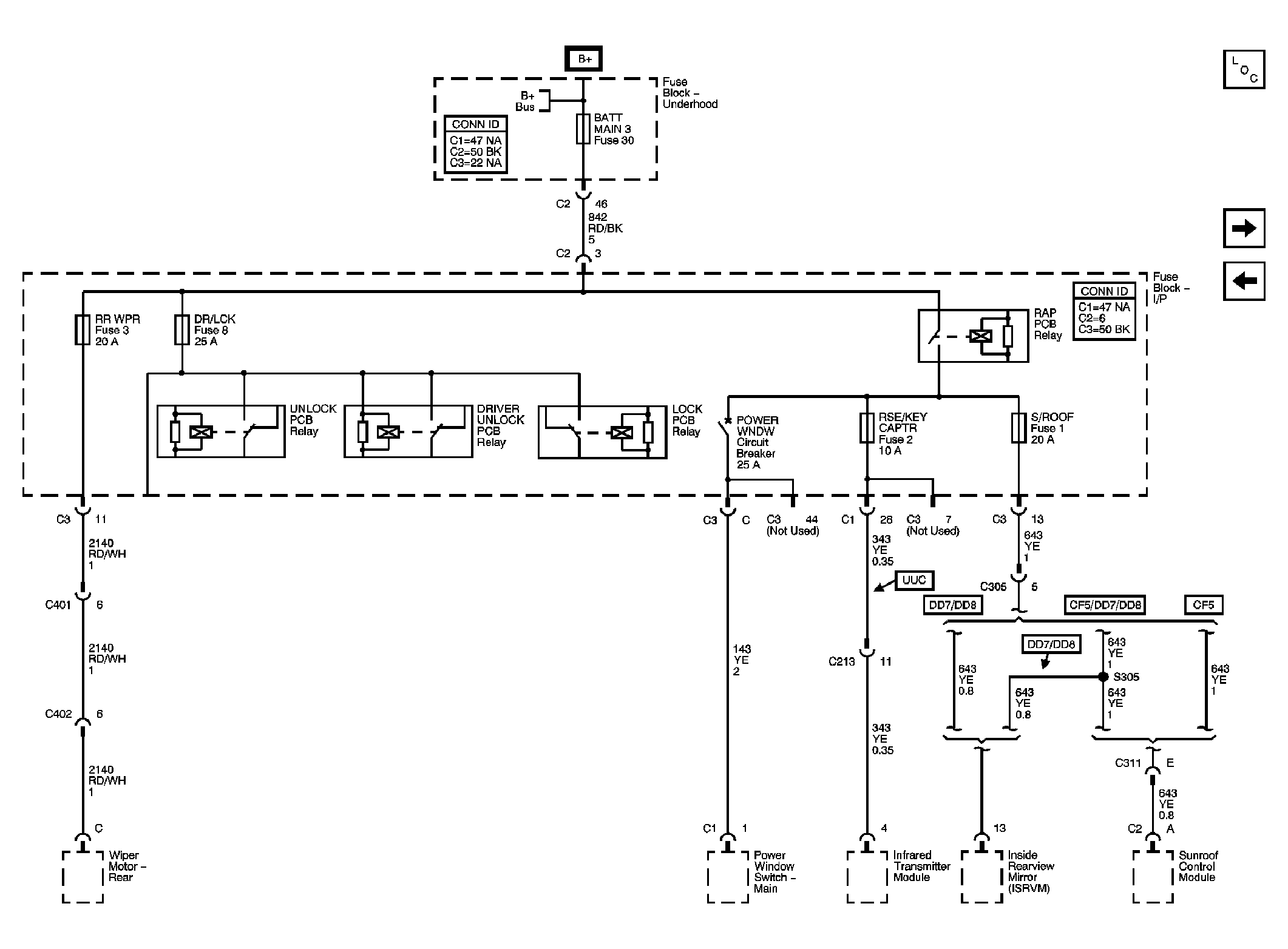

Fig 7: BATT MAIN 3, DR/LCK, RRWPR, RSE/KEY CAPTR and S/ROOF Fuses and POWER WNDW Schematic

Courtesy of GENERAL MOTORS CORP.

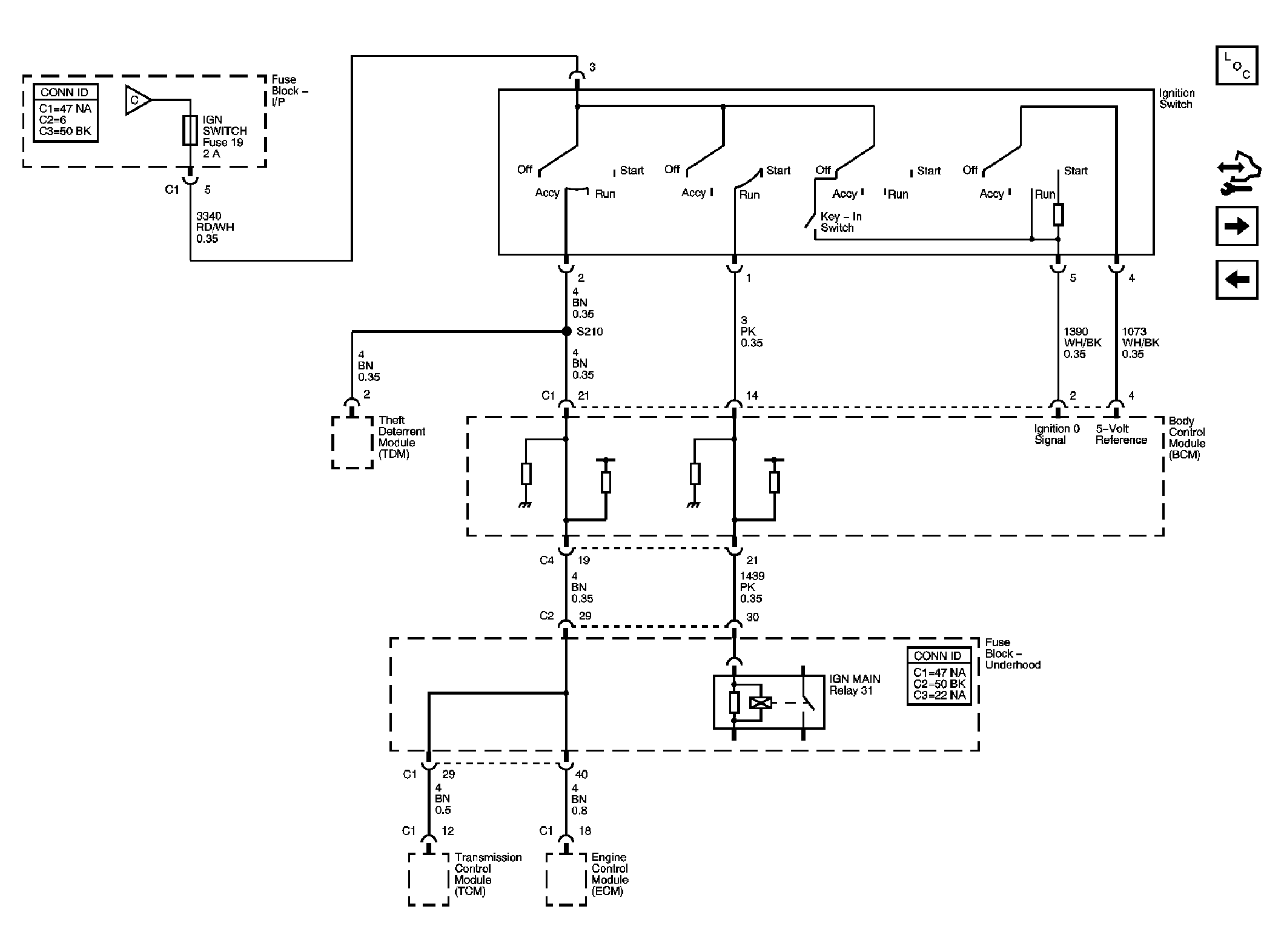

Fig 8: IGN SWITCH, Fuse and Ignition Switch Schematic

Courtesy of GENERAL MOTORS CORP.

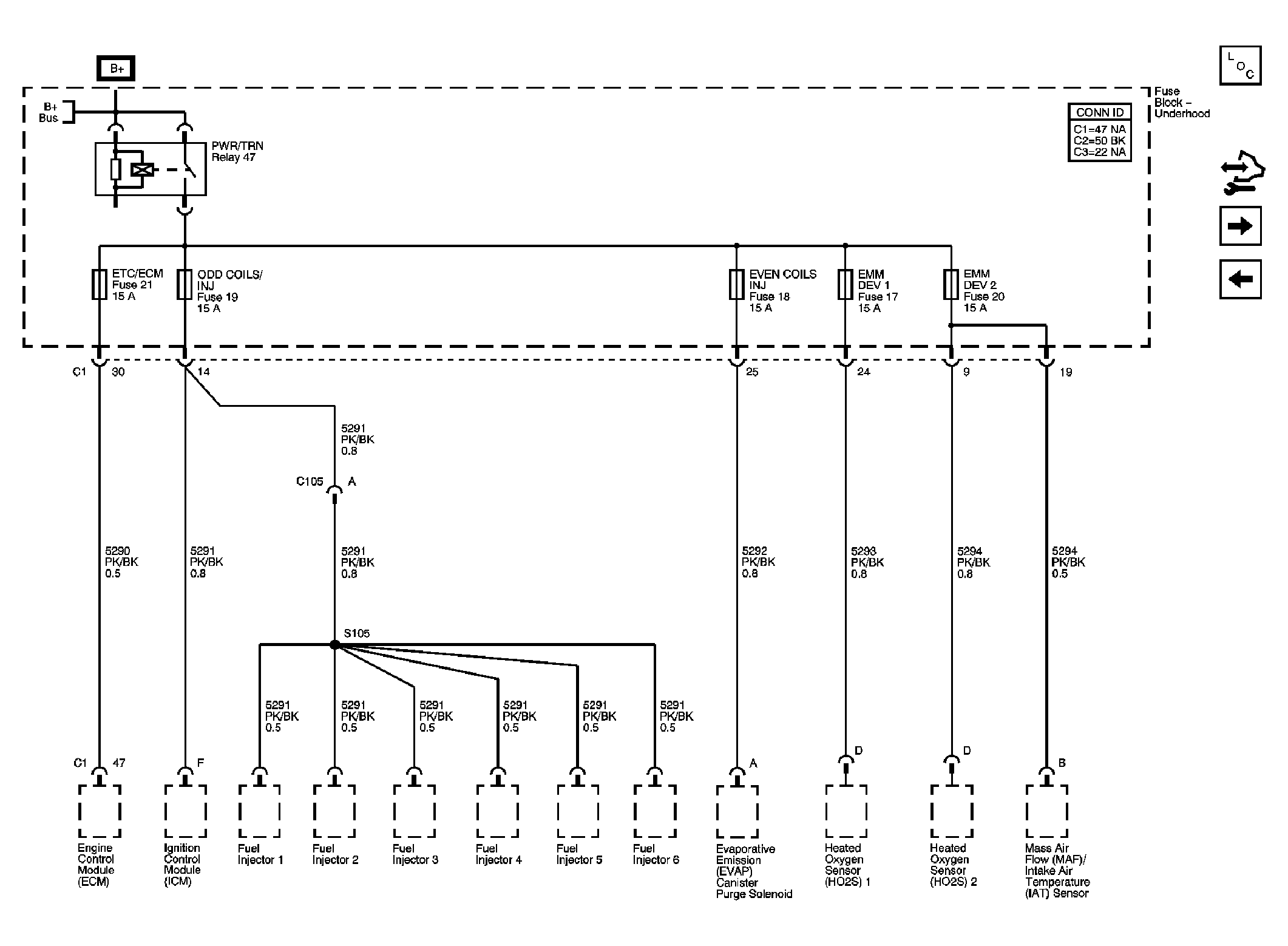

Fig 9: PWR/TRN BUS - EMM DEV1, EMM DEV2, ETC/ECM, EVEN COILS/INJ AND ODDCOILS/INJ Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

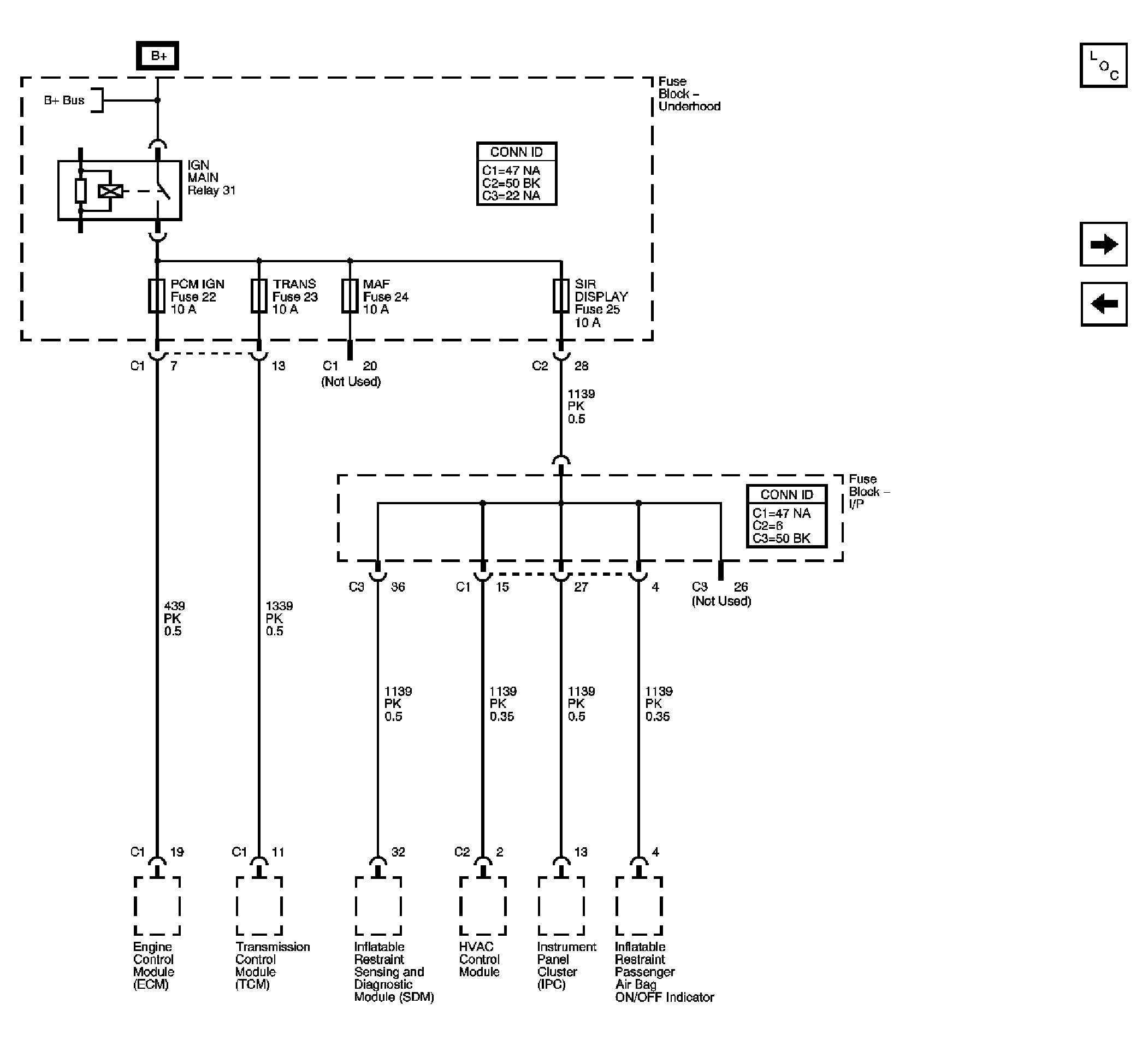

Fig 10: RUN/CRANK BUS - MAF, PCM, IGN, SIR DISPLAY and TRANS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

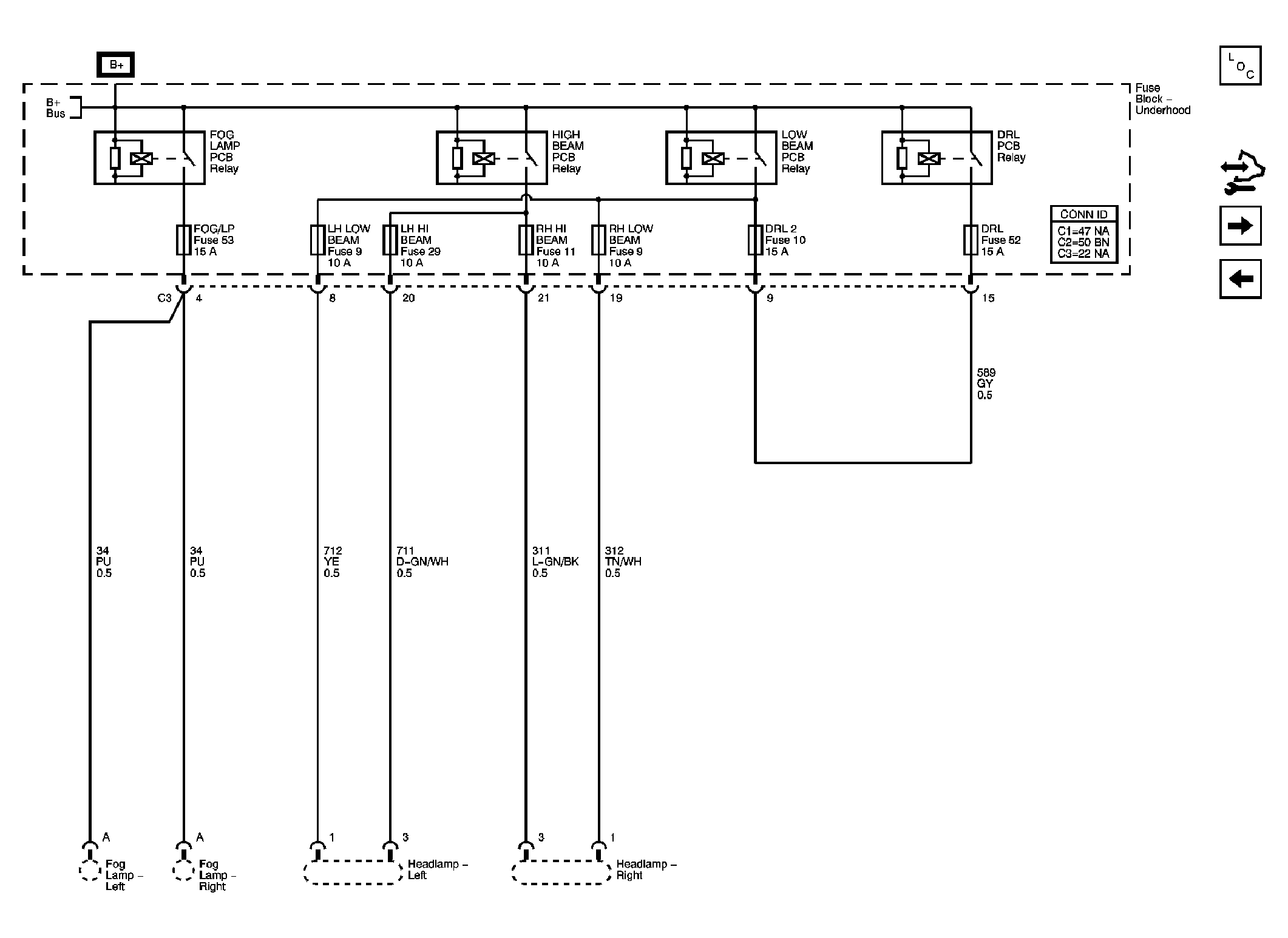

Fig 11: DRL, DRL2, FOG/LP, LH HIGH BEAM, LH LOW BEAM, RH HIGH BEAM and RH LOW BEAM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

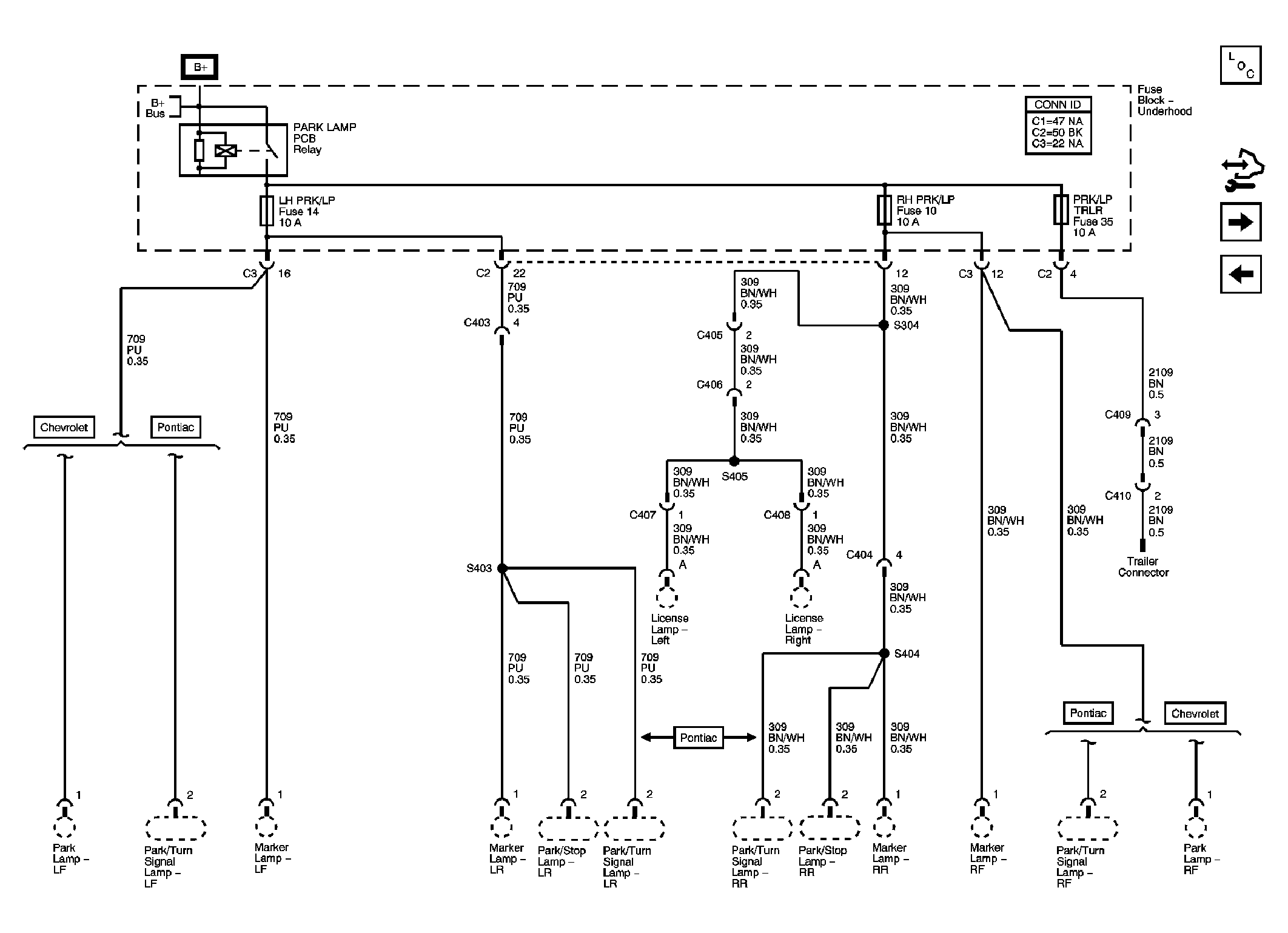

Fig 12: LH PRK/LP, RH PRK/LP and RH PRK/LP TRLR Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

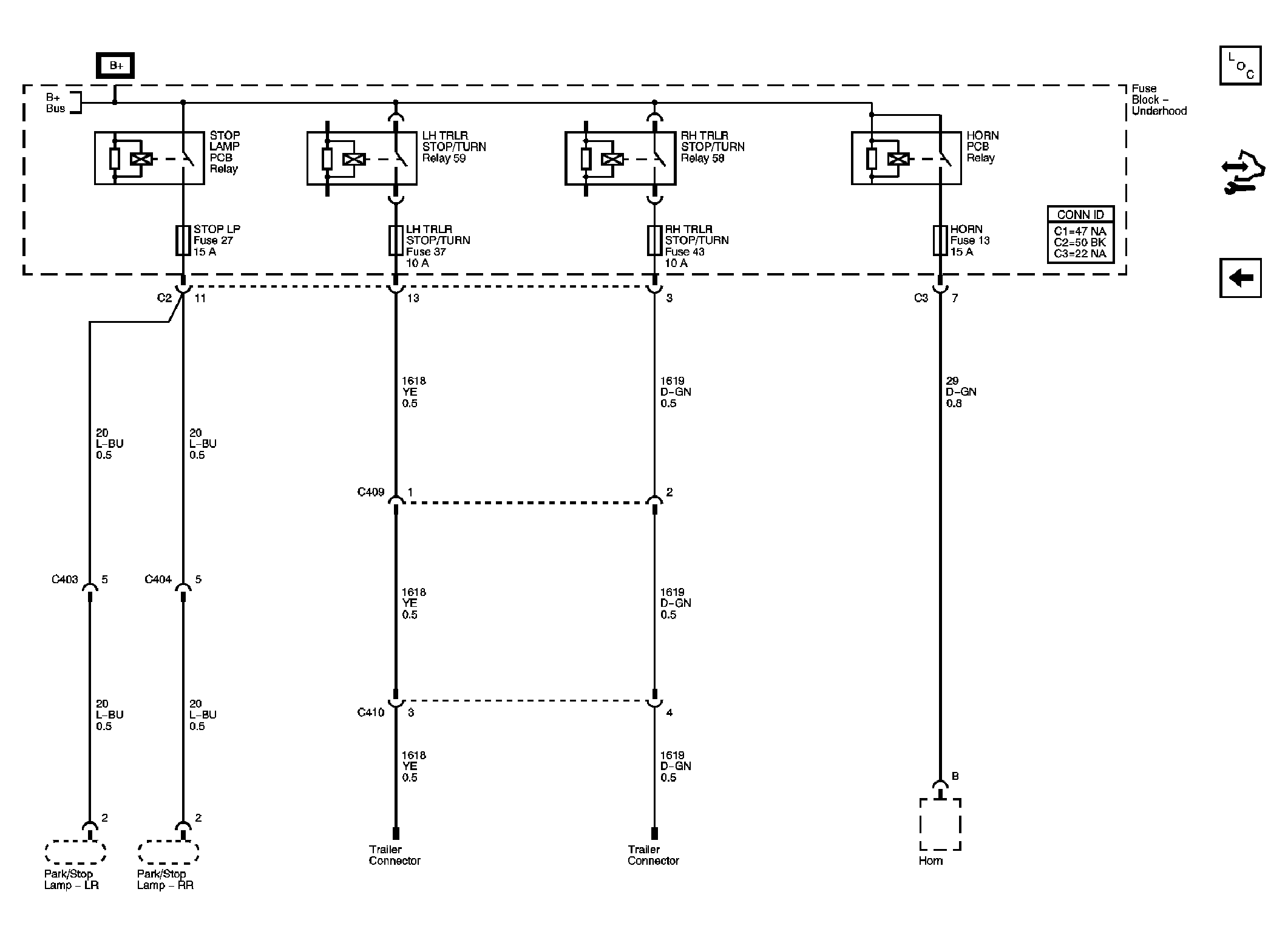

Fig 13: HORN, LH TRLR STOP/TURN, RH TRLR STOP/TURN and STOP LP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
