Power and Grounding Component Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

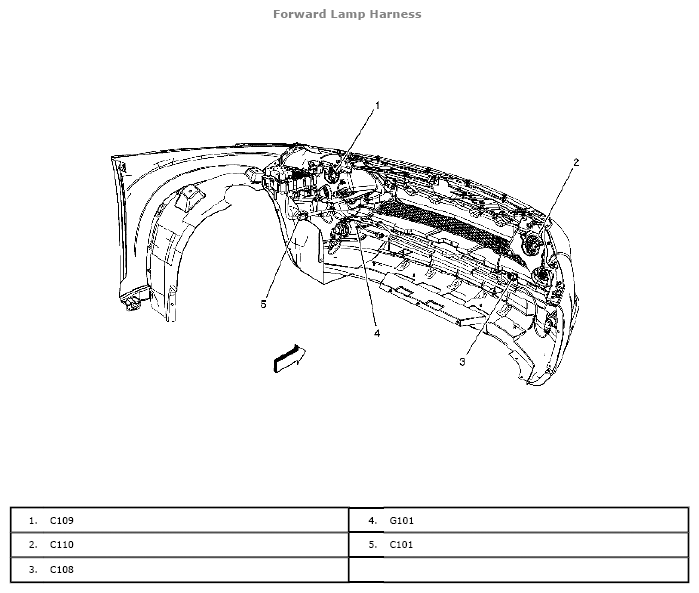

Fig 1: Identifying Forward Lamp Harness Power & Grounding Components

Courtesy of SUZUKI OF AMERICA CORP.

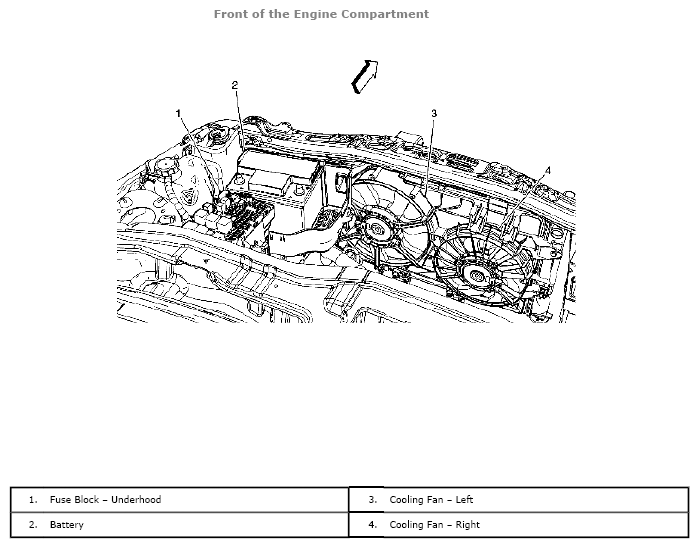

Fig 2: Identifying Front Of Engine Compartment Power & Grounding Components

Courtesy of SUZUKI OF AMERICA CORP.

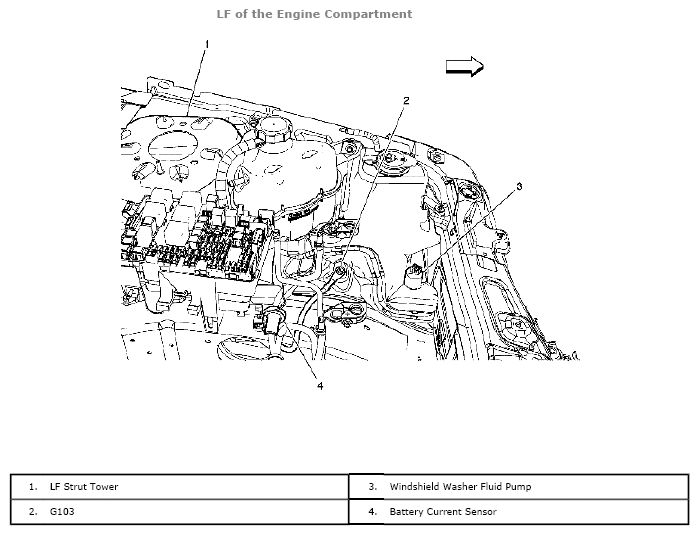

Fig 3: Identifying LF Of Engine Compartment Power & Grounding Component

Courtesy of SUZUKI OF AMERICA CORP.

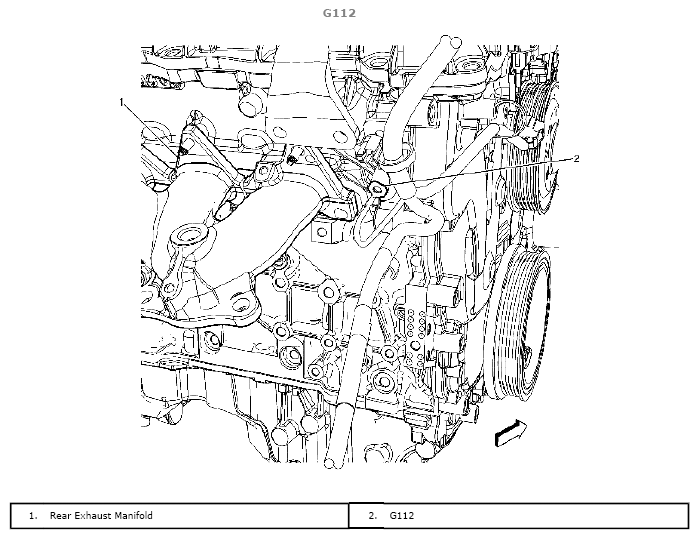

Fig 4: Identifying G112 Power & Grounding Component

Courtesy of SUZUKI OF AMERICA CORP.

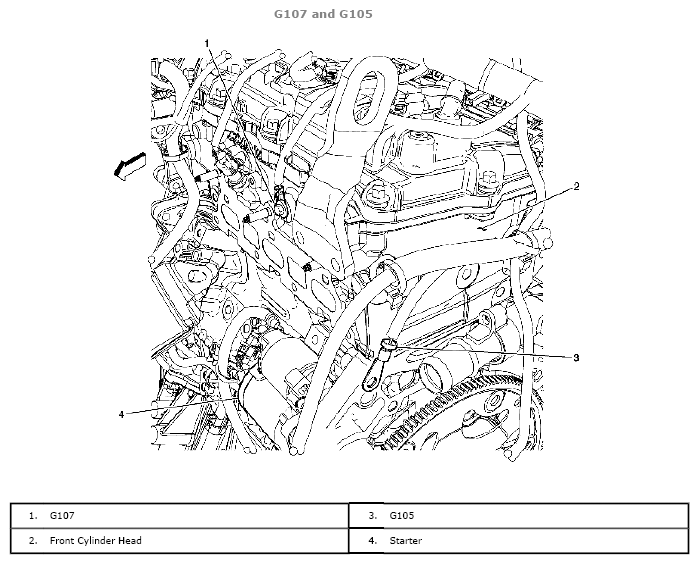

Fig 5: Identifying G107, G105 Power & Grounding Components

Courtesy of SUZUKI OF AMERICA CORP.

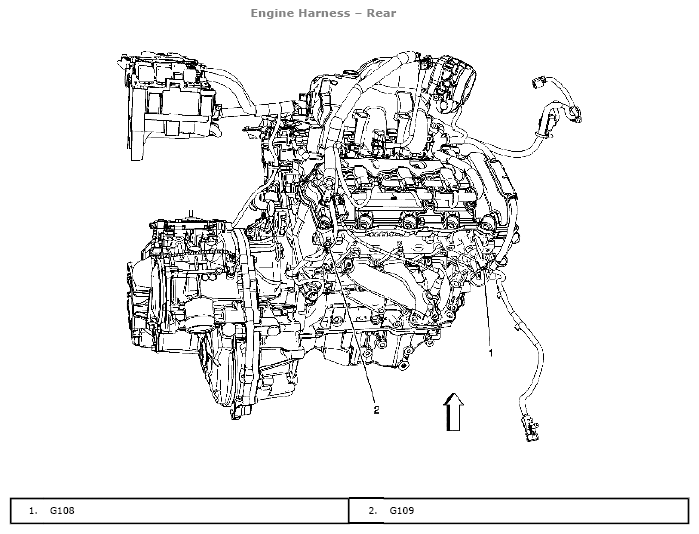

Fig 6: Identifying Engine Harness - Rear Power & Grounding Components

Courtesy of SUZUKI OF AMERICA CORP.

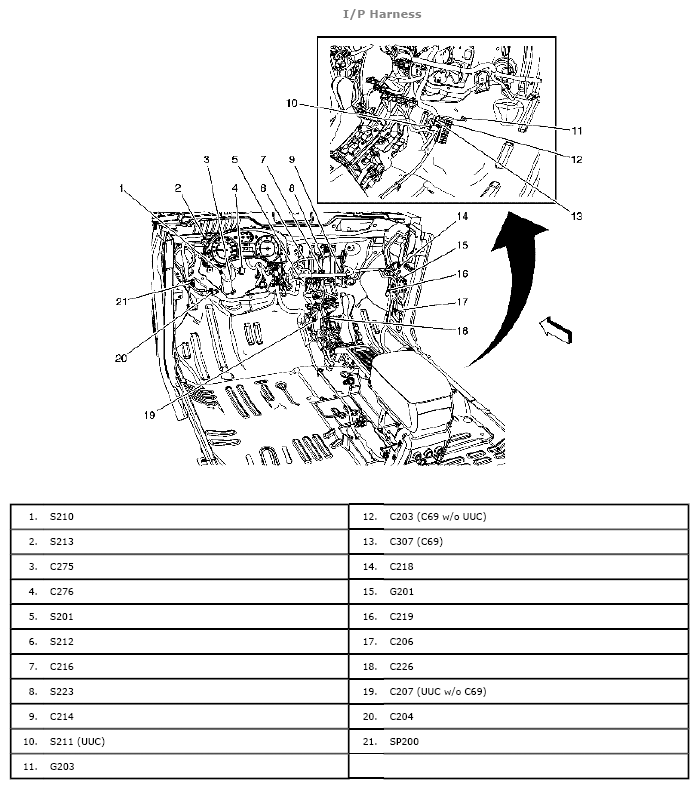

Fig 7: Identifying I/P Harness Power & Grounding Components

Courtesy of SUZUKI OF AMERICA CORP.

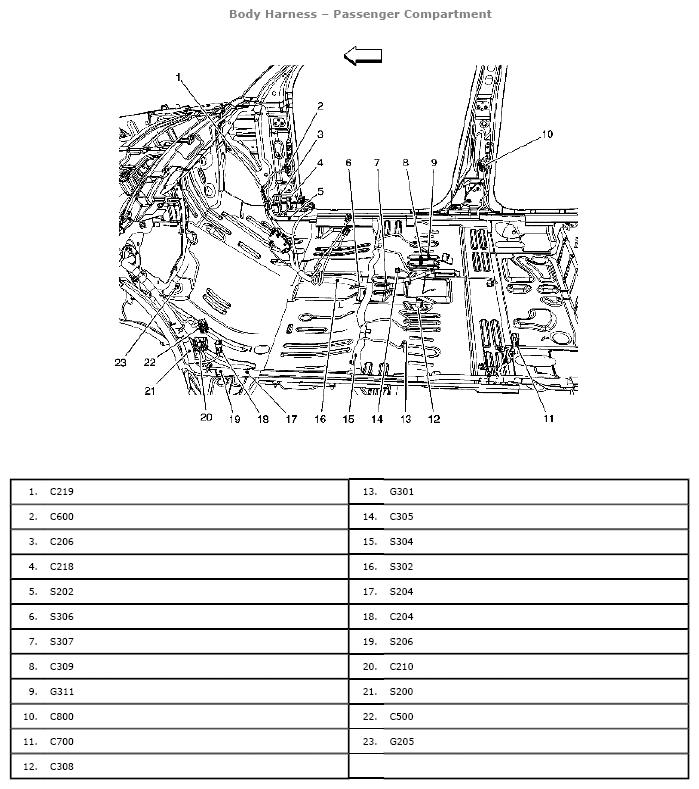

Fig 8: Identifying Body Harness - Passenger Compartment Power & Grounding Components

Courtesy of SUZUKI OF AMERICA CORP.

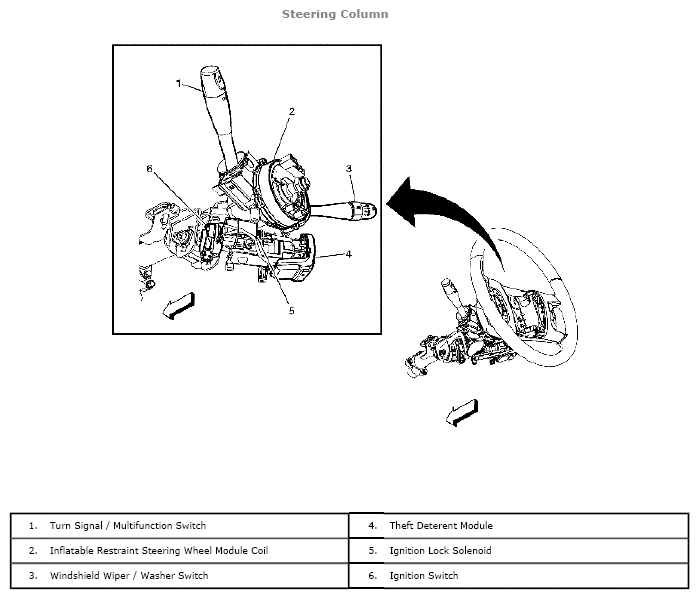

Fig 9: Identifying Steering Column Power & Grounding Components

Courtesy of SUZUKI OF AMERICA CORP.

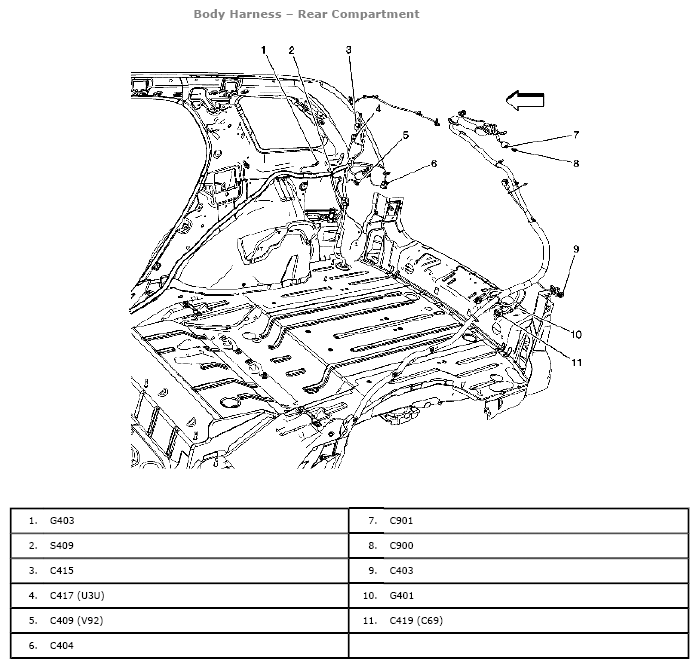

Fig 10: Identifying Body Harness - Rear Compartment Power & Grounding Components

Courtesy of SUZUKI OF AMERICA CORP.
