Multi View Monitor (Diagnostics): Electrical Component Location: Location

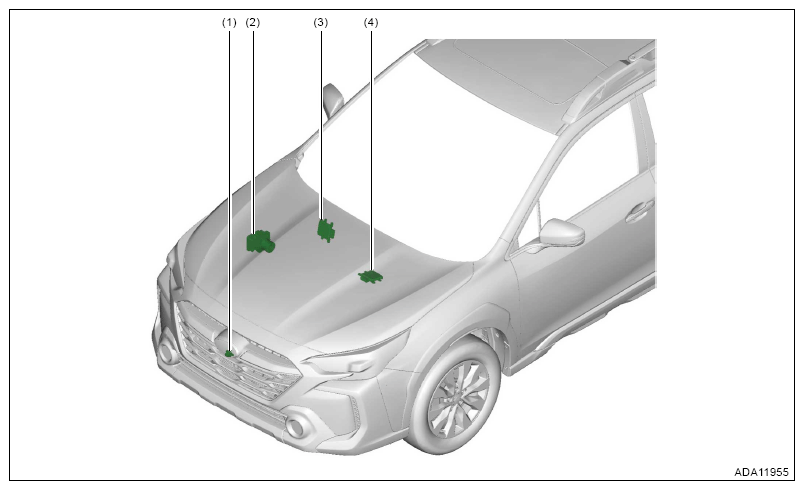

| (1) | Front view monitor camera |
| (2) | VDC Control Module |
| (3) | TCM (engine type FA) |
| (4) | TCM (engine type FB) |

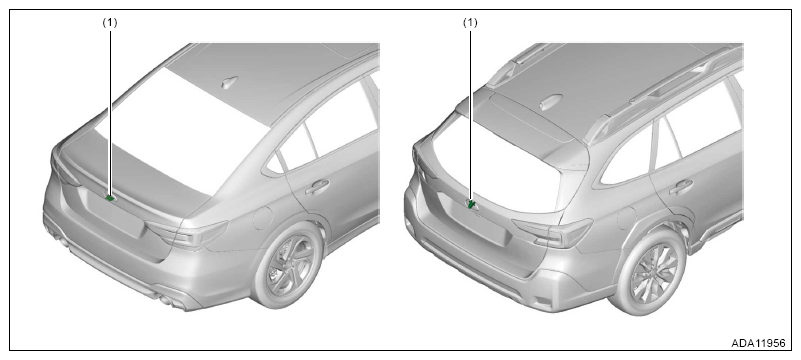

| (1) | Rearview monitor camera |

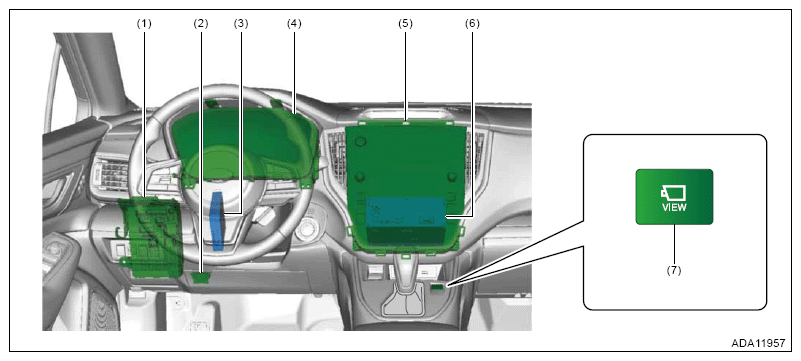

| (1) | Body integrated unit |
| (2) | Data link connector |
| (3) | Camera Control Module |
| (4) | Combination meter |
| (5) | Center information display |
| (6) | Cockpit control module |
| (7) | View button |
