Diagnostic Procedure for Subaru Select Monitor Communication: Inspection
Detecting condition:
Defective harness connector
Trouble symptom:
Communication is impossible between the steering angle sensor and Subaru Select Monitor.

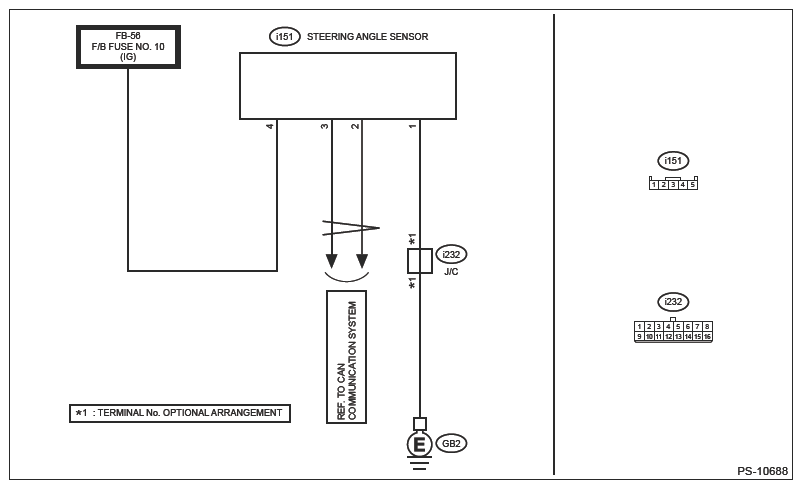

Wiring diagram:
Vehicle dynamics control system Ref. to WIRING SYSTEM>VEHICLE DYNAMICS CONTROL SYSTEM>WIRING DIAGRAM .
- CHECK IGNITION SWITCH
.
Is the ignition switch ON?
Yes: Go to 2.
No: Turn the ignition switch to ON, and select the [Steering Angle Sensor] using the Subaru Select Monitor.
- CHECK BATTERY
.
- Turn the ignition switch to OFF.
- Measure the battery voltage.
Is the voltage 11 V or more?
Yes: Go to 3.
No: Charge or replace the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY>INSPECTION . Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>BATTERY .
- CHECK BATTERY TERMINAL
.
Is there poor contact at battery terminal?
Yes: Replace or tighten the battery terminal.
No: Go to 4.
- CHECK INSTALLATION OF STEERING ANGLE SENSOR CONNECTOR
.
Turn the ignition switch to OFF.
Is the steering angle sensor connector inserted into the steering angle sensor until the clamp locks?
Yes: Go to 5.
No: Insert the steering angle sensor connector into the steering angle sensor.
- CHECK LAN SYSTEM
.
Check the LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .
Is the check result OK?
Yes: Go to 6.
No: Perform the diagnosis for LAN system.
- CHECK SUBARU SELECT MONITOR COMMUNICATION
.
- Turn the ignition switch to ON.
- Check whether communication to steering angle sensor system can be executed normally.
Is the [Select Function] screen displayed?
Yes: Check the DTC of the steering angle sensor system. Ref. to STEERING ANGLE SENSOR>DIAGNOSTIC TROUBLE CODE (DTC) .
No: Go to 7.
- CHECK SUBARU SELECT MONITOR COMMUNICATION
.
Connect the Subaru Select Monitor to another vehicle to check whether the communication for initializing can be executed normally.
Does the Subaru Select Monitor communicate normally?
Yes: Go to 8.
No: Repair or replace the Subaru Select Monitor.
- CHECK POWER SUPPLY CIRCUIT
.
- Turn the ignition switch to ON. (Engine OFF)
- Measure the ignition power supply voltage between the steering angle sensor connector and chassis ground.
Connector & terminal
(i151) No. 4 (+) - Chassis ground (-):
Is the voltage 10 - 15 V?
Yes: Go to 9.
No: Repair the open circuit of harness between the steering angle sensor and battery.
- CHECK HARNESS CONNECTOR BETWEEN STEERING ANGLE SENSOR AND CHASSIS GROUND
.
- Turn the ignition switch to OFF.
- Disconnect the connector from steering angle sensor.
- Measure the resistance of harness between the steering angle sensor connector and chassis ground.
Connector & terminal
(i151) No. 1 - Chassis ground:
Is the resistance less than 10 Ω?
Yes: Go to 10.
No: Repair the open circuit of the steering angle sensor ground circuit and poor contact of connector.
- CHECK POOR CONTACT OF CONNECTOR
.
Is there poor contact of steering angle sensor power supply, ground circuit and data link connector?
Yes: Repair the connector.
No: Replace the steering angle sensor. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>STEERING ANGLE SENSOR .
