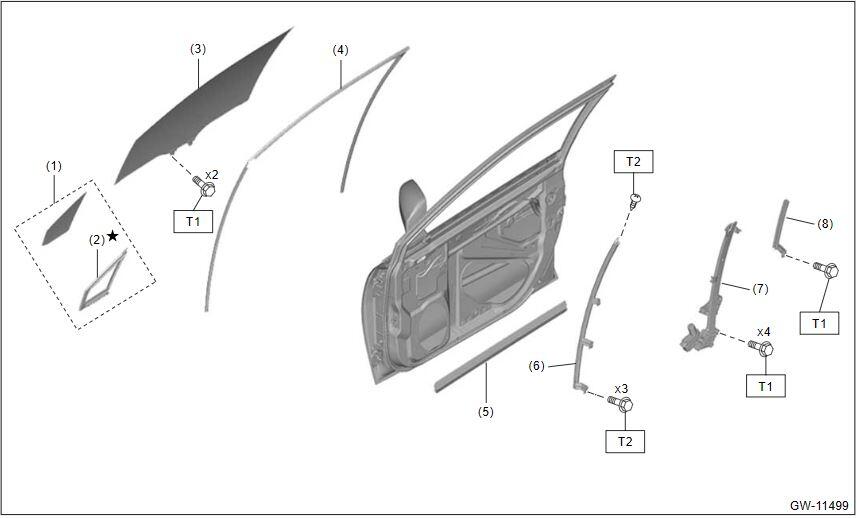

Front Door Glass
| (1) | Glass ASSY front door partition |
| (2) | Weather strip front door partition |
| (3) | Glass ASSY front door |
| (4) | Running channel front door |
| (5) | Weather strip inner front door |
| (6) | Sash ASSY partition |
| (7) | Regulator & motor ASSY front |
| (8) | Sash ASSY front door LWR |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: Ref. to GLASS/WINDOWS/MIRRORS>FRONT DOOR GLASS>INSTALLATION>FRONT DOOR PARTITION GLASS .
