System Block Diagram

G13632784Courtesy of SUBARU OF AMERICA, INC.

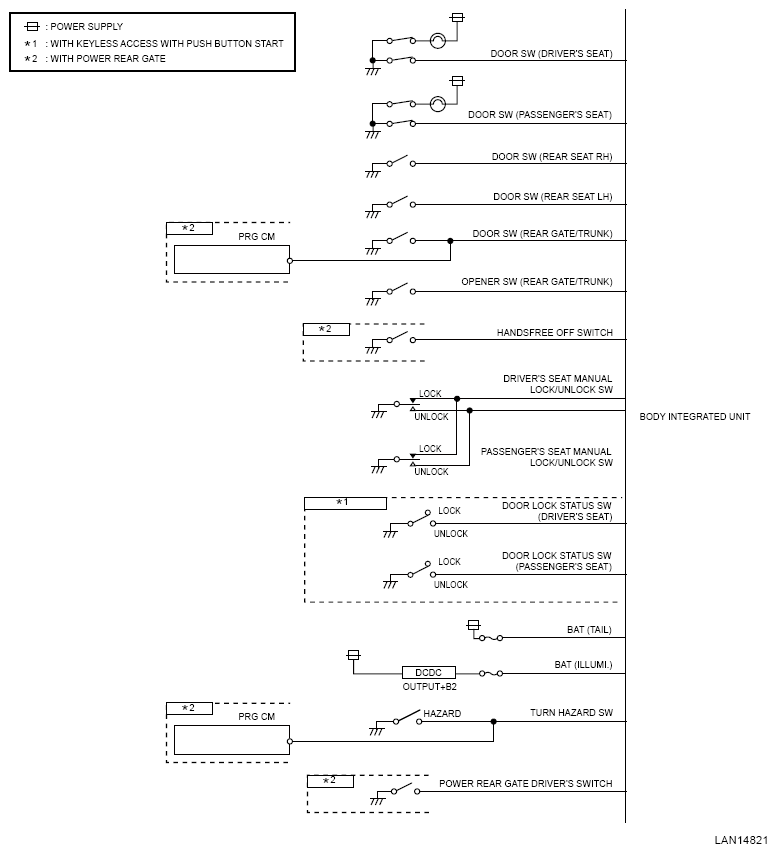

G16391174Courtesy of SUBARU OF AMERICA, INC.

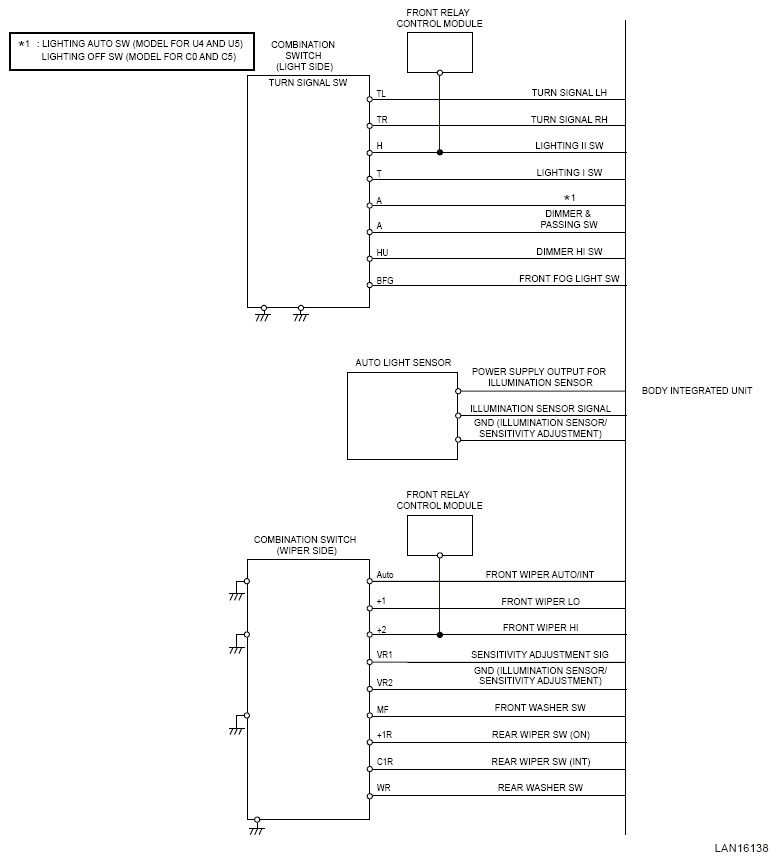

G16391175Courtesy of SUBARU OF AMERICA, INC.

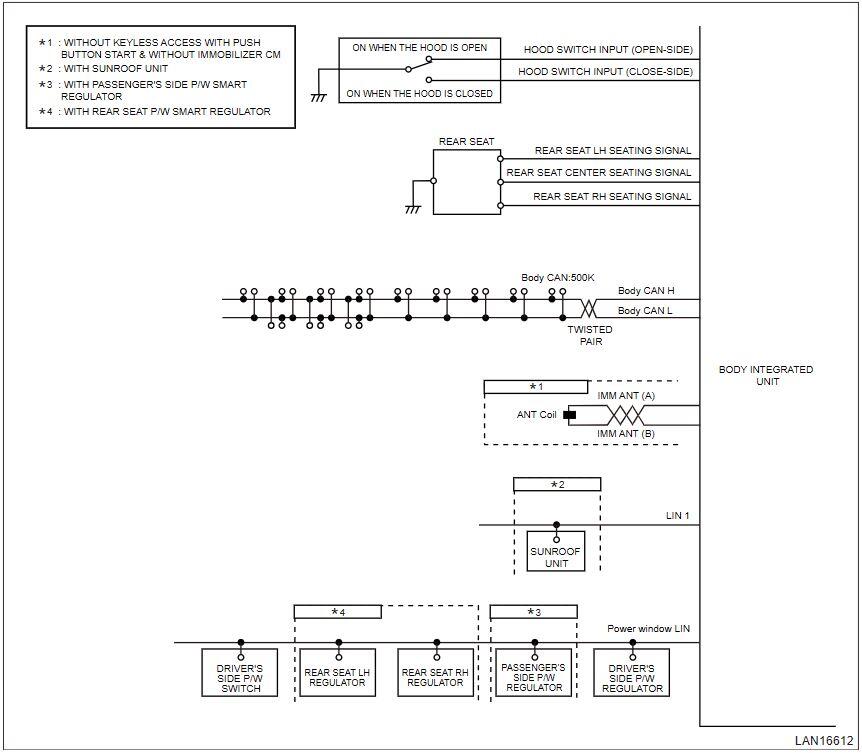

G00658249Courtesy of SUBARU OF AMERICA, INC.
G13632788Courtesy of SUBARU OF AMERICA, INC.

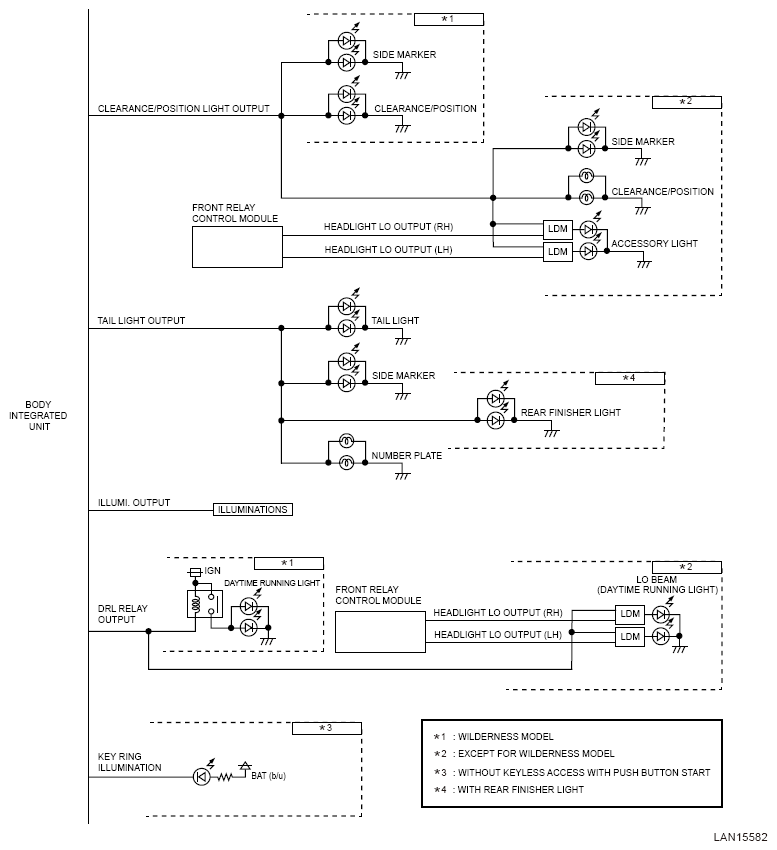

G16391178Courtesy of SUBARU OF AMERICA, INC.

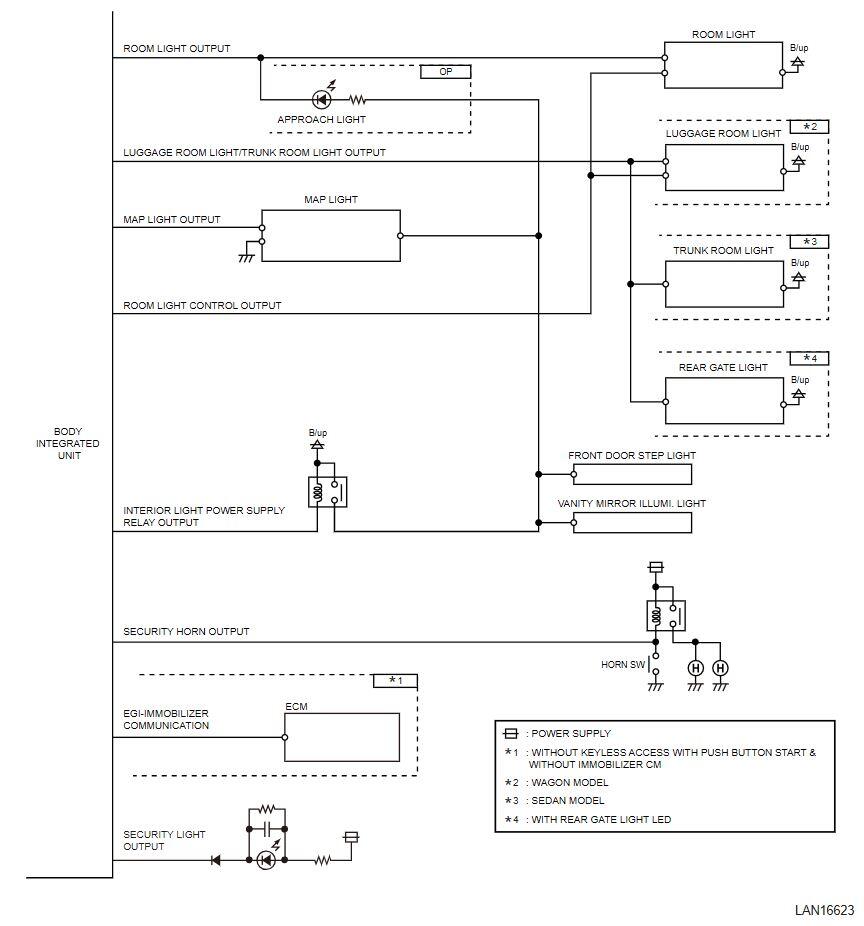

G00658250Courtesy of SUBARU OF AMERICA, INC.
