Sedan Model

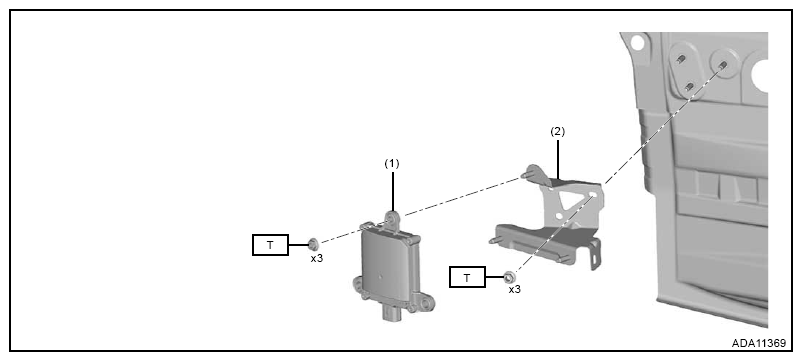

Fig 1: Radar Sensor Components Location - Sedan Model
G13079235Courtesy of SUBARU OF AMERICA, INC.
(1) Radar sensor (master & slave)
(2) Radar bracket

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
