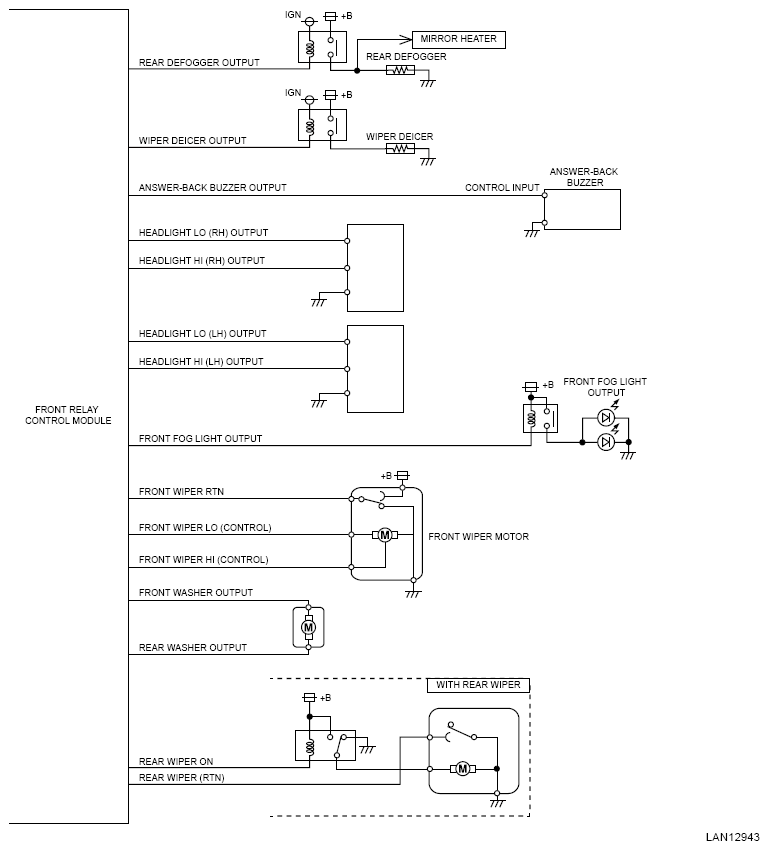

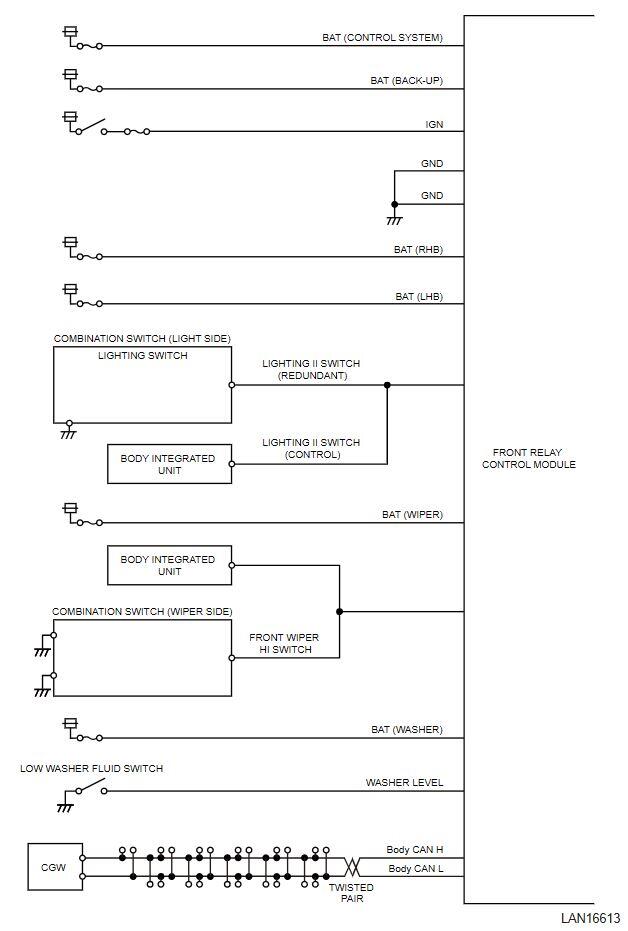

Home >> Subaru >> 2025 >> Outback Base >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Front Relay Control Module (Diagnostics) >> General Description >> System Block Diagram
