Electrical Specification

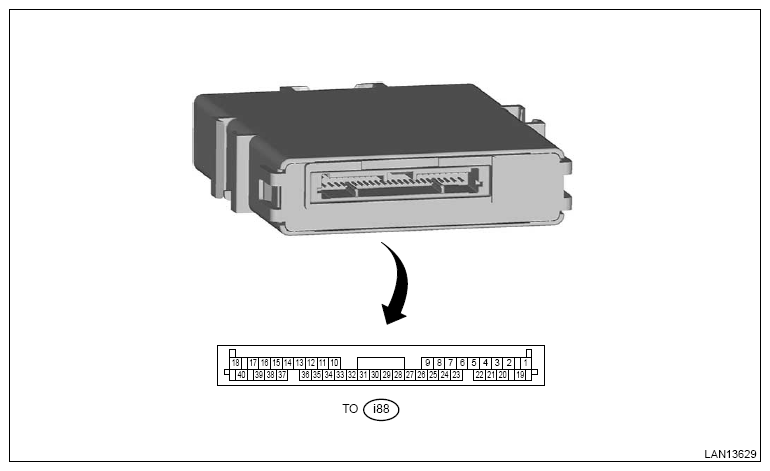

G13632678Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Item Measuring condition Standard
(i88) No. 1 ←→ Chassis ground Battery power supply Always 8 - 16 V
(i88) No. 2 ←→ Chassis ground ACC power supply ACC ON 8 - 16 V
(i88) No. 3 - - -
(i88) No. 4 - - -
(i88) No. 5 Body CAN-H Digital signal; cannot be measured -
(i88) No. 6 Body CAN-L Digital signal; cannot be measured -
(i88) No. 7 (I) Power unit 2 CAN-H Digital signal; cannot be measured -
(i88) No. 8 (I) Power unit 2 CAN-L Digital signal; cannot be measured -
(i88) No. 9 - - -
(i88) No. 10 - - -
(i88) No. 11 - - -
(i88) No. 12 (J)_Exterior connection CAN H terminator Digital signal; cannot be measured -
(i88) No. 13 (J)_Exterior connection CAN L terminator Digital signal; cannot be measured -
(i88) No. 14 - - -
(i88) No. 15 - - -
(i88) No. 16 DAIG CAN-H Digital signal; cannot be measured -
(i88) No. 17 DAIG CAN-L Digital signal; cannot be measured -
(i88) No. 18 ←→ Chassis ground GND Always 1 Ω or less
(i88) No. 19 ←→ Chassis ground IGN power supply IGN ON 8 - 16 V
(i88) No. 20 - - -
(i88) No. 21 - - -
(i88) No. 22 GND 2 Always 1 Ω or less
(i88) No. 23 Power unit 1 CAN-L Digital signal; cannot be measured -
(i88) No. 24 Power unit 1 CAN-H Digital signal; cannot be measured -
(i88) No. 25 (G) Chassis CAN-L Digital signal; cannot be measured -
(i88) No. 26 (G) Chassis CAN-H Digital signal; cannot be measured -
(i88) No. 27 - - -
(i88) No. 28 - - -
(i88) No. 29 - - -
(i88) No. 30 - - -
(i88) No. 31 - - -
(i88) No. 32 - - -
(i88) No. 33 (H) Advanced safety CAN-L Digital signal; cannot be measured -
(i88) No. 34 (H) Advanced safety CAN-H Digital signal; cannot be measured -
(i88) No. 35 (J) Vehicle external connection CAN-L Digital signal; cannot be measured -
(i88) No. 36 (J) Vehicle external connection CAN-H Digital signal; cannot be measured -
(i88) No. 37 - - -
(i88) No. 38 - - -
(i88) No. 39 - - -
(i88) No. 40 - - -
Item Contents Standard
DIAG CAN (i88) No. 16 ←→ (i88) No. 17 120.8 Ω
Body CAN (i88) No. 5 ←→ (i88) No. 6 120.8 Ω
(G) Chassis CAN (i88) No. 25 ←→ (i88) No. 26 120.8 Ω
(H) Advanced safety CAN (i88) No. 33 ←→ (i88) No. 34 120.8 Ω
Power unit 1 CAN (i88) No. 23 ←→ (i88) No. 24 120.8 Ω
(I) Power unit 2 CAN (i88) No. 7 ←→ (i88) No. 8 120.8 Ω
(J) Vehicle external connection CAN (i88) No. 35 ←→ (i88) No. 36 120.8 Ω
(J) Vehicle external connection CAN (end terminal) (i88) No. 12 ←→ (i88) No. 13 120.8 Ω
