Brake Booster

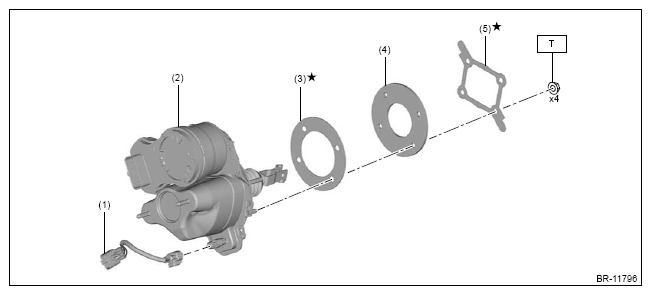

Fig 1: Brake Booster Components Location

G16387108

Courtesy of SUBARU OF AMERICA, INC.

(1)	Adapter cord booster
(2)	Electric booster ASSY
(3)	Gasket A
(4)	Stopper electric booster
(5)	Gasket B

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
