Check Door Lock Actuator And Circuit

Wiring diagram:

Door lock control system Ref. to WIRING SYSTEM>DOOR LOCK CONTROL SYSTEM>WIRING DIAGRAM .

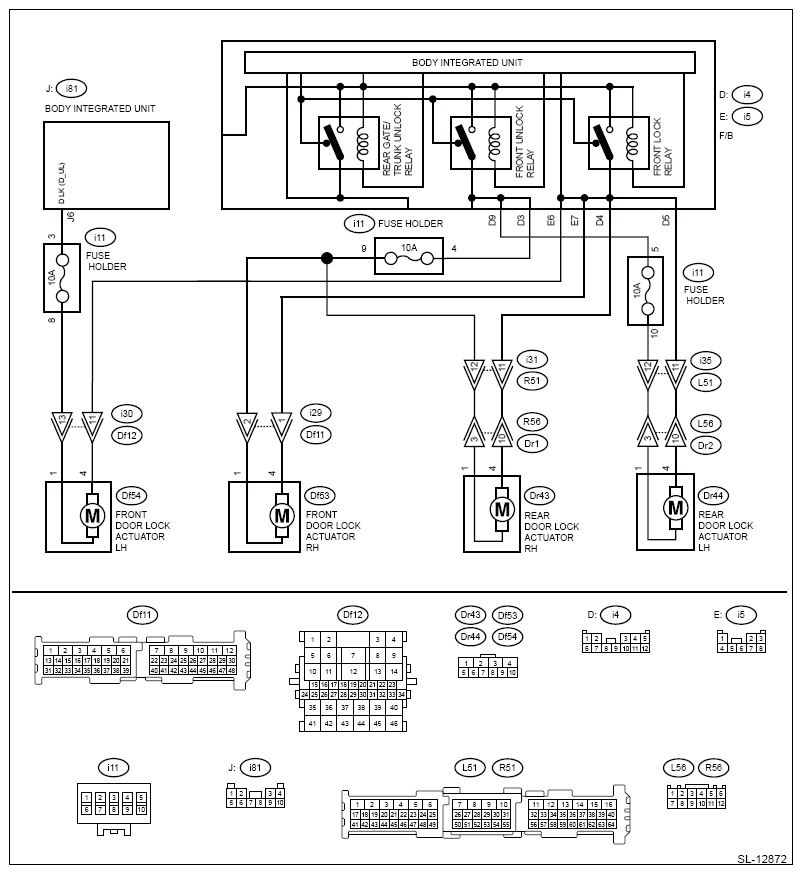

G16386547Courtesy of SUBARU OF AMERICA, INC.

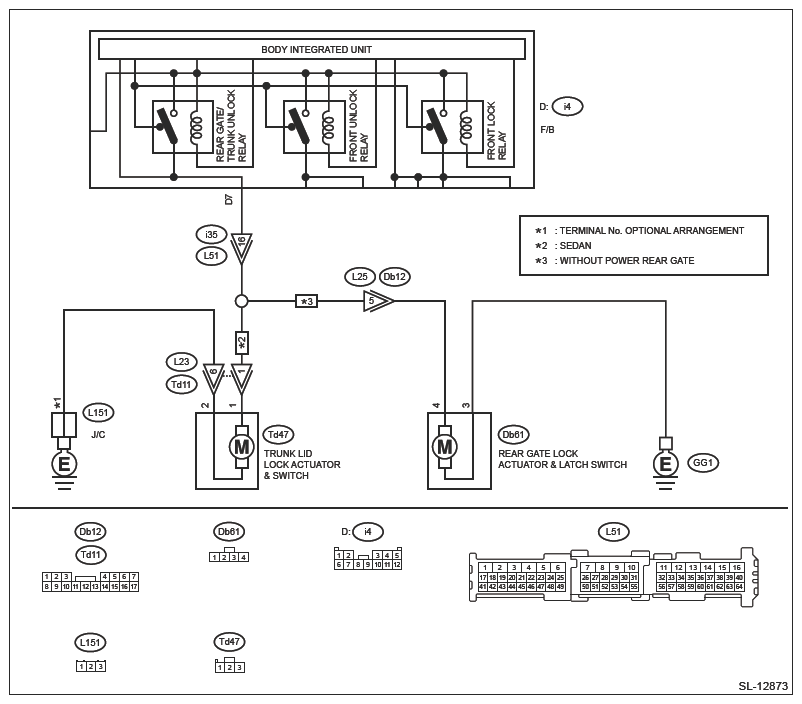

G16386548Courtesy of SUBARU OF AMERICA, INC.
NOTE: For models with power rear gate, refer to "Power Rear Gate System" in the wiring diagram. Ref. to WIRING SYSTEM>POWER REAR GATE SYSTEM>WIRING DIAGRAM .
  1. CHECK HARNESS (DOOR LOCK)  .
    1. Disconnect the body integrated unit and each door lock actuator connector.
    2. Check the harness between body integrated unit and each door lock actuator.

      Connector & terminal

      Front door LH

      (i5) No. 6 - (Df54) No. 4:

      Front door RH

      (i5) No. 7 - (Df53) No. 4:

      Rear door LH

      (i4) No. 5 - (Dr44) No. 4:

      Rear door RH

      (i4) No. 4 - (Dr43) No. 4:

    Is harness normal?

    Yes:  Go to  2.

    No:  Repair or replace the harness.

  2. CHECK HARNESS (DOOR UNLOCK)  .

    Check the harness between body integrated unit and each door lock actuator.

    Connector & terminal

    Front door LH

    (i81) No. 6 - (Df54) No. 1:

    Front door RH

    (i4) No. 3 - (Df53) No. 1:

    Rear door LH

    (i4) No. 9 - (Dr44) No. 1:

    Rear door RH

    (i4) No. 3 - (Dr43) No. 1:

    Is harness normal?

    Yes:  Go to  3.

    No:  Repair or replace the harness.

  3. CHECK HARNESS (TRUNK LID UNLOCK OR REAR GATE UNLOCK)  .

    Check the harness between body integrated unit and trunk lid lock actuator or rear gate lock actuator.

    Connector & terminal

    Trunk lid

    (i4) No. 7 - (Td47) No. 1:

    Rear gate

    (i4) No. 7 - (Db61) No. 4:

    Is harness normal?

    Yes:  Go to  4.

    No:  Repair or replace the harness.

  4. CHECK HARNESS (TRUNK LID UNLOCK OR REAR GATE UNLOCK)  .

    Measure the resistance between connector of trunk lid lock actuator or rear gate lock actuator and chassis ground.

    Connector & terminal

    Trunk lid

    (Td47) No. 2 - Chassis ground:

    Rear gate

    (Db61) No. 3 - Chassis ground:

    Is the resistance less than 10 Ω?

    Yes:  Go to  5.

    No:  Repair or replace the harness.

  5. CHECK BODY INTEGRATED UNIT OUTPUT SIGNAL  .
    1. Connect the body integrated unit connector.
    2. Measure the voltage between terminals of the body integrated unit when operating the door lock switch to LOCK direction.

      Connector & terminal

      Front door LH

      (i5) No. 6 (+) - (i81) No. 6 (-):

      Front door RH

      (i5) No. 7 (+) - (i4) No. 3 (-):

      Rear door LH

      (i4) No. 5 (+) - (i4) No. 9 (-):

      Rear door RH

      (i4) No. 4 (+) - (i4) No. 3 (-):

    Does the voltage change from less than 1 V → 9 V or more? (During lock output)

    Yes:  Go to  6.

    No:  Replace the body integrated unit. Ref. to BODY CONTROL/COMMUNICATION SYSTEM>BODY INTEGRATED UNIT .

  6. CHECK BODY INTEGRATED UNIT OUTPUT SIGNAL  .

    Measure the voltage between terminals of the body integrated unit when operating the door lock switch to UNLOCK direction.

    Connector & terminal

    Front door LH

    (i81) No. 6 (+) - (i5) No. 6 (-):

    Front door RH

    (i4) No. 3 (+) - (i5) No. 7 (-):

    Rear door LH

    (i4) No. 9 (+) - (i4) No. 5 (-):

    Rear door RH

    (i4) No. 3 (+) - (i4) No. 4 (-):

    Does the voltage change from less than 1 V → 9 V or more? (During unlock output)

    Yes:  Go to  7.

    No:  Replace the body integrated unit. Ref. to BODY CONTROL/COMMUNICATION SYSTEM>BODY INTEGRATED UNIT .

  7. CHECK BODY INTEGRATED UNIT OUTPUT SIGNAL  .

    Measure the voltage between body integrated unit and chassis ground when operating the trunk opener switch or the rear gate opener button.

    Connector & terminal

    (i4) No. 7 (+) - Chassis ground (-):

    Does the voltage change from less than 1 V → 9 V or more? (During unlock output)

    Yes:  Go to  8.

    No:  Replace the body integrated unit. Ref. to BODY CONTROL/COMMUNICATION SYSTEM>BODY INTEGRATED UNIT .

  8. CHECK DOOR LOCK ACTUATOR  .

    Check the door lock actuator. Ref. to SECURITY AND LOCKS>DOOR LATCH & DOOR LOCK ACTUATOR ASSEMBLY>INSPECTION .

    Is the door lock actuator OK?

    Yes:  Go to  9.

    No:  Replace the door latch and door lock actuator assembly.

  9. CHECK TRUNK LID LOCK ACTUATOR OR REAR GATE LOCK ACTUATOR  .

    Is the trunk lid lock actuator or the rear gate lock actuator normal?

    Yes:  Check the connection status of the harness and connector that may have a temporary poor contact.

    No:
