Access Buzzer: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the clips, and turn over the mud guard front LH.
    G13622815Courtesy of SUBARU OF AMERICA, INC.

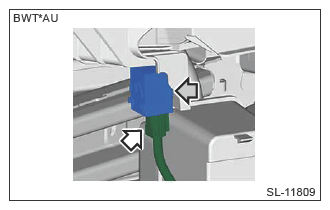

  4. Remove the access buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the access buzzer.
      G13625789Courtesy of SUBARU OF AMERICA, INC.
