Wheel Alignment: Inspection: Camber

Place the tires on the turning radius gauge.
NOTE: Make sure that the ground contact surfaces of the front tires and rear tires are at the same level.

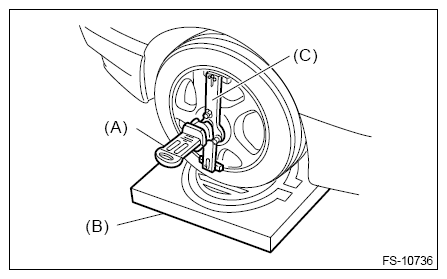

Set the alignment gauge adapter into the center of wheel, and then set the alignment gauge.

Courtesy of SUBARU OF AMERICA, INC.

Measure the camber angle in accordance with the operation manual for alignment gauge.

Model		Front camber inspection value (Difference between RH and LH 45' or less)	Rear camber inspection value (Difference between RH and LH 45' or less)
Impreza model		-0°30'±45'	-1°20'±45'
Crosstrek model	Except for WILDERNESS	-0°05'±45'	-0°55'±45'
Crosstrek model	WILDERNESS	0°10'±45'	-0°25'±45'
