Bushing Rear Front Arm

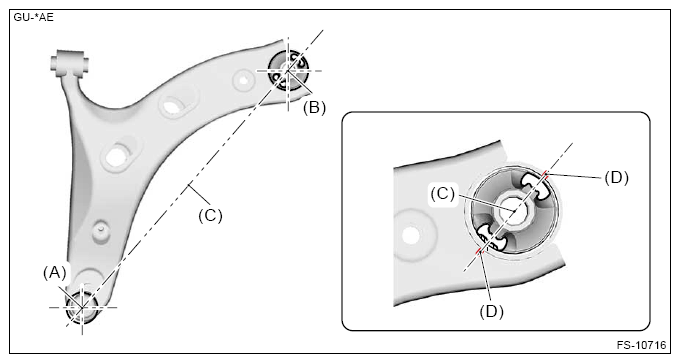

  1. Put alignment marks (D) on the front arm assembly, based on an extended line (C) connecting the center of ball joint (A) and the center of rubber busing front arm rear (B).
    G16762026Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the rubber bushing front arm rear using ST1 and ST2.

    Preparation tool  :

    ST1: REMOVER (20299AG000)

    ST2: BASE (20299AG010)

    G16762027Courtesy of SUBARU OF AMERICA, INC.
    (A) Press
    (B) Arm ASSY front
    (C) Rubber bushing front arm rear
