CROSSTREK Model

NOTE: Components: Ref. to FRONT SUSPENSION>GENERAL DESCRIPTION>COMPONENT>FRONT SUSPENSION .
  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the ball joint COMPL.
    CAUTION:
    • Be careful not to damage the boot of the ball joint.
    • Be careful not to damage the peripheral parts.

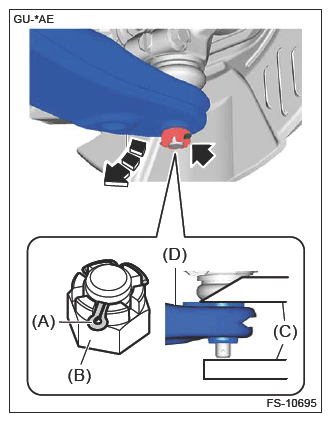

    1. Remove the cotter pin (A).
    2. Remove the castle nut (B).
    3. Use a ball joint puller (C) to detach the front arm assembly (D).
      G16761999Courtesy of SUBARU OF AMERICA, INC.

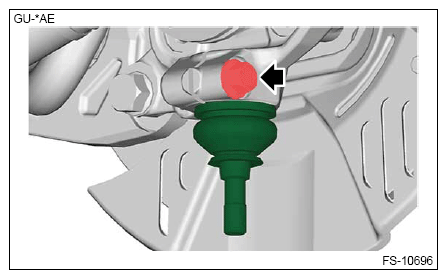

    4. Remove the bolt.
    5. Remove the ball joint COMPL.
      G16762000Courtesy of SUBARU OF AMERICA, INC.
