Electric Power Steering Gearbox: Disassembly

NOTE: When securing the steering gearbox assembly in a vise, secure at the bolt fixing point of the steering gearbox assembly.

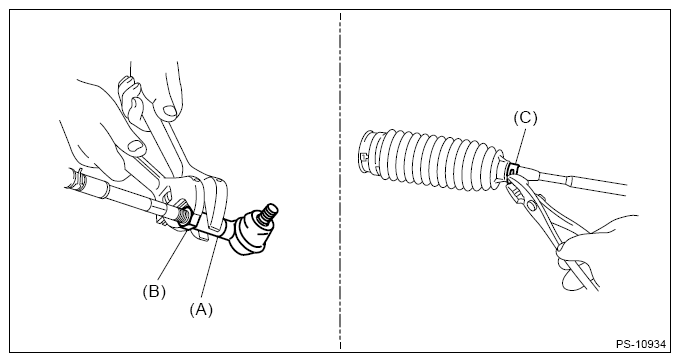

  1. Remove the tie-rod end (A) and lock nut (B) from the steering gearbox assembly.
  2. Using priers, remove the clip boot tie-rod (C) located on the exterior of the steering gearbox boot.
  3. Shift the steering gearbox boot in the direction of the tie-rod side.
    G16763820Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the tie-rod (B) from the gearbox assembly.

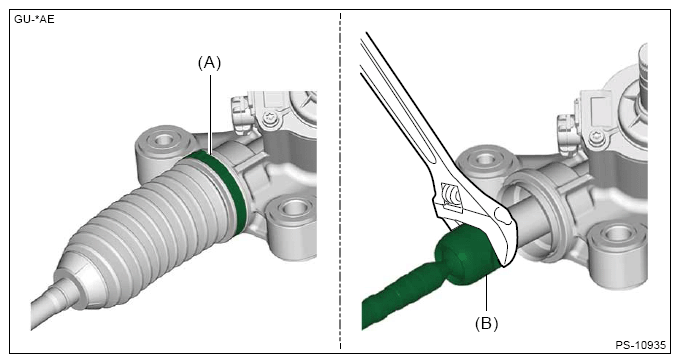

    1. Using a flat tip screwdriver, remove the band boot (A) from the steering gearbox boot.
      NOTE: Replace the steering gearbox boot if there is a crack, damage, or fatigue.
    2. Remove the tie-rod (B).
    G16763821Courtesy of SUBARU OF AMERICA, INC.
