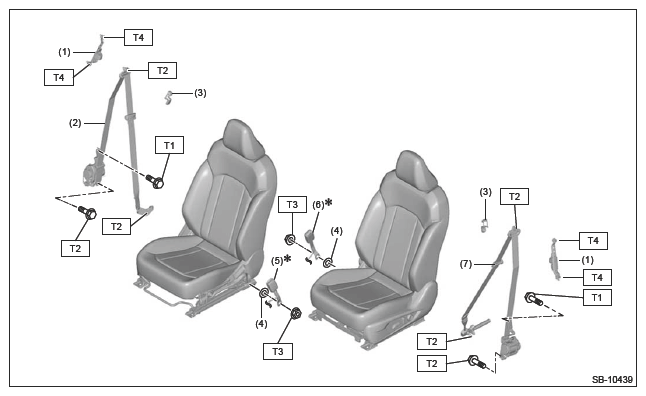

Front Seat Belt
| (1) | Adjuster shoulder anchor |
| (2) | Belt ASSY front OUT RH |
| (3) | Cover shoulder anchor |
| (4) | Spring wave washer |
| (5) | Belt ASSY front INN RH |
| (6) | Belt ASSY front INN LH |
| (7) | Belt ASSY front OUT LH (driver's side with lap belt pretensioner) |
| *: Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN . | |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 30 (3.1, 22.1)
T3: 38 (3.9, 28.0)
T4: 53 (5.4, 39.1)
