Front Exhaust Pipe 1

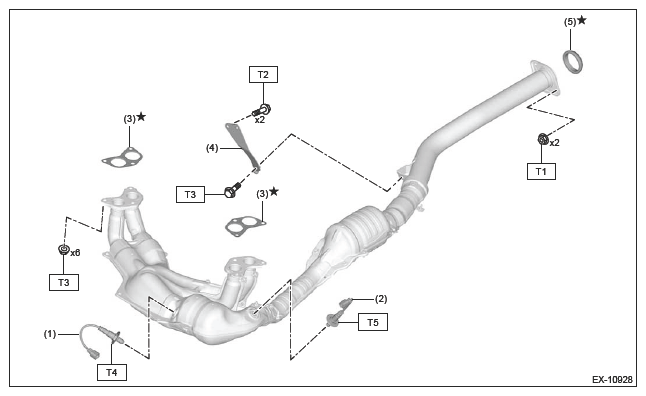

Fig 1: Front Exhaust Pipe 1 Components Location

G16761475

Courtesy of SUBARU OF AMERICA, INC.

(1)	Front oxygen (A/F) sensor
(2)	Rear oxygen sensor
(3)	Gasket
(4)	Hanger bracket
(5)	Gasket

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 23 (2.3, 17.0)

T3 Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>INSTALLATION .

T4 Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FRONT OXYGEN (A/F) SENSOR>INSTALLATION .

T5 Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>REAR OXYGEN SENSOR>INSTALLATION .
